Mercury Mountaineer First Generation (1996 – 2001) – fuse box diagram
Year od production: 1996, 1997, 1998, 1999, 2000, 2001
Passenger compartment fuse panel
Mercury Mountaineer First Generation – fuse box – passenger compartment
| Number |
Ampere rating [A] |
Circuits protected |
| 1 |
7,5 |
Power mirror, power antenna |
| 2 |
7,5 |
High-mount brakelamp |
| 3 |
15 |
Parking lamps |
| 4 |
10 |
Left headlamp |
| 5 |
10 |
Data link connector |
| 6 |
7,5 |
Air bag system, blower relay |
| 7 |
7,5 |
Illumination switches |
| 8 |
10 |
Right headlamp, fog lamp system |
| 9 |
10 |
Autolamps |
| 10 |
7,5 |
Rear blower, speed control, GEM system, brake interlock, overhead console |
| 11 |
7,5 |
Warning lamps |
| 12 |
10 |
Liftgate wiper/washer, front washer |
| 13 |
15 |
Brake on/off switch |
| 14 |
10 |
Anti-lock system |
| 15 |
7,5 |
Air bag system, instrument cluster |
| 16 |
30 |
Wiper run relay |
| 17 |
15 |
Cigar lighter |
| 18 |
15 |
A/C system |
| 19 |
25 |
Ignition coil, PCM system |
| 20 |
7,5 |
Radio, power antenna, GEM system, anti-theft |
| 21 |
15 |
Turn/hazard flasher |
| 22 |
10 |
Turn signals |
| 23 |
10 |
Rear wiper system |
| 24 |
10 |
Anti-theft relay |
| 25 |
7,5 |
Instrument cluster, GEM system |
| 26 |
10 |
4R70W overdrive, DRL system, backup lamps, rear defroster relay |
| 27 |
10 |
Underhood lamp, map lights, glove box lamp, overhead lamp, visor lamps, accessory delay, dimmer switch illumination |
| 28 |
7,5 |
GEM system |
| 29 |
10 |
Audio system |
| 30 |
— |
Not used |
| 31 |
7,5 |
Rear blower motor relay |
| 32 |
7,5 |
Heated rear window |
| 33 |
15 |
DRL module, RH and LH headlamp, instrument cluster |
| 34 |
7,5 |
Luxury audio system |
| 35 |
— |
Not used |
| 36 |
— |
Not used |
Power distribution box

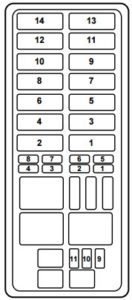

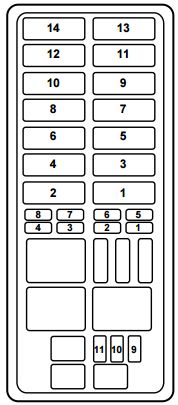

Mercury Mountaineer First Generation – fuse box – power distribution box
| Maxi fuses |
| Fuse |
Amps |
Circuits protected |
| 1 |
30 |
Rear window defrost relay |
| 2 |
30 |
PCM power relay |
| 3 |
20 |
Fuel pump relay, RAP module |
| 4 |
20 |
Headlamps, autolamps, multi-function switch |
| 5 |
30 |
4WABS pump relay |
| 6 |
30 |
4WABS main relay |
| 7 |
20 |
Trailer tow relays |
| 8 |
30 |
Battery saver relay, headlamp relay |
| 9 |
50 |
Blower motor relay, blower motor |
| 10 |
30 |
Power seats, power lumbar, door lock/unlock relays, accessory delay relay |
| 11 |
20 |
Horn relay, Powertrain control module (PCM |
| 12 |
— |
Not used |
| 13 |
60 |
Hazard flasher, brake ON/OFF switch, cigar lighter, power antenna, power mirrors, autolamps, instrument cluster, GEM, radio, blower motor relay |
| 14 |
60 |
Ignition switch |
| Mini fuses |
| Fuse |
Ampere rating [A] |
Circuits protected |
| 1 |
30 |
Premium sound |
| 2 |
15 |
Liftgate wiper relays |
| 3 |
30 |
Auxiliary power |
| 4 |
10 |
Air bag diagnostic monitor |
| 5 |
— |
Not used |
| 6 |
15 |
Generator/voltage regulator |
| 7 |
20 |
Not used |
| 8 |
15 |
Foglamp relay, daytime running lamp module |
| 9 |
— |
Not used |
| 10 |
— |
Not used |
| 11 |
20 |
HEGO system |
Relays

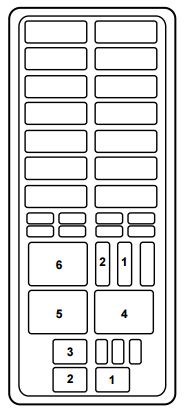

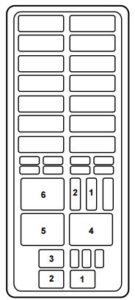

Mercury Mountaineer First Generation – fuse box – relays
| Relay number |
Circuits connected |
| 1 |
Wiper run relay |
| 2 |
Horn relay |
| 3 |
Wiper HI/LO relay |
| 4 |
WOT A/C relay |
| 5 |
PCM power relay |
| 6 |
Fuel pump relay |
| Diode number |
Circuits connected |
| 1 |
ABS diode |
| 2 |
PCM diode |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
