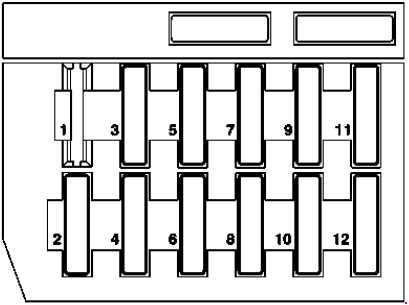

Mercedes-Benz E-Class w210 (1995 – 2002) – fuse box diagram

Mercedes-Benz E-Class w210 (1995 – 2002) – fuse box diagram

Year of production: 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002

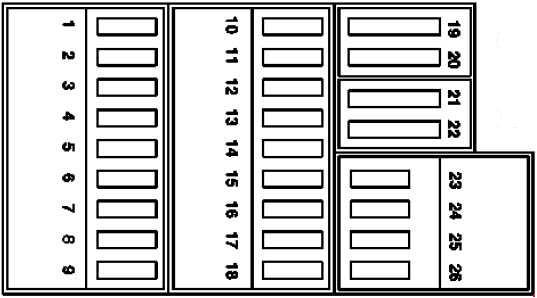

Fuses box in engine compartment

Mercedes-Benz E-Class w210 - fuse box diagram - engine compartment
Mercedes-Benz E-Class w210 – fuse box diagram – engine compartment
No. Fused function A
1 up to 31.5.99: Front cigar lighter 15
2 up to 28.2.97: Spare Garage door opener control unit (USA)
as of 1.3.97 up to 31.5.99: Operating/display unit with control unit (Japan)
7,5
as of 1.6.99:Front cigar lighter 15
3 Combination switch:
Low beam switch
Washer switch with one-touch wiping
Wiper switch
Glove compartment lamp
15
4 Instrument cluster
Automatic heater (HAU), up to 31.5.99:
HEAT pushbutton control unit
Duovalve
Coolant circulation pump
Air conditioning or, for USA, Tempmatic:

Air conditioning pushbutton control unit
Coolant circulation pump
Duovalve
Automatic air conditioning: AAC control and operating module
as of 1.3.97 up to 31.5.99: Operating/display unit with control unit (Japan)
Engines 111, 112, 113 and Electronic-Stability-Program (ESP), as of 1.6.99 up to 31.5.00: Steering angle sensor
10
5 up to 28.2.97: Hazard flasher switch
Left additional turn signal lamp
Rght additional turn signal lamp
as of 1.6.99: Front cigar lighter (when converting from circuit 15R to circuit 30 at customer’s request)
15
6 up to 31.5.99: Front cigar lighter (when converting from circuit 15R to circuit 30 at customer’s request) 15
7 up to 28.2.97:
Instrument cluster
   Automatic heater (HAU):
HEAT pushbutton control unit
Ventilator blower
Fresh air/recirculated air flap switchover valve
   Engine 104, 111:
HFM-SFI control unit via the electronic accelerator (EFP) relay
Taxi version:
 Taximeter
201)
Instrument cluster
Automatic heater (HAU), as of 1.3.97 up to 31.5.99:
HEAT pushbutton control unit
Ventilator blower
Fresh air/recirculated air flap switchover valve
Air conditioning, Tempmatic:
Ventilator blower
Air conditioning pushbutton control unit
Fresh air/recirculated air flap switchover valve
Automatic air conditioning:
AAC control and operating module
Emissions sensor
Engine 104, 111: HFM-SFI control unit via the electronic accelerator (EFP) relay
Taxi version:
 Taximeter
as of 1.3.97 up to 31.5.99: Operating/display unit with control unit (Japan)
15
8 up to 28.2.97:
HEAT pushbutton control unit
Air conditioning pushbutton control unit
AAC [KLA] control and operating module
7,5
9 as of 1.3.97: Electric steering lock control unit 15
10 up to 28.2.97:
Rear-end door wiper motor relay
Washer pump switchover relay
as of 1.3.97 up to 31.5.98: Airbag indicator and warning lamp
7,5
as of 1.6.98:
Airbag indicator and warning lamp
Restraint systems control unit
10
11 Cargo area connector box
Radio (as of 1.6.98)
Radio and navigation control panel (as of 1.6.98)
Navigation processor (as of 1.6.98)
CTEL transmitter/receiver (up to 31.5.99)
Driver seat adjustment relay (as of 1.6.99)
Front passenger seat adjustment relay (as of 1.6.99)
15
12 Front heated seat (HS) control unit
Rear heated seat (HS) control unit
Left front seat belt comfort-fit solenoid
Right front seat belt comfort-fit solenoid
Switch for electric roller blind for rear window (center console)
Rear-end door wiper motor relay (as of 1.6.99)
10
13 Airbag indicator and warning lamp (up to 28.2.97)
Driver-side side airbag sensor
Front passenger-side side airbag sensor
Radio (up to 28.2.97)
Radio and navigation control panel (up to 28.2.97)
Navigation processor (up to 28.2.97)
Restraint systems control unit (as of 1.6.98)
Seat belt emergency tensioning retractor control unit (GUS) with airbag (AB) (as of 1.3.97)
Passenger seat occupied and child seat recognition sensor (as of 1.3.97)
10
14 up to 28.2.97:
Parktronic system control unit
Infrared remote control control unit (IFZ)
7,5
Rear-end door wiper motor relay (as of 1.3.97 up to 31.5.99)
Outside mirror switch with mirror fold-in/fold-out facility
Infrared drive authorization system control unit
Ambulance separation point
Relay for feed-in circuit 15 (as of 1.6.99)
Tire pressure monitor control unit (as of 1.6.99)
Engines 611, 612, 613, as of 1.6.00: Heater booster relay
15 Transmission 722 (up to 28.2.97):
Kickdown shutoff relay (up to 31.5.96)
   Reversing lockout and park pawl blocking solenoid (as of 1.6.96)
Engine 104, 111 (up to 28.2.97):
Purge control valve
Camshaft timing solenoid
Engines 604, 605 up to 31.5.96, Engine 606:
Preglow time-limit relay (up to 28.2.97)
Data link connector, Pin 2 (up to 28.2.97)
Engine 602, 611: Heater booster switch (as of 1.3.97)
Xenon headlamp lamp: Headlamp range adjustment control unit
Parktronic system control unit (as of 1.3.97)
15
16 up to 28.2.97:
Automatic dimming inside rearview mirror
Infrared remote control receiver for inside rearview mirror (up to 31.5.96)
Thermal switch for washer system heating
Outside mirror adjustment up/ down
Outside mirror adjustment to the left/ right
Left/right outside mirror switchover
Left electrically adjustable and heated outside mirror
Right electrically adjustable and heated outside mirror
Left mirror heater
Right mirror heater
Outside mirror switch with mirror fold-in/ fold-out facility
15
as of 1.3.97 up to 31.5.99: Driver-side front door control uni 15
as of 1.6.99: Driver-side front door control unit 20
17 up to 28.2.97:
Steering angle sensor
Data link connector, Pin 3
Infrared remote control control unit (IFZ) (up to 31.5.96)
Infrared drive authorization system control unit (as of 1.6.96)
Engine 606, up to 31.5.96: Data link connector II, Pin 16
10
as of 1.3.97:
STH or heater booster heater unit
Stationary heater timer
Infrared drive authorization system control unit
Engines 602, 611, 612, 613, up to 31.5.00: STH or heater booster heater unit
20
18 as of 1.6.96: Closing feedback relay 15
as of 1.3.97:
Rear driver’s side door control unit
Closing feedback relay (as of 1.6.99)
20
19 Engine 111, as of 1.6.96: Ignition coils 10
Engine 104, as of 1.6.96: Engine 119: Ignition coils (up to 28.2.97)
as of 1.3.97 up to 31.5.99:
Additional air unit relay
Transmission oil fan unit
Additional fan unit for coolant or transmission oil
15
as of 1.6.99:
High-pressure and return pump
ASR/SPS (speed-sensitive power steering)
High-pressure and return pump
ESP, SPS and BAS control unit
40
20 Engine and air conditioning electric suction fan control unit (up to 31.5.99)
with engine 111ME, 112: Engine and air conditioning electric suction fan control unit (as of 1.6.99)
50
Addition fan control unit (as of 1.3.97)
with engine 113, 613: Engine and air conditioning electric suction fan control unit (as of 1.6.99)
30
with engines 611, 612: Engine and air conditioning electric suction fan control unit (as of 1.6.99) 70
21 Spare
22 up to 28.2.97: Combination control unit 30
23 Rain sensor (up to 28.2.97)
CTEL transmitter/receiver
TELE AID control unit (as of 1.3.97 up to 31.5.00)
Emergency call control unit (as of 1.3.97)
Frequency switchover control unit (as of 1.3.97)
CTEL interface (as of 1.3.97)
Portable CTEL D2B interface (as of 1.6.99)
D2B interface Dynamic destination guidance (as of 1.6.99)
Engine 111 with Tempomat and transmission 722, as of 1.6.00: Brake booster vacuum pump control unit
7,5
24 Engine 111 with Tempomat, as of 1.6.00: ME-SFI [ME] control unit 7,5
25 up to 28.2.97:
STH or heater booster heater unit
Stationary heater timer
20
Engine 111 with Tempomat and transmission 722, as of 1.6.00: Brake booster vacuum pump control unit 25
26 Spare

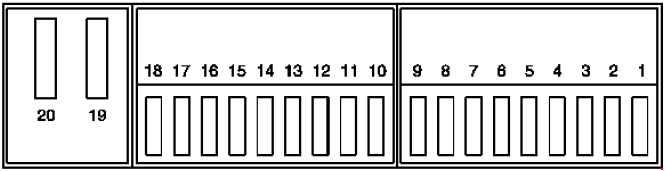

Fuse box below rear seat bench

Mercedes-Benz E-Class w210 - fuse box diagram - rear seat below seat bench
Mercedes-Benz E-Class w210 – fuse box diagram – rear seat below seat bench
No. Fused function A
1 up to 28.2.97:
Multifunction control unit:
Left rear power window motor
Right rear power window motor
30
as of 1.3.97: Passenger-side front door control unit
20
2 up to 28.2.97:
Multifunction control unit:
Driver-side power window motor
Front passenger-side power window motor
30
as of 1.3.97: Rear passenger’s side door control model
3 up to 28.2.97:
Taxi version:

    Left rear dome lamp
    Right rear dome lamp
     Rear interior lamp
Model 210.2:
   Left D-pillar interior lamp
     Right D-pillar interior lamp
    Trunk lid ambient lamp
Model 210.0/6:
   Trunk lid ambient lamp
   Combination control unit
Interior illumination:
    Front dome lamp (with shut-off delay and front reading lamp)
Rear interior lamp
Trunk lamp
Left front door entry/exit lamp
Right front door entry/exit lamp
Front deluxe seats, incl. seat heating and seat ventilation (as of 1.6.99):
Left front seat ventilation blower regulator
Right front seat ventilation blower regulator
15
as of 1.3.97:
Lower control panel control unit
Rear interior lamp
   Models 210.0, 210.6:
Trunk lamp
   Model 210.2:
Left D-pillar interior lamp
Right D-pillar interior lamp
   Taxi version:
Left rear dome lamp
Right rear dome lamp
Rear interior lamp
Interior lights amplifier control unit (model 210.2 only)
7,5
4 Glass version of electric sliding/tilting roof (up to 28.2.97):
Tilting/sliding roof
Sliding/tilting roof switch
25
as of 1.3.97: Overhead control panel control uni 25
5 Pneumatic system equipment with combined functions
Anti-theft alarm system (ATA):
Alarm signal horn, via pneumatic control unit with combined functions
Radio (with additional internal 10A fuse – as of 1.6.99)
Auto pilot system (APS):
Radio and navigation control panel
Navigation processor
CD changer:
CD player with changer (in luggage compartment), via radio or radio and navigation control panel
Communication/navigation system (CNS) (as of 1.3.97):
Receiver and amplifier (in luggage compartment)
COMAND operating and display system (as of 1.6.99):
COMAND operating, display and control unit
Antenna booster Bottom left rear window
25
6 up to 28.2.97:
Model 210.2:
 Tailgate closing assist
20
as of 1.3.97:
   Engine 111, 112, 113: Fuel pump, via fuel pumps relay
25
7 up to 28.2.97:
Left and right outside mirror with memory
:
Combination control unit
Outside mirror adjustment up/ down
Outside mirror adjustment to the left/ right
Left/right outside mirror switchover
Memory package (driver seat, steering column, mirrors):
Steering column adjustment motor, via multifunction control unit
30
as of 1.3.97:
Model 210.2: Rear-end door closing assist
20
8 Memory package (driver seat, steering column, mirrors), left hand drive vehicle (LHD) only:
Left front seat adjustment control unit with memory
Vehicle with partially electric seat adjustment (as of 1.6.99):
Driver-side partially electric seat adjustment motor group
25
9 Memory package (driver seat, steering column, mirrors), left hand drive vehicle (LHD) only:
Left front seat adjustment control unit with memory
Vehicle with partially electric seat adjustment (as of 1.6.99):
Front passenger partially electric seat adjustment motor group
25
10 Refrigerator box (customer’s request)
Interior monitoring (with ATA only) (up to 28.2.97):
Left interior motion sensor transmitter and receiver unit, infrared (IR)
Right interior motion sensor transmitter and receiver unit, infrared (IR)
Anti-theft alarm system (ATA) (up to 28.2.97):
ATA inclination sensor
Information and communication system, with Japanese version (as of 1.3.97 up to 31.5.99):
CD player with changer (in trunk)
Antenna amplifier voltage supply
TV tuner
Navigation processor
Relief relay, circuit 15
COMAND operating and display system (as of 1.6.99):
TV tuner
10
11 as of 1.3.97 up to 31.5.99:
Anti-theft alarm system (ATA):
Alarm signal horn with additional battery
ATA inclination sensor (only USA)
   Level control at rear axle with ADS, or Electronic Stability Program (ESP), with engines 112, 113 and 606:
Steering angle sensor
   Interior monitoring (with ATA only):
ATA inclination sensor
Left interior motion sensor transmitter and receiver unit, infrared (IR)(210.2)
Right interior motion sensor transmitter and receiver unit, infrared (IR) (210.2)
Interior motion sensor transmitter and receiver unit (210.0, 210.6 only)
as of 1.6.99:
   USA version:
Trunk lid emergency release switch (models 210.0, 210.6 only, as of 1.6.00)
   Electronic Stability Program (ESP):
Steering angle sensor
   Interior monitoring (with ATA only):
Interior motion sensor transmitter and receiver
ATA inclination sensor
7.5
12 13-pin trailer hitch socket, PIN 9 25
13 Electrically adjustable front passenger seat with memory, on left hand drive vehicle (LHD):
Right front seat adjustment control unit with memory
Left front seat adjustment control unit with memory
25
14 Electrically adjustable front passenger seat with memory, on left hand drive vehicle (LHD):
Right front seat adjustment control unit with memory (N32/2)
25
15 Taxi version (up to 28.2.97):
Roof symbol light
Roof sign switch
Dynamic navigation system, (as of 1.3.97 up to 31.5.98):
Traffic data recorder
MB/D network portable CTEL (up to 31.5.98):
CTEL transmitter / receiver, also with AMPS network for USA
Telephone interface, with AEG portable CTEL
Information/communications system (ICS) (as of 1.3.97 up to 31.5.99):
Telephone connector, circuit 15C (only Japan)
Dynamic navigation system with MB/D network portable CTEL (D2B) (as of 1.3.97):
D2B interface Dynamic destination guidance
Dynamic navigation system with network portable CTEL (D2B) (as of 1.3.97):
Portable CTEL D2B interface
Telephone interface
MB cellular telephone standard (as of 1.6.00):
Cellular telephone transmitter and receiver unit, D2B
Telephone preinstallation D network portable CTEL (as of 1.3.97):
CTEL interface
MB portable CTEL, (as of 1.6.00):
CTEL interface
E-net compensator
D network portable CTEL (D2B) (as of 1.3.97 up to 31.5.00):
Portable CTEL D2B interface
TELE AID emergency call system (D2B) (as of 1.3.97):
TELE AID control unit
EMERGENCY CALL emergency call system with USA version or Japanese version (as of 1.3.97):
Emergency call control unit
Voice control system (VCS):
CTEL transmitter / receiver (up to 31.5.98)
Voice control system control unit (as of 1.6.98)
D2B-Portable CTEL interface (up to 31.5.00)
Tire pressure monitor (as of 1.3.97):
TPM [RDK] control unit
7.5
16 Sound system:
Amplifier for sound system
25
17 up to 28.2.97:
Electric heated seats for left and right rear seat:
 Rear heated seat (HS) control unit
25
as of 1.3.97:
Electric heated seats for left and right rear seat:
 Rear heated seat (HS) control unit
20
18 Left and right front heated seats: Front heated seat (HS) control unit 20
19 Pneumatic system equipment with combined functions
Rear window defroster
Functions of central locking
Functions of anti-theft alarm system
Functions of interior motion sensor and towing sensor
40
20 as of 1.3.97:
Government vehicles, feed-in of fuses:
Maxi Fuse box I, right rear wheelhouse, (police)
Feed-in relay, circuit 15
Fuse box II, right rear wheelhouse, (police)
Taxi version:
Taxi fuse box (voltage supply)
40

Fuse box on light module (left-hand steering)

Mercedes-Benz E-Class w210 - fuse box diagram - on light module (left-hand steering)
Mercedes-Benz E-Class w210 – fuse box diagram – on light module (left-hand steering)
No. Fused function A
1 Not used
2 Stop lamp switch
Cruise control
15
3 Right high beam
High beam indicator lamp
7.5
4 Reverse lamp
Turn signal lamp
Rear wiper control (model 210 T-model)
Rearview mirror dimming control
Parking aid control
15
5 Left high beam 7.5
6 Right low beam 15
7 Front right parking light
Right taillamp
7,5
8 Left low beam 15
9 Left fog lamp Right fog lamp 15
10 Front left parking light
Left taillamp
7,5
11 License plate lamp
Instrument illumination
Symbol illumination
Automatic headlamp range control
7.5
12 Rear fog lamp 7.5

Fuse box on light module (right-hand steering)

Mercedes-Benz E-Class w210 - fuse box diagram - on light module (right-hand steering)
Mercedes-Benz E-Class w210 – fuse box diagram – on light module (right-hand steering)
No. Fused function A
1 Left fog lamp Right fog lamp 15
2 Rear fog lamp 7.5
3 Right front parking lamp
Right taillamp
7.5
4 Left front parking lamp
Left taillamp
7.5
5 Left high beam 7.5
6 License plate lamp
Instrument illumination
Symbol illumination
Automatic headlamp range control
7.5
7 Right high beam
High beam indicator lamp
7.5
8 Left low beam 15
9 Stop lamp
Cruise control
15
10 Right low beam 15
11 Not used
12 Reverse lamp/turn signal lamp
Rear window wiper control (model 210 T-model)
Rearview mirror dimming control
Parking aid control
15

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Liked it? Take a second to support admin on Patreon!
