Mercedes-Benz C280 (1998) – wiring diagrams – body control
Year of productions: 1998
Body control

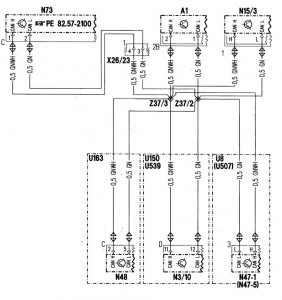

Version 1

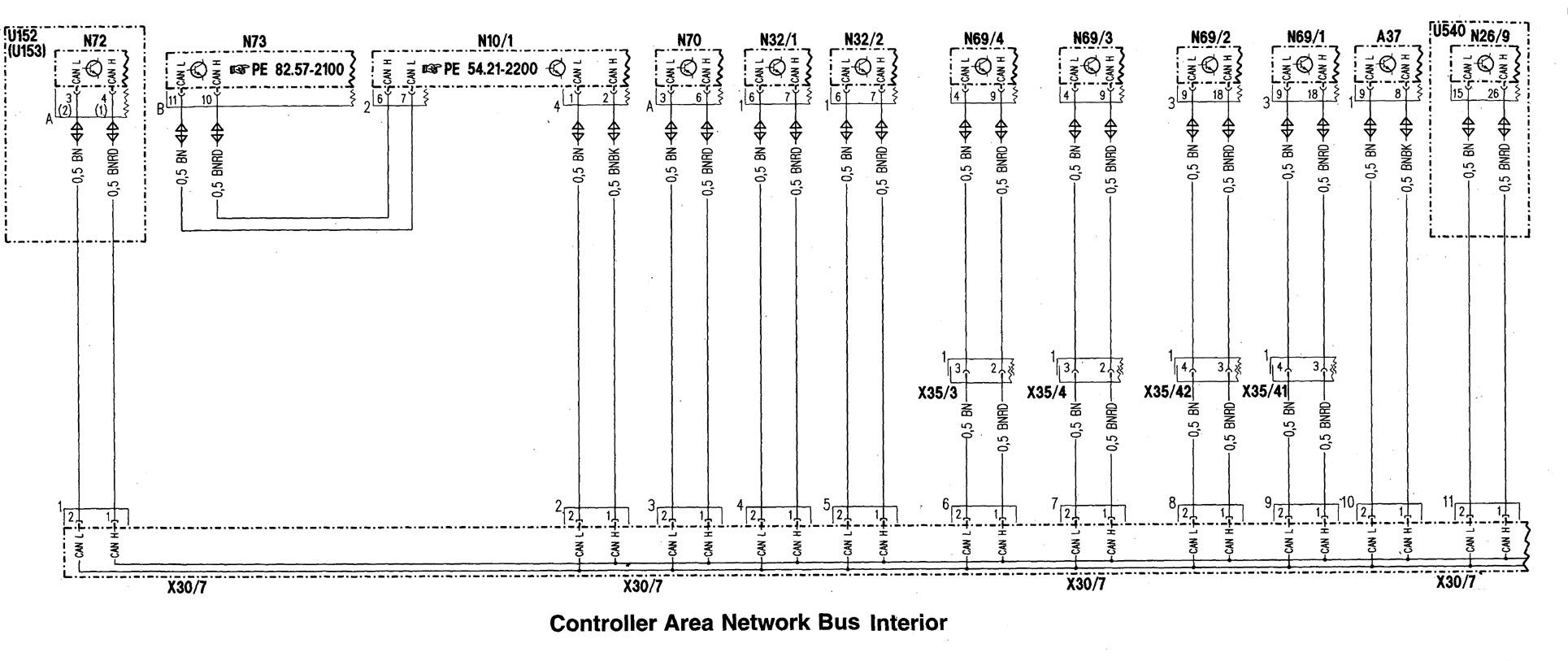

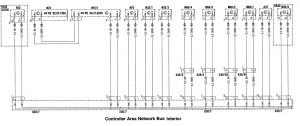

Version 2
| A37 | PSE control module |
| N10/1 | Signal pickup- and activation module (SAM) left front |
| N26/9 | Special vehicles multi-function control module (MF-C) |
| N32/1 | Left front ESA control module (with memory) |
| N32/2 | Right front ESA control module (with memory) |
| N69/1 | Front driver-side door control module |
| N69/2 | Front passenger-side door control module |
| N69/3 | Rear driver-side door control module |
| N69/4 | Rear passenger-side door control module |
| N70 | Roof control panel control module |
| N72 | Lower control field control module |
| N73 | Electronic ignition lock control module |
| U152 | Valid for mo.d el202 |
| U153 | Valid for model 208 |
| U540 | Valid for armored vehicle |
| X30/7 | Star-point coupler databus (CAN) tie-in connector |
| X35/3 | Left rear door separation point |
| X35/4 | Right rear door separation point |
| X35/41 | Left front door separation point |
| X35/42 | Right front door separation point |
Version 3
| N10/1 | Signal pickup- and activation module (SAM) left front |
| N73 | Electronic ignition lock control module |
| W1 | Main ground (behind instrument cluster) |
| X4 | Terminal block (circuit 30, left footwell) |
| X30/7 | Star-point databus (CAN) tie-in connector |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
