Mercedes-Benz C Class w203 AMG  (C260 Sport 2006) – fuse box diagram

Mercedes-Benz C Class w203 AMG  (C260 Sport 2006) – fuse box diagram



Fuses description

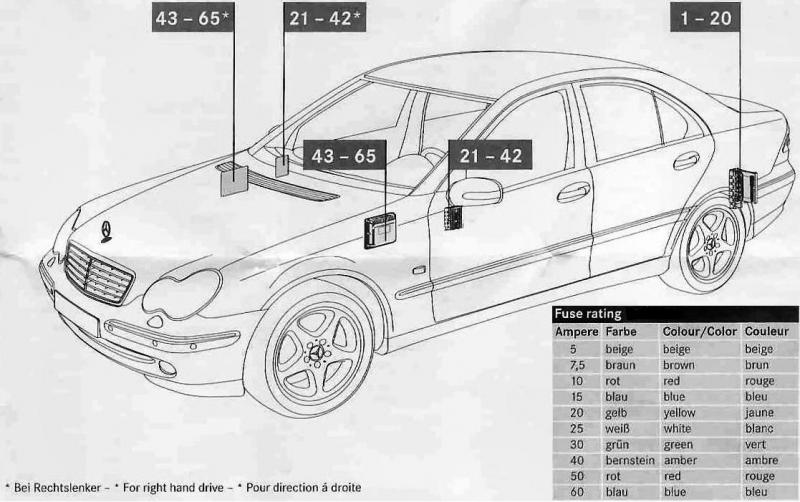

Mercedes C Class c260 sport (2006) - fuse box location
Mercedes C Class c260 sport (2006) – fuse box location

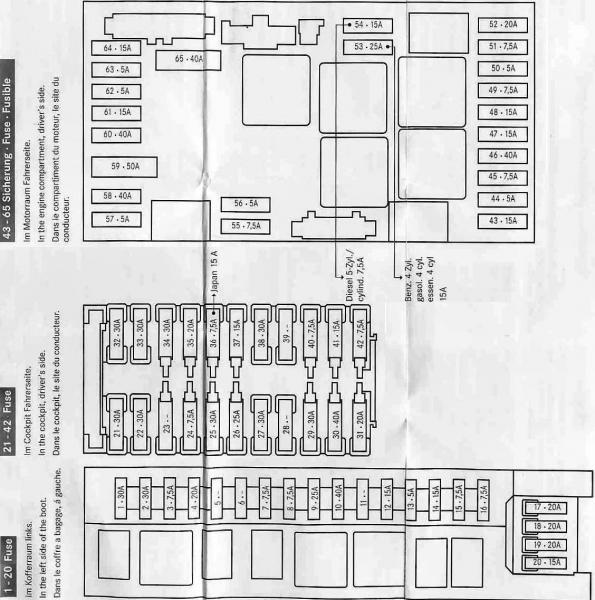

Mercedes C Class c260 sport (2006) - fuse box diagram
Mercedes C Class c260 sport (2006) – fuse box diagram
Function Fuse no.
ABS 56,59,60,62
Active head restraint 7
Airbag warning lamps 41,42,45,49
Airbag/side airbag control unit 45,49
Air-conditioner (SE) 41,51
Anti-theft alarm (SE) 8,9,41
Automatic heater system 41
Auxiliary heater (SE) 35
Blower motor (heater/AC) 30,41
Brake lights 62
CD changer 24
Central locking electronic
Central locking – unterior switch 41
Cigar lighter 47
COMAND (SE) 64
Convenience locking 8,9,21,22,32,33
Courtesy lights (SE) 21,22
Diagnostic socket 62
Dome lights 3,9
Electronic stability program 55,56,57,59,60,62
Engine electronics 48,53,54
Engine emergency stop 53,54
Engine fan 51
Engine residual heat syst. (SE) 30,41,51
Fanfare 43
Fog loamps electronic
Fuel fliter flap unlocking 15
Fuel pump 4
Garage door opener (SE) 9
Glove compartment light 47
Hazard warning flasher 41
Hazard warning flasher 41
Headlamp flasher electronic
Headlamp range adjust. (SE) 51
Headlamp washer system (SE) 63
Heated rear window 10,41
High beam, high beam tell-tale electronic
Instrument cluster 42
Language controlsystem (SE) 13,16
License plate illumination electronic
Locking check-back electronic
Low beam 62,63
Make-up mirror (SE) 9
Mirror adjustment 21,22,63
Mirror automatic dimming (SE) 9,21
Mirror folg-in feature (SE) 21,22,63
Mirror heated 21,22
Multi-contour backrest (SA) 13,19
Multi-function steering wheel electronic
Navigation system (SE) 13,19
Parking lamps/tail lamps electronic
Parktronic system (SE) 13,41
Power socket (SE) 12,20
Power socket, boot (SE) 12
Power window, front 21,22
Power window, rear 21,32,33
Radio 64,36
Rain sensor (SE) 9
Rear fog light electronic
Rear head release 41
Rear windscrren washer system 14,41
Remote boot/trunk release 8,21
Reversing lamps electronic
Satellite radio 16
Seat adjustment, driver 2,21,29
Seat adjustment, passemger 1,22,34
Seat heater (SE) 25,41
Sound system (SE) 26
Start enable 31,52,57
Steering lock 31
Steering wheel adjustment (SE) 2,21,27,[29 sp.-coupe]
Sun blind for rear window (SE) 20,41
Switch illumination 9,21,22,32,33,41,50
TeleAid (SE) 40,44
Telephone system (SE) 13,16,40,44,36
Tilting/sliding roof (SE) 9
Trailer lights (SE) 17
Trailer, power supply (SE) 18
Transmission electronics (SE) 55,58,61
Turn signal, t. s. indicator lamp electronic
Windscreen washer pump electronic
Windscreen wipers 46



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
