Mercedes-Benz 560SEC (1990 – 1991) – wiring diagrams – starting

Mercedes-Benz 560SEC (1990 – 1991) – wiring diagrams – starting

Year of productions:  1990, 1991

Starting

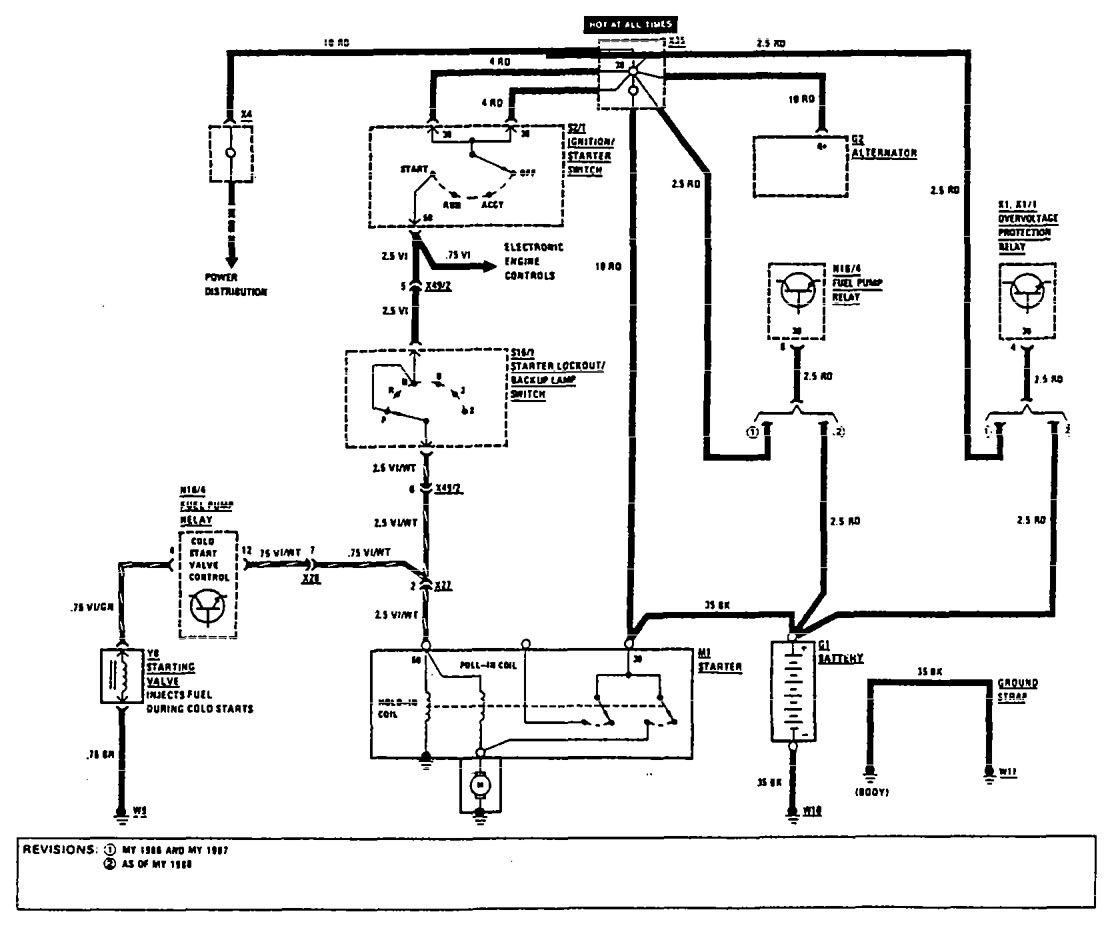

Mercedes-Benz 300SE - wiring diagram - starting

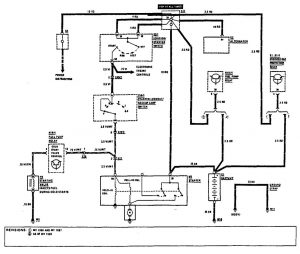

Mercedes-Benz 560SEC – wiring diagram – starting

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
