Mercedes-Benz 500SEL (1992 – 1993) – wiring diagrams – interior lighting
Year of productions: 1992, 1993

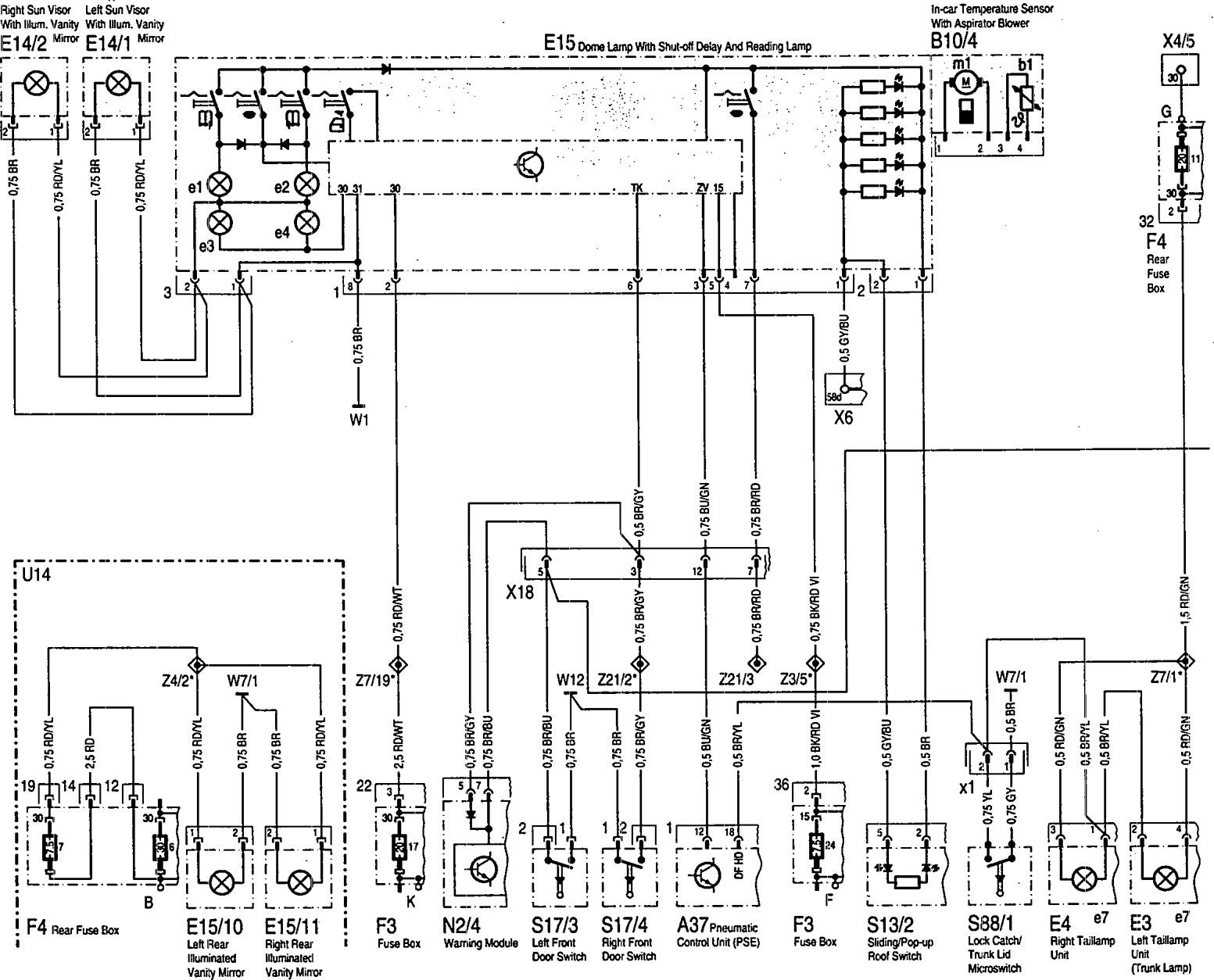

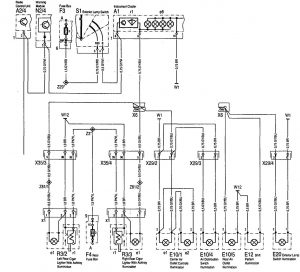

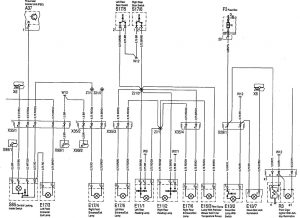

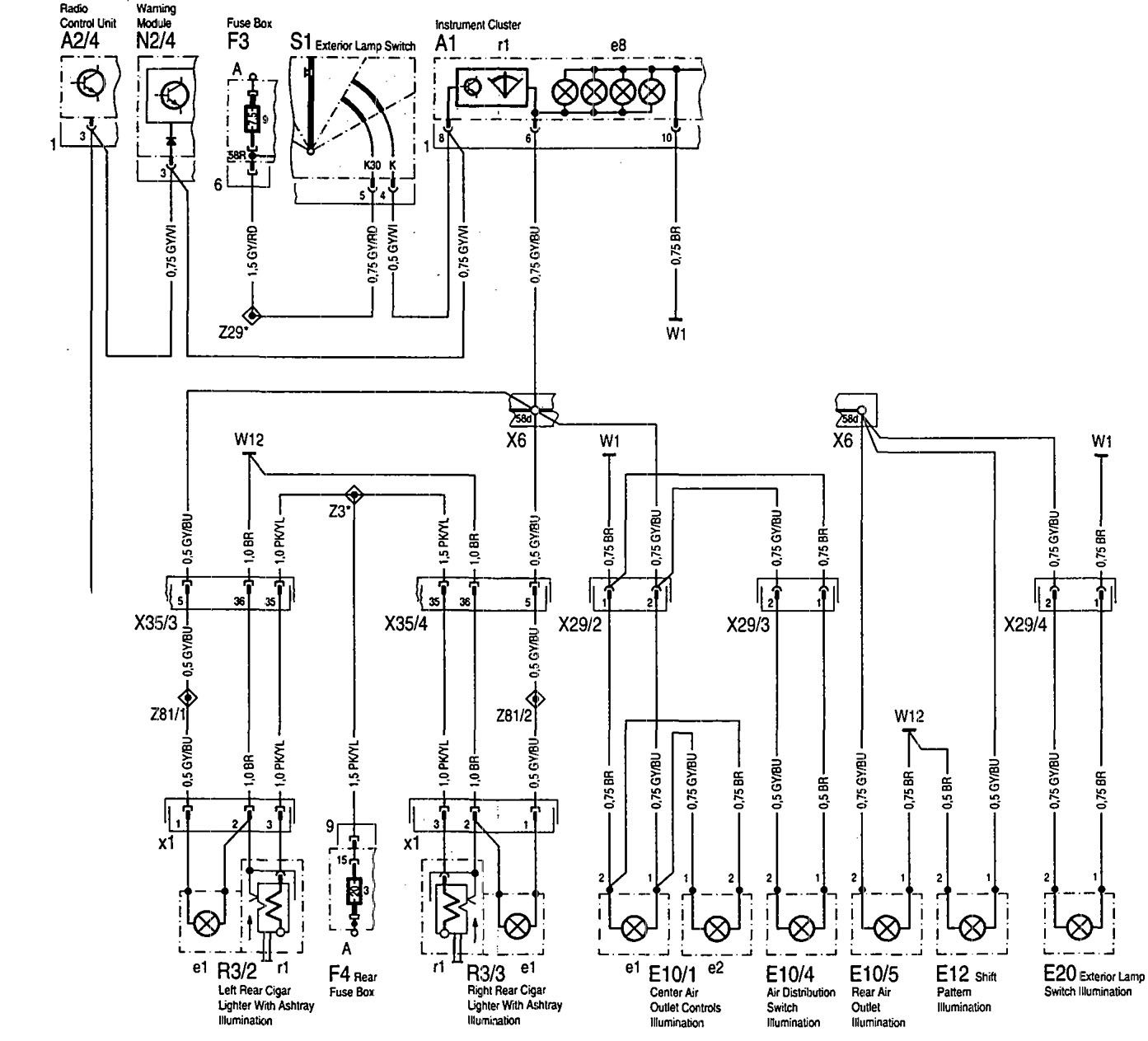

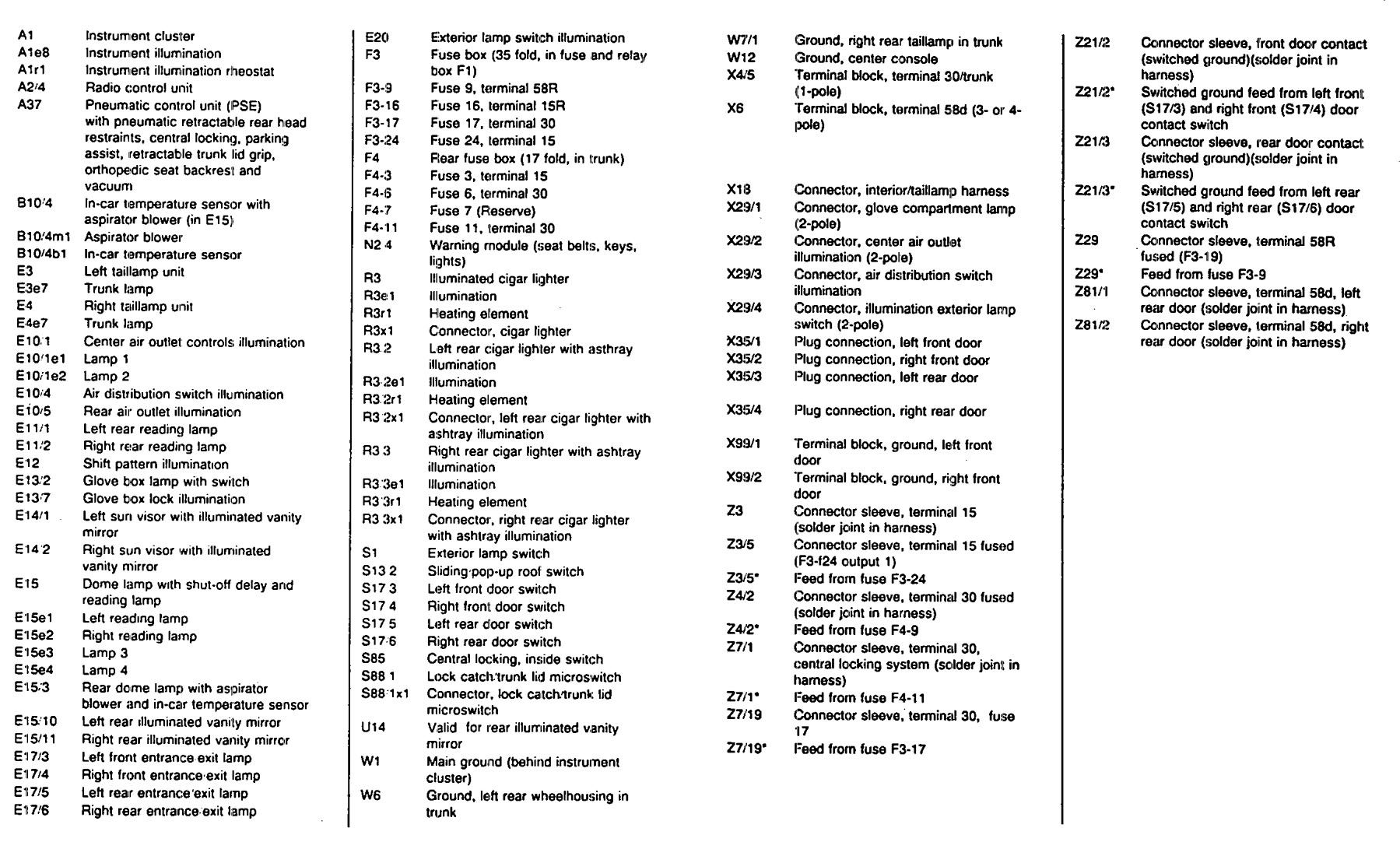

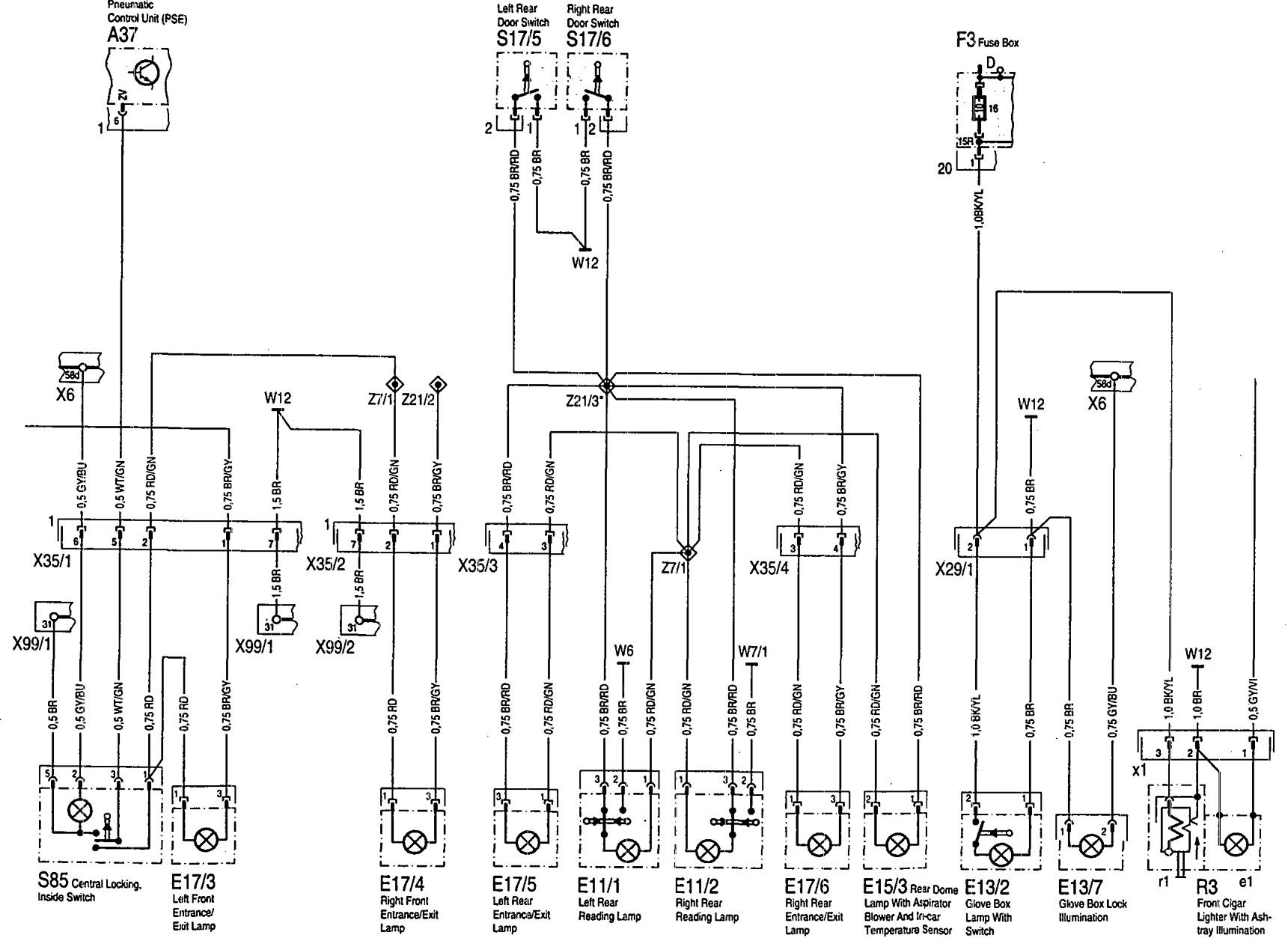

Interior lighting
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
