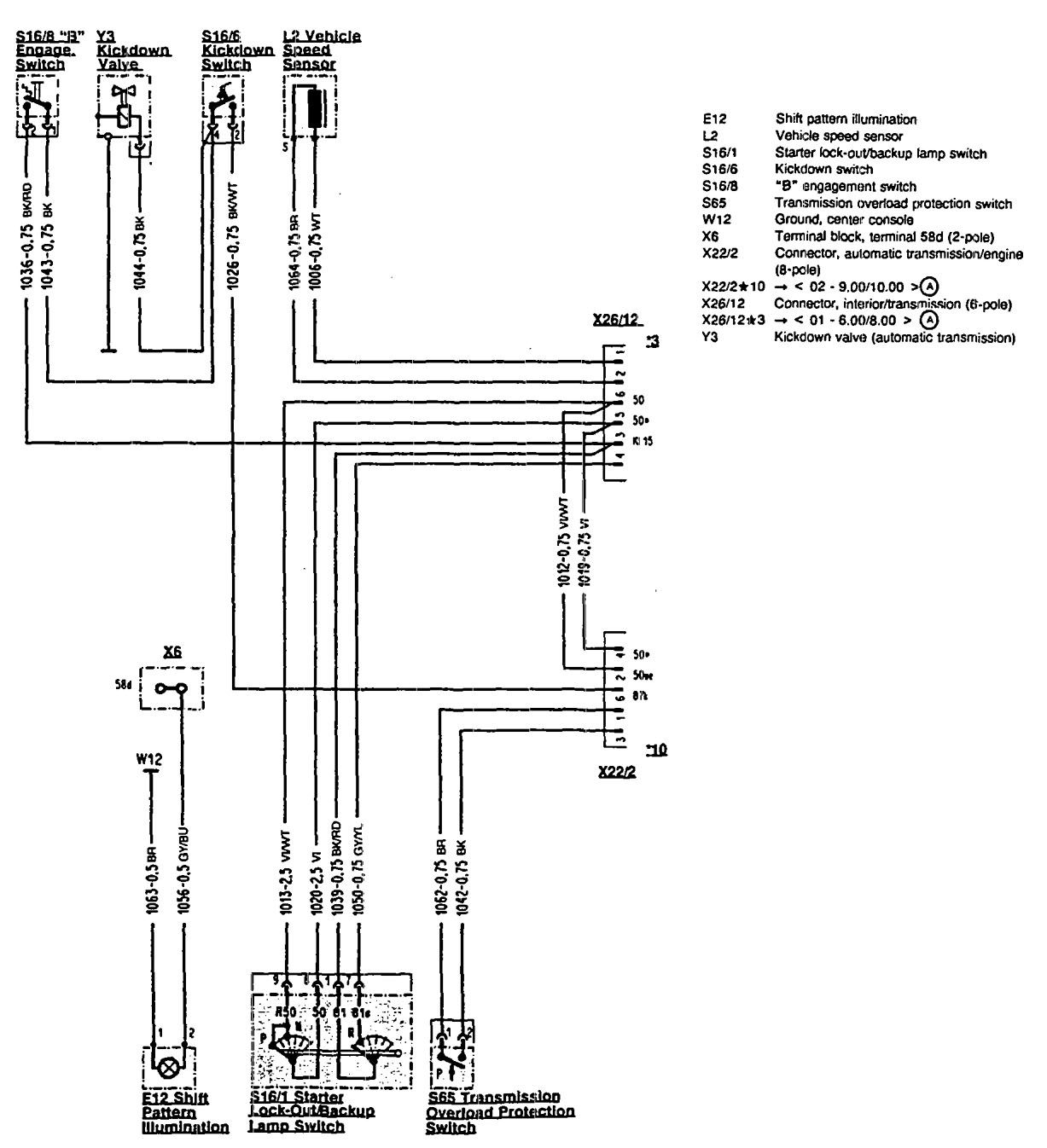

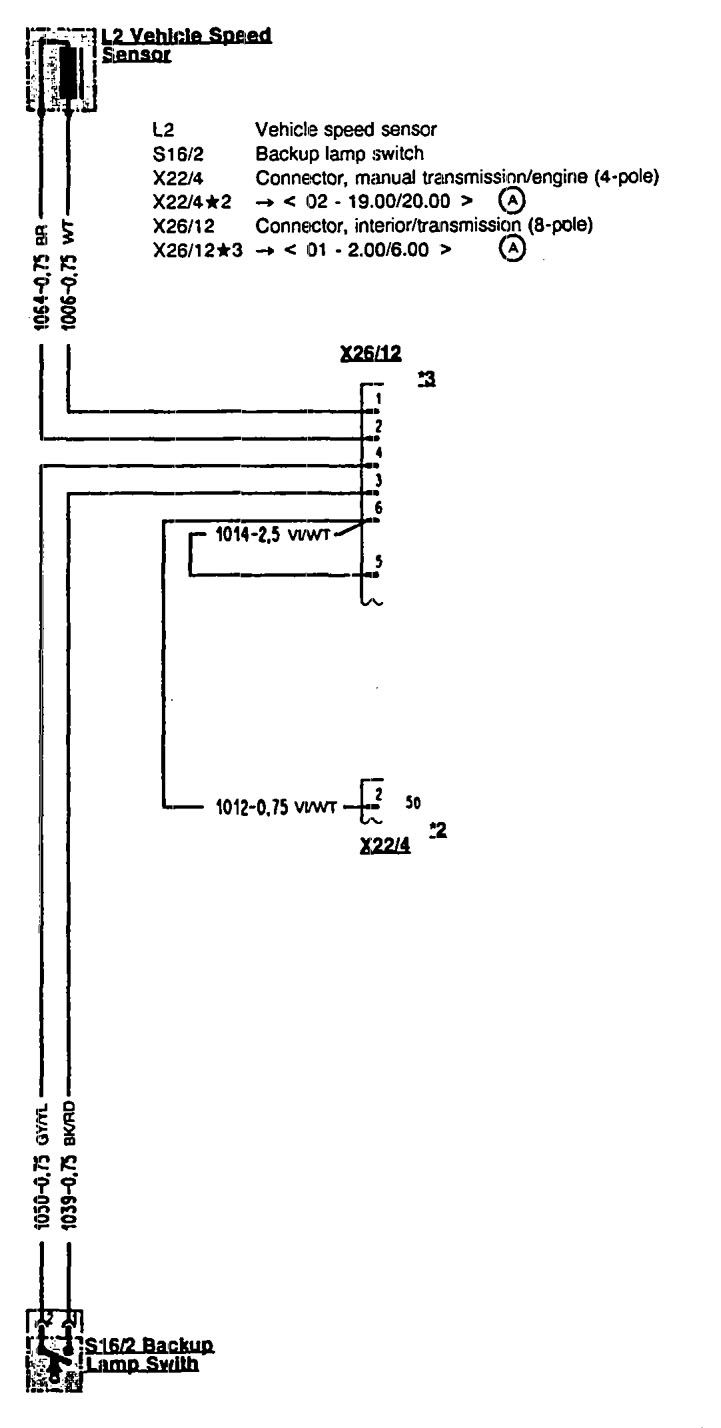

Mercedes-Benz 300SL (1990 – 1993) – wiring diagrams – transmission controls

Volvo 850 (1996 – 1997) – wiring diagrams – license plate lamp Year of productions:  1996, 1997 License plate lamp WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, […]

Acura TL (2003 – 2005) – wiring diagrams – rear window defogger Year of productions:  2003, 2004, 2005 Rear window defogger WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment […]

Acura TL (2007 – 2008) – wiring diagrams – speed control Year of productions:  2007, 2008 Speed control WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and […]
