Mercedes-Benz 190 SL – fuse box diagram

31 July 2019 admin 190SL, Mercedes-Benz 0

Mercedes-Benz 190 SL – fuse box diagram

Year of production:

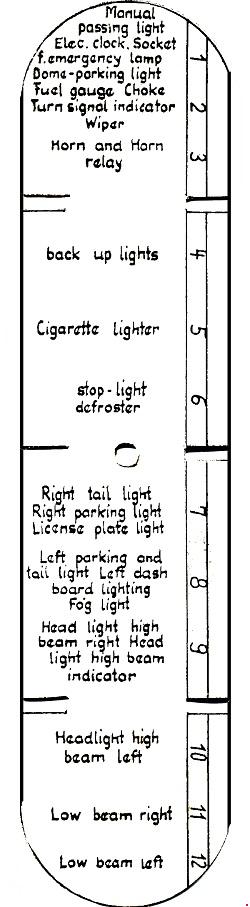

Fuse box diagram

Mercedes-Benz 190 SL - fuse box diagram
Mercedes-Benz 190 SL – fuse box diagram

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
