Mazda Sport 3 (2011) – fuse box diagram

Mazda Sport 3 (2011) – fuse box diagram

Year of production: 2011

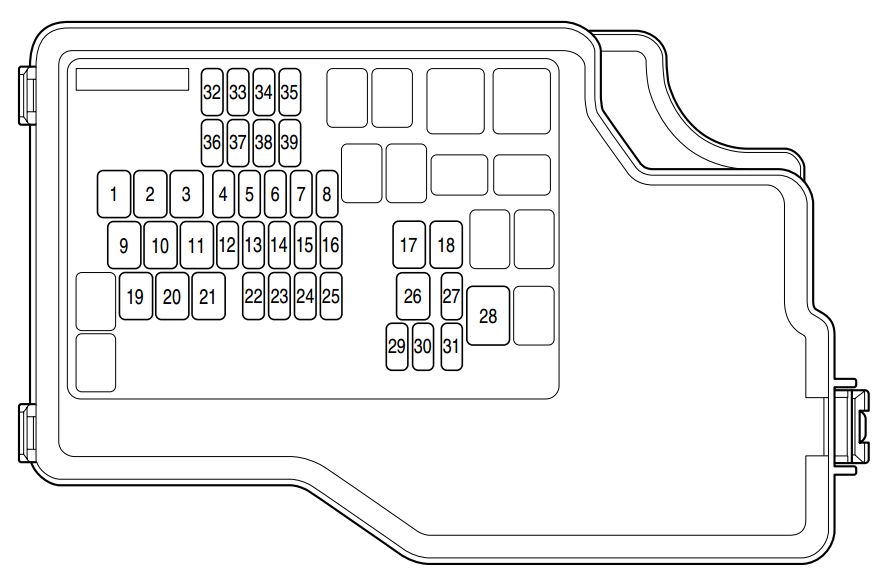

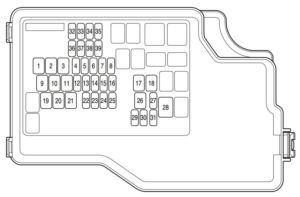

Fuse block (Engine compartment)

Mazda 3 - fuse box - engine compartment
Mazda 3 – fuse box – engine compartment
Position Description Fuse rating [A] Protected component
1 FAN 2 40 Cooling fan*
2 ENG MAIN 40 Engine control system
3 BTN 1 50 For protection of various circuits
4 A/C MAG 7,5 Air conditioner
5 H/L HI 20 Headlight high beam
6 FOG 15 Fog lights*
7 H/L WASH
8 SUNROOF 15 Moonroof*
9 F.DEF RH
10 F.DEF LH
11 FAN 1 40 Cooling fan
12 ROOM 15 Interior lights
13 TCM 15 TCM*
14 DSC 20 Dynamic Stability Control system*
15 BTN 2 7,5 For protection of various circuits
16 AT PUMP
17 HEATER 40 Air conditioner
18 INJ 30 Injector*
19 R.DEF 30 Rear window defroster
20 IGKEY 2 40 For protection of various circuits
21 IGKEY 1 40 For protection of various circuits
22 HORN 15 Horn
23 STOP 15 Brake lights
24 ENG+B 10 Engine control system
25 FUEL PUMP 25 Fuel system
26 ABS 40 ABS
27 SEAT WARM 20 Seat warmer*
28 EHPAS 80 Electro-Hydraulic Power Assist Steering
29
30 ABS IG 7,5 ABS
31 SWS 7,5 Air bag
32 H/L LO RH 15 Headlight low beam (RH)
33 H/L LO LH 15 Headlight low beam (LH)
34 ILLUM 7,5 Dashboard illumination
35 TAIL 15 Tail lamp
36 ENG INJ 15 Engine control system
37 ENG BAR 15 PCM
38 ENG BAR 2 20 PCM
39 ETV 15 Electric throttle valve
* Some models

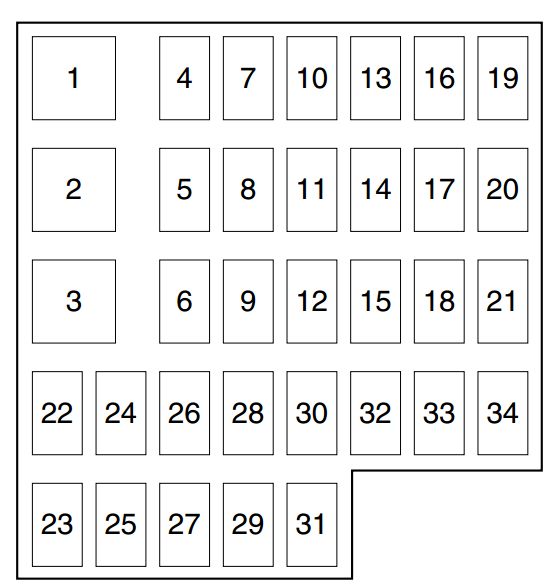

Fuse block (Passenger’s side)

Mazda 3 - fuse box - passenger's side
Mazda 3 – fuse box – passenger’s side
Position Description Fuse rating [A] Protected component
1 BOSE 30 Bose® Sound System-equipped model*
2 P30 SEAT 30 Power seat*
3 P.WIND 30 Power window
4 D LOCK 25 Door lock motor
5
6
7 ESCL
8 SAS 15 Air bag
9
10 HAZARD 15 Hazard warning flashers
11 METER 15 For protection of various circuits
12 OUTLET 15 Accessory sockets
13 R WIPER 15 Rear wiper*
14 CIGAR 15 Lighter
15
16 HEATER 10 Air conditioner
17 MIRROR 10 Power control mirror
18 ST SIG 10 Starter sig
19
20 AUDIO 7,5 Audio system
21 M.DEF 7,5 Mirror defroster*
22 AFS 7,5 Adaptive Front-Lighting System*
23
24 ENG 20 Engine control system
25
26
27
28
29
30 P.WIND 25 Power window
31
32 F WIPER 25 Windshield wiper and washer
33
34
* Some models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
