Engine compartment fuse box

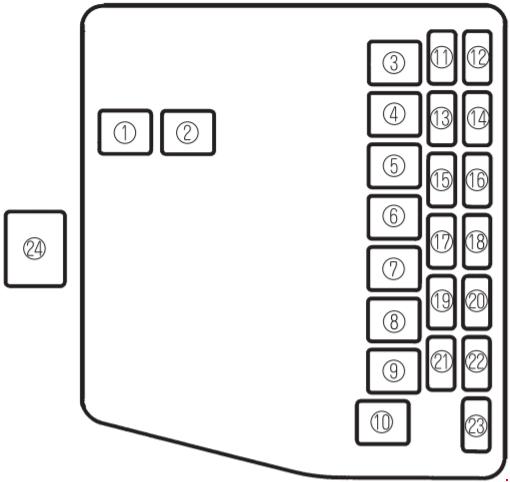

Mazda Familia - fuse box diagram - engine compartment
Mazda Familia – fuse box diagram – engine compartment
No. Description A Circuits protected
1 HEATER 40 Heater
2 (ABS) 60 Antilock brake system, For protection of various circuits
3 IG KEY 60 For protection of various circuits
4 (PTC) 30
5 (GLOW) 40
6
7 COOLING FAN 30 Cooling fan
8 BTN 40 Interior lights, Power door lock
9 (AD FAN) 30 Additional cooling fan for air conditioner
10 INJ OR FIP 30 Engine control unit
11 (A/C) 10 Air conditioner
12 (ST.SIG) 10 Starter signal
13 HORN 15 Horn
14 HAZARD 15 Hazard warning flashers
15 TAIL 15 Taillights
16 (HEAD C/U) 7.5 For protection of various circuits
17 (FOG) 15
18 (FOG) 15 Fog lights
19 STOP 15 Brake lights
20 HEAD-R 15 Headlight-right
21 HEAD-L 15 Headlight-left
22
23 HEAD HI 15
24 MAIN 100 For protection of all circuits

Passenger compartment fuse box

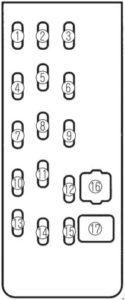

Mazda Familia - fuse box diagram - passenger compartment
Mazda Familia – fuse box diagram – passenger compartment
No. Description A Circuits protected
1 (S/WRM) 15 For protection of various circuits
2 (H/CLN) 20 For protection of various circuits
3 (RADIO) 15 Audio system
4 (A/C) 15 Air conditioner
5 (R.WIPER) 10 For protection of various circuits
6
7
8 ROOM 10 Interior lights, Trunk light, Luggage compartment light
9 (MIRR DEF) 10
10
11 (DOOR LOCK) 30 Power door lock
12 (P/WIND) 30
13 WIPER 20 Windshield wiper and washer
14 ENGINE 10 Engine control unit
15 METER 10 Instrument cluster
16
17 (P/WIND) 30 Power windows

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
