Mazda CX-7 (2011) – fuse box diagram

Mazda CX-7 (2011) – fuse box diagram

Year of production: 2011

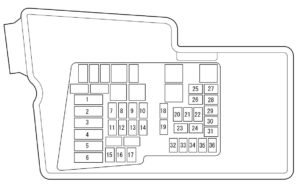

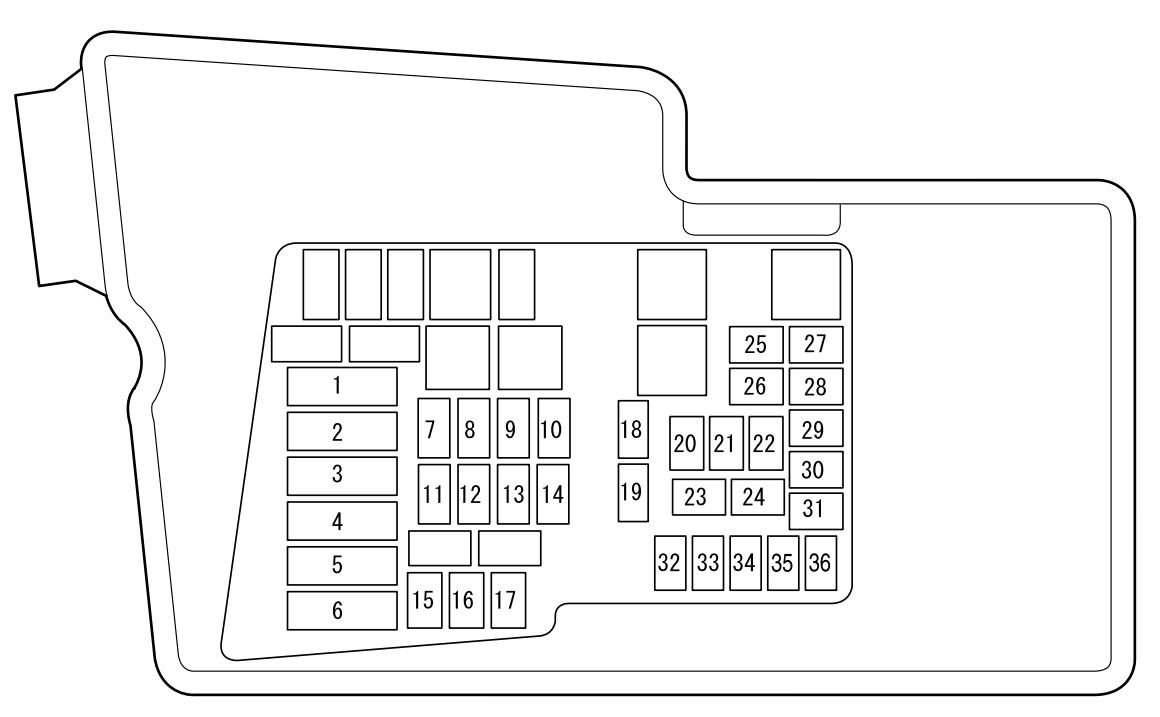

Fuse block (Engine compartment)

Position Description Fuse rating [A] Protected component
1 PCS
2 BLOWER 40 Air conditioner
3 FUEL PUMP 30 Fuel pump
4 FAN 2 40 Cooling fan
5 IG KEY 1 40 For protection of various circuits
6 FAN 1 40 Cooling fan main
7 P.SEAT (D) 40 Power seat *
8 INJ 30 Engine control system*
9 P.SEAT (P) 30 Power seat*
10 BOSE 30 Bose audio system *
11 ENGINE 30 Engine control system
12 D.LOCK 20 Power door locks
13 P.WIND 30 Power windows
14 IG KEY 2 40 For protection of various circuits
15 ABS 1 40 ABS
16 ABS 2 20 ABS
17 DSC
18  H/L CLEAN/ROOF 20 Moonroof*
19 DEF 30 Rear window defroster
20 TNS 15 Parking lights, License plate lights, Illumination
21 A/C 10 Air conditioner
22 TRAILER/TCM 20 Transaxle control system*
23 HEAD HI RH 15 Headlight high beam (RH)
24 HEAD HI LH 15 Headlight high beam (LH)
25 HEAD LO RH 15 Headlight low beam (RH)
26 HEAD LO LH 15 Headlight low beam (LH)
27 ETC 10 Engine control system*
28 ENG BAR 2 7,5 Engine control system
29 ECM 10 Engine control system
30 INJ 10 Engine control system*
31 ENG BAR 1 15 Engine control system
32 FOG 15 Fog lights*
33 STOP 10 Brake lights
34 HORN 20 Horn
35 ENG B+ 25 Engine control system
36 HAZARD 10 Hazard warning flashers, Turn signals
* Some models

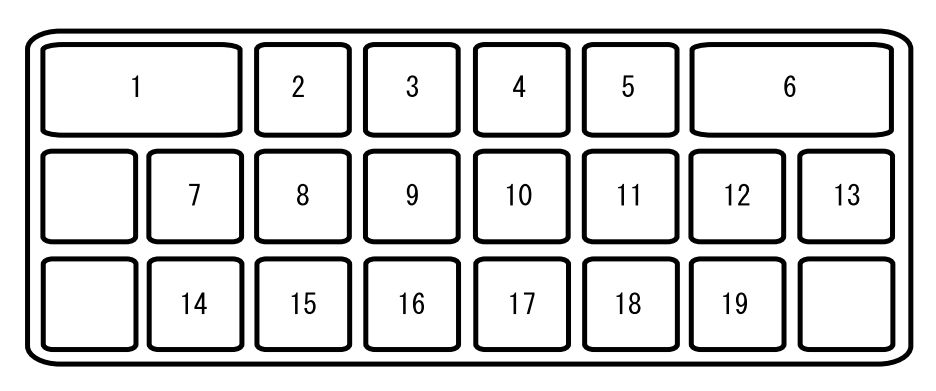

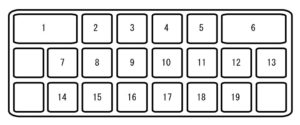

Fuse block (Driver’s side)

Mazda CX-7 - fuse box - driver's side
Mazda CX-7 – fuse box – driver’s side
Position Description Fuse rating [A] Protected component
1 P.WIND 2 30 Power windows
2 OUTLET 1 15 Accessory Socket
3 P.MIR 7,5 Power control mirror
4 OUTLET 2 15 Accessory Socket
5 SCR
6 WIPER 20 Windshield wiper and washer
7 M.DEF 7,5 Mirror defroster*
8 P/ST/ENGBAR 3 7,5 Engine control system
9 P.WIND
10 A/B 7,5 Air bag
11 ENGINE 15 Engine control system
12 METER 15 Instrument cluster
13 ILLUMI 10 Dashboard illumination
14 ROOM 15
15 R.FOG
16 SIREN
17 SEAT 20 Seat warmer*
18 A/C 10 Air conditioner
19 R.WIP 10 Rear window wiper and washer
*Some models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
