Mazda B-Series  (2001) – fuse box diagram

Mazda B-Series  (2001) – fuse box diagram

Year of production: 2001

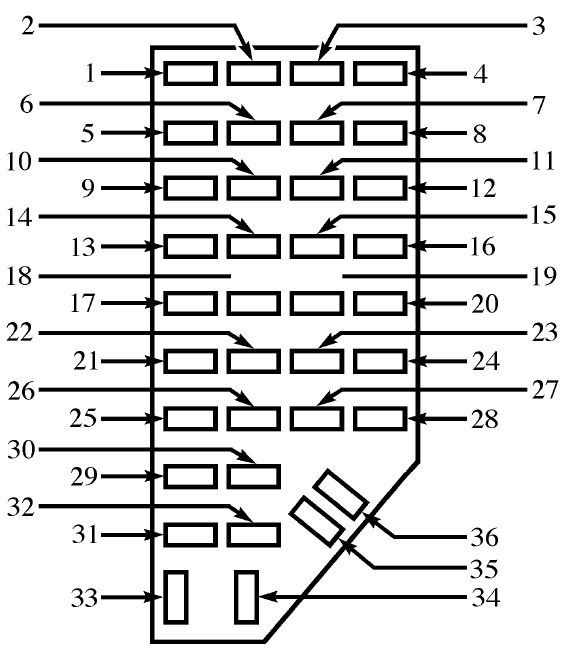

Interior fuse panel

Mazda B-Series - fuse box - interior fuse panel
Mazda B-Series – fuse box – interior fuse panel
Number Ampere rating [A] Description
1 5 Power Mirror
2 10 Blower Motor Relay, Air Bag Diagnostic Monitor, Passive Deactivation (PAD) Module
3 7,5 Trailer Tow Connector (LH Stop/Turn)
4
5 10 4×4 Control Module
6
7 7,5 Trailer Tow Connector (LH Stop/Turn)
8
9 7,5 Stoplamp Switch
10 7,5 Cruise Control Servo/Amplifier Assy., GEM/CTM, Shift Lock Actuator, Blend Door Actuator, A/C Heater Control Assy., Turn Signals
11 7,5 Instrument Cluster, Main Light Switch, RABS Resistor
12
13 20 Brake Pedal Position Switch
14 20 RABS Module
10 4WABS Mod., 4WABS Main Relay
15
16 30 W/W Motor, Wiper Hi-Lo Relay, Wiper Run/Park Relay, Washer Pump Relay
17 25 Cigar Lighter, Data Link Connector (DLC)
18
19 25 PCM Power Diode, Ignition, PATS
20 7,5 GEM/CTM, Radio
21 20 Flasher
22 20 Auxiliary Power Point
23
24 7,5 Clutch Pedal Position (CPP) Switch, Starter Interrupt Relay
25
26 10 Battery Saver Relay, 4×4 Electronic Shift Relay, Interior Lamp Relay, 4×4 Elec. Shift Control Module, Dome/Map Lamp, Instrument Illumination Dimming Module, Restraint Control Module, GEM/CTM, Instrument Cluster
27
28 7,5 GEM/CTM System, Radio
29 15 Radio
30
31
32
33 15 Headlights, DRL Module, Instrument Cluster
34
35 15 ISA Horn Relay if not Equipped with Truck Security Module
36

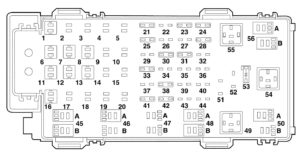

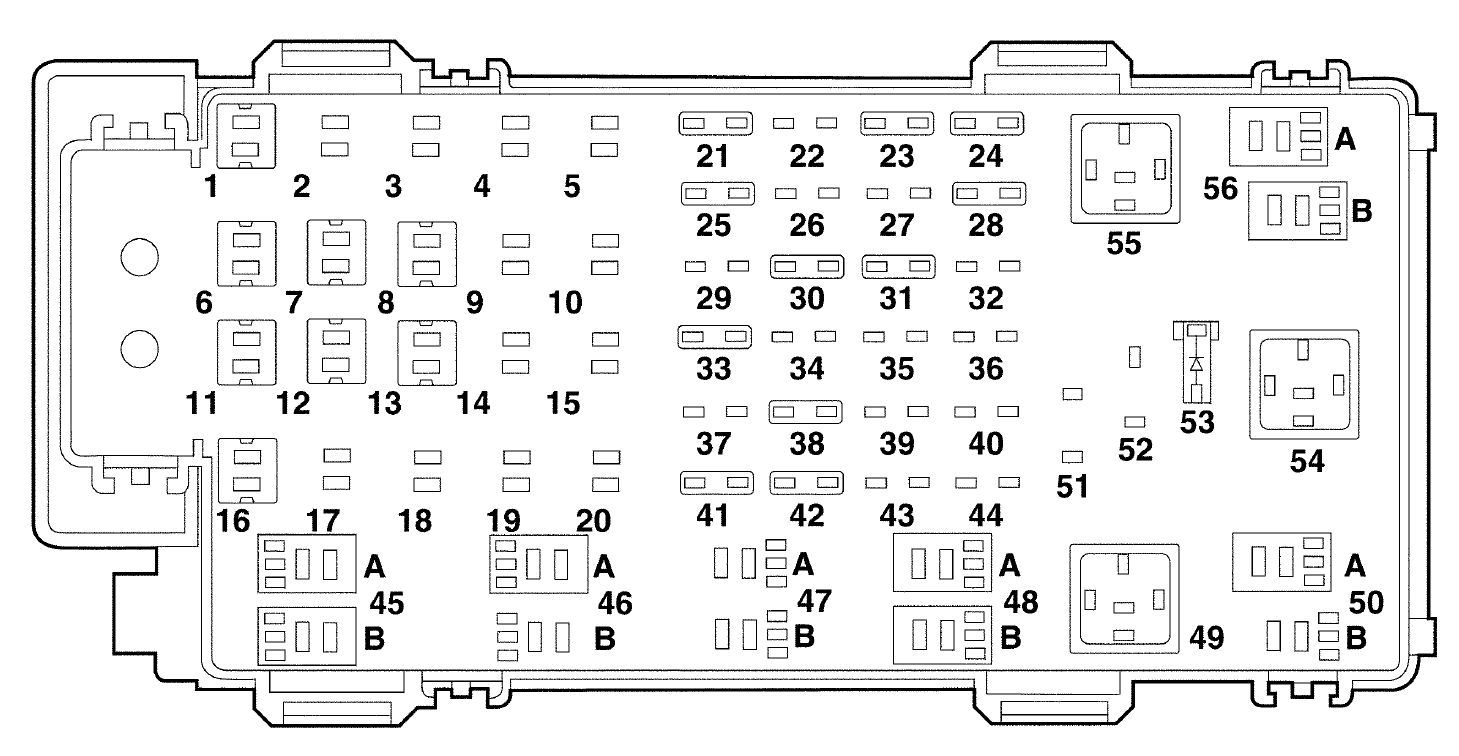

Engine compartment fuse block

Mazda B-Series - fuse box - engine compartment
Mazda B-Series – fuse box – engine compartment
Number Ampere rating [A] Description
1 50 I/P Fuse Panel
2
3
4
5
6 50 ABS Pump Motor
7 30 Powertrain Control Module
8 20 Power Door Locks and Remote Entry
9
10
11 50 Starter Relay Ignition Switch
12 10 PCM Memory
13 20 4×4 Motor
14
15
16 40 Blower Motor
17
18
19
20
21 10 PCM Memory
22
23 20 Fuel Pump Motor
24 30 Headlights
25 10 A/C Clurtch
26
27
28 30 4WABS Module
29
30 15 Trailer Tow
31 20 Fog Lamps, Day Time Running Lamps (DRL)
32
33 15 Park Lamp
34
35
36
37
38 10 Left Headlamp Low Beam
39
40
41 Heated Oxygen Sensors
42 10 Right Headlamp Low Beam
43
44
45A Wiper High/Low
45B Wiper Park/Run
46A
46B Front Washer Pump
47A
47B
48A Fog Lamp
48B Fog Lamp Relay
49 Full Starter
50A
50B Fuel Pump
51
52
53 Powertrain Control Module (PCM) Diode
54 Powertrain Control Module (PCM) Diode
55 Blower
56A A/C Clutch Solenoid
56B Trailer Tow

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
