Maruti Suzuki Ertiga (petrol) – fuse box diagram

26 July 2019 admin Ertiga, Maruti Suzuki 0

Maruti Suzuki Ertiga (petrol) – fuse box diagram

Fuse box in the engine compartment

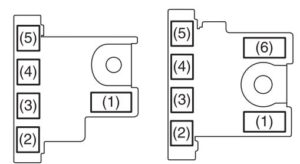

Maruti Suzuki Ertiga - fuse box - engine compartment
Maruti Suzuki Ertiga – fuse box – engine compartment

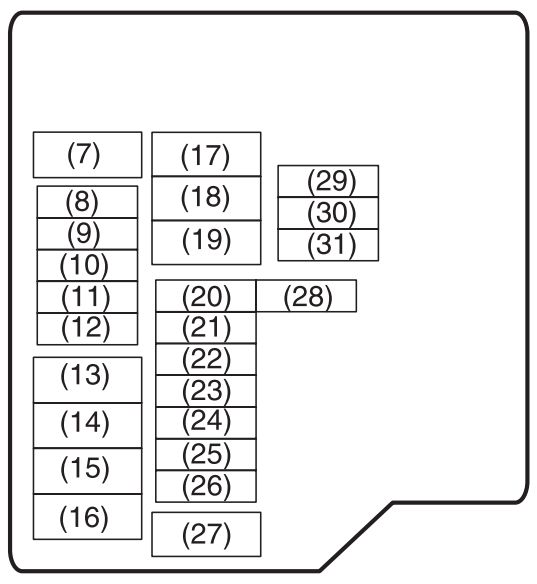

Maruti Suzuki Ertiga - fuse box - engine compartment
Maruti Suzuki Ertiga – fuse box – engine compartment
Fuse Ampere rating [A] description
(1) 100 FL1 (GAS)
120 FL1 (DIESEL
(2) 100 FL2
(3) 100 FL3
(4) 50 FL4
(5) 80 FL5
(6) 100 FL6 (DIESEL)
(7) 50 Ignition switch -2
(8) 7,5 ECM (DIESEL)
(9) — Blank
(10) — Blank
(11) 10 Air compressor
(12) 15 FI (GAS)
(13) 30 FI (DIESEL)
(14) 60 Power steering
(15) 30 Radiator fan
(16) 40 ABS motor
(17) 40 Blower fan
(18) 30 Starting motor
(19) — Blank
(20) 30 Back up
(21) — Blank
(22) 15 Head light (left)
(23) 25 ABS control module
(24) 15 Head light (right)
(25) 20 Front fog light
(26) — Blank
(27) 40 Ignition switch
(28) 7,5 Starting switch
(29) 20 INJ DRV (DIESEL)
(30) 10 FI2 (DIESEL)
(31) 15 F/P (DIESEL)

Fuse box unter dash board

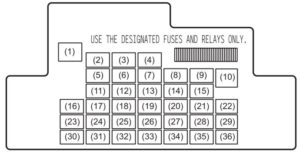

Maruti Suzuki Ertiga - fuse box - passenger compartment
Maruti Suzuki Ertiga – fuse box – passenger compartment
Fuse Ampere rating [A] Description
(1) 30 Belt
(2) — Blank
(3) — Blank
(4) 20 Rear defogger
(5) — Blank
(6) — Blank
(7) — Blank
(8) 7,5 Starting signal
(9) 15 ACC-2
(10) 30 Power window
(11) 10 Hazard
(12) — Blank
(13) 15 Ignition coil
(14) 10 ABS control module
(15) 15 ACC
(16) — Blank
(17) 15 Horn
(18) 10 Stop light
(19) 10 Air bag
(20) 10 Back-up light
(21) 15 Rear wiper/washer
(22) 25 Front wiper
(23) 7,5 Dome light
(24) — Blank
(25) 7,5 RR fog lamp
(26) — Blank
(27) 7,5 Ignition-1 signal
(28) — Blank
(29) — Blank
(30) 15 Radio
(31) 10 Tail lamp
(32) 20 D/L
(33) 7,5 Cruise control
(34) 10 Meter
(35) 7,5 Ignition-2 signal
(36) — Blank

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
