Maruti Suzuki EECO (Petrol) – fuse box diagram
Fuse box in engine compartment
The main fuse and primary fuses are located in the engine compartment.

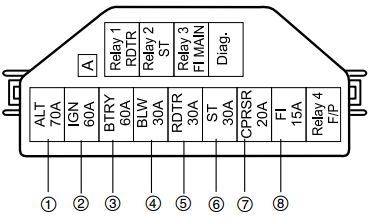

Main fuses
| Fuse | Ampere rating [A] | Description | |
| 1 | ALT | 70 | Main fuse |
| 2 | IGN | 60 | Ignition fuse |
| 3 | BTRY | 60 | Primary fuse (Lighting system) |
| 4 | BLW | 30 | Blower fuse |
| 5 | RDTR | 30 | Radiator fan motor fuse |
| 6 | ST | 30 | Starter fuse |
| 7 | CPRSR | 20 | A/C fuse (if qequipped) |
| 8 | FI | 15 | Fuel injection system fuse |

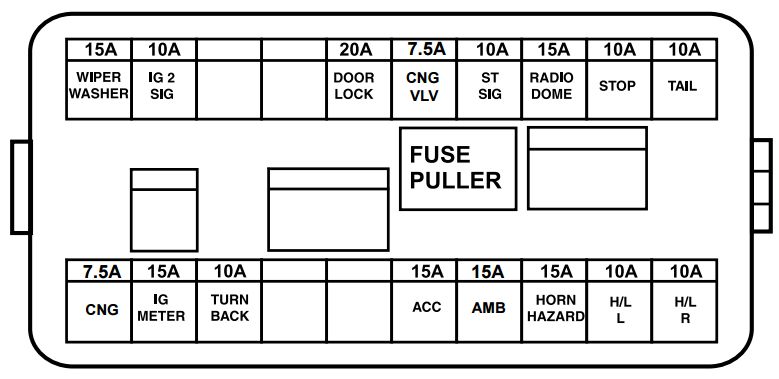

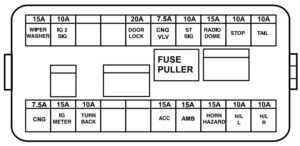

Primary fuse
| Fuse | Ampere rating [A] |
| 15 | WIPER WASHER |
| 10 | IG 2 SIG |
| 20 | DOOR LOCK |
| 7,5 | CNG VLV |
| 10 | ST SIG |
| 15 | RADIO DOME |
| 10 | STOP |
| 10 | TAIL |
| 7,5 | CNG |
| 15 | IG METER |
| 10 | TURN BACK |
| 15 | ACC |
| 15 | AMB |
| 15 | HORN HAZARD |
| 10 | H/L L |
| 10 | H/L R |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
