Maruti Suzuki Alto 800 (1st generation – first generation – 2010 – 2012) (CNF) – fuse box diagram

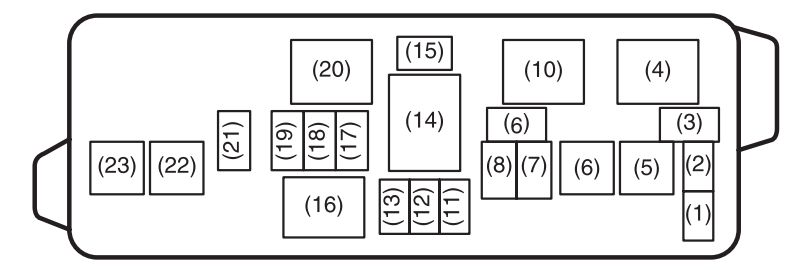

Fuses in the engine compartment
| Fuse | Ampere rating [A] | Description |
| (1) | — | Blank |
| (2) | — | Blank |
| (3) | — | Blank |
| (4) | — | Air compressor relay |
| (5) | 50 | Ignition switch fuse |
| (6) | 50 | Light |
| (7) | 15 | Headlight (left) fuse |
| (8) | 15 | Headlight (right) fuse |
| (9) | — | Blank |
| (10) | — | Radiator fan relay |
| (11) | — | Blank |
| (12) | — | Blank |
| (13) | — | Blank |
| (14) | 80 | All electric load |
| (15) | — | Blank |
| (16) | — | Main relay |
| (17) | 30 | Radiator fan fuse |
| (18) | 15 | Fuel injection fuse |
| (19) | 10 | Air compressor fuse |
| (20) | — | Fuel pump relay |
| (21) | — | Blank |
| (22) | — | Blank |
| (23) | — | Blank |

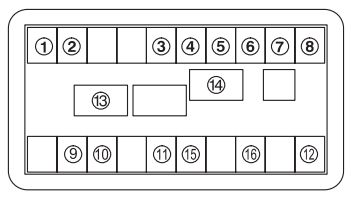

Fuses under the dash board
| Fuse | Ampere rating [A] | Description |
| (1) | — | Blank |
| (2) | 20 | Door lock |
| (3) | 15 | Audio |
| (4) | 10 | Tail light |
| (5) | 10 | Stop light |
| (6) | 30 | Blower motor |
| (7) | — | Blank |
| (8) | — | Blank |
| (9) | 15 | Wiper |
| (10) | 10 | IG2 SIG |
| (11) | 30 | Power window |
| (12) | — | Blank |
| (13) | 15 | Accessory |
| (14) | 15 | Horn/Hazard |
| (15) | 7,5 | CNG Valve |
| (16) | 7,5 | CNG |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
