LTI TX2 (2002 – 2006) – fuse box diagram
Year of production: 2002, 2003, 2004, 2005, 2006

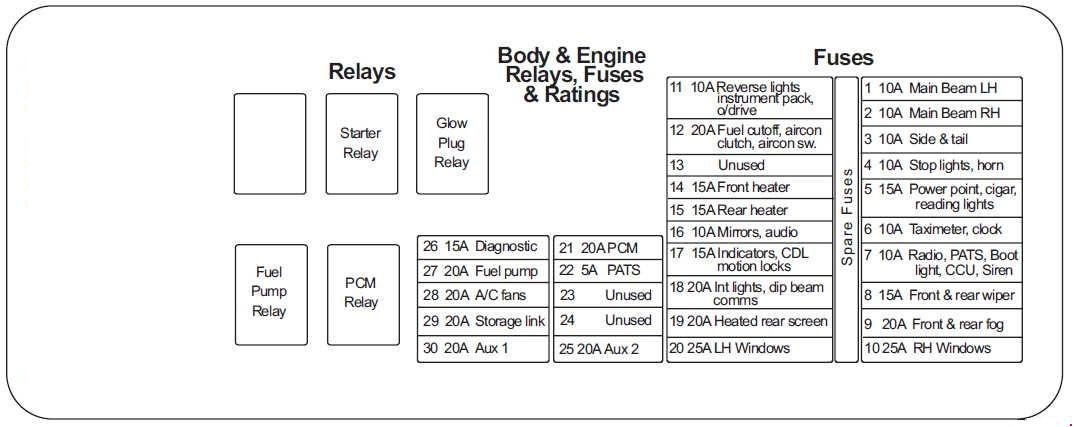

Fuses in the interior
| № |
A |
Description |
| 1 | 10 | Main Beam LH |
| 2 | 10 | Main Beam LH |
| 3 | 10 | Side & tail |
| 4 | 10 | Stop lights, horn |
| 5 | 15 | Power point, cigar, reading lights |
| 6 | 10 | Taximeter, clock |
| 7 | 10 | Radio, PATS, Boot light, CCU, Siren |
| 8 | 15 | Front & rear wiper |
| 9 | 20 | Front & rear fog |
| 10 | 25 | RH Windows |
| 11 | 10 | Reverse lights, instrument pack, o/drive |
| 12 | 20 | Fuel cutoff, aircon clutch, aircon sw. |
| 13 | — | — |
| 14 | 15 | Front heater |
| 15 | 15 | Rear heater |
| 16 | 10 | Mirror, audio |
| 17 | 15 | Indicators, CDL motion locks |
| 18 | 20 | Int lights, dip beam comims |
| 19 | 20 | Heated rear screen |
| 20 | 25 | LH Windows |
| 21 | 20 | PCM |
| 22 | 5 | PATS |
| 23 | — | — |
| 24 | — | — |
| 25 | 20 | Aux 2 |
| 26 | 15 | Diagnostic |
| 27 | 20 | Fuel pump |
| 28 | 20 | A/C fans |
| 29 | 20 | Storage Ink |
| 30 | 20 | Aux 1 |
| Starter Relay | ||
| Glow Plug Relay | ||
| Fuel Pump Relay | ||
| PCM Relay | ||

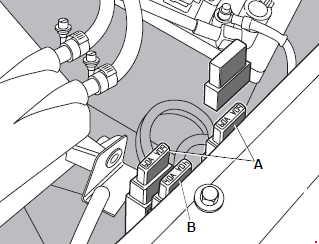

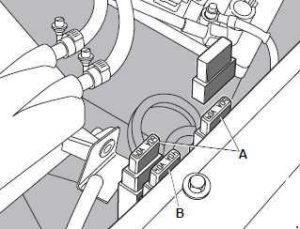

Maxi fuses
| № |
A |
Description |
| A | 60 | Ignition and Battery |
| A | 60 | Ignition and Battery |
| B | 40 | Glow Plugs |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
