Lincoln Zephyr (2006) – fuse box diagram

Lincoln Zephyr (2006) – fuse box diagram

Year of production: 2006

Engine Compartment Fuse Box

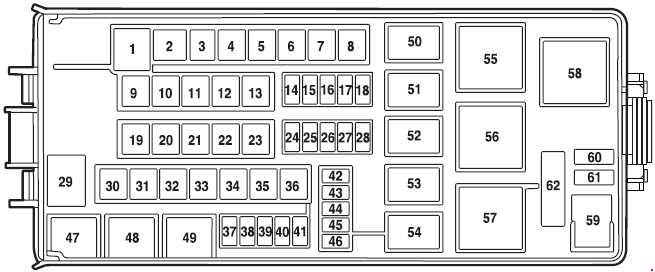

Lincoln Zephyr - fuse box diagram - engine compartment
Lincoln Zephyr – fuse box diagram – engine compartment
No.
A
Circuit Protected
1 60 SJB power feed (fuses 12, 13, 14, 15, 16, 17, 18, C/B)
2 40 Powertrain power
3 Not used
4 40 Blower motor
5 Not used
6 40 Rear window defroster, Heated mirrors
7 Not used
8 Not used
9 20 Wipers
10 20 ABS Valves
11 30 Heated seats, Passenger heated/cooled seat
12 30 Driver heated/cooled seat
13 Not used
14 15 Ignition switch
15 10 Memory module logic
16 15 Transmission
17 20 Console power point
18 10 Alternator sense
19 40 Logic feed to SJB (solid state devices)
20 20 THXII Amplifier #1
21 20 THXII Amplifier #2
22 Not used
23 60 SJB power feed (fuses 1, 2, 4, 10, 11)
24 15 Fog lamps
25 10 A/C Compressor clutch
26 15 LH HID Low beam
27 15 RH HID Low beam
28 Not used
29 60 Engine cooling fan
30 30 Fuel pump relay feed
31 30 Passenger power seat
32 30 Driver power seat
33 20 Moonroof
34 30 Driver Smart power window
35 30 Passenger Smart power window
36 40 ABS Pump
37 Not used
38 Not used
39 Not used
40 Not used
41 Not used
42 15 PCM non-emission related
43 15 Coil on plug
44 15 PCM emission related
45 Not used
46 15 Injectors
62 Circuit Breaker: Spare
Diode
60 Fuel pump
61 Not used
Relay
47 Fog lamps
48 LH HID Low beam
49 RH HID Low beam
50 Wiper Park
51 A/C Clutch
52 Not used
53 Wiper RUN
54 Not used
55 Fuel pump
56 Blower motor
57 PCM
58 Not used
59 Not used

Passenger Compartment Fuse Box

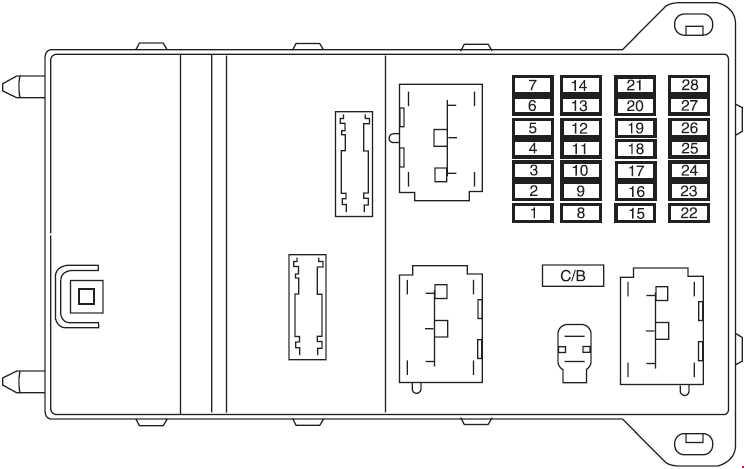

Lincoln Zephyr - fuse box diagram - passenger compartment
Lincoln Zephyr – fuse box diagram – passenger compartment
No.
A
Circuit Protected
1 10 Backup lamps, Electrochromatic mirror
2 20 Horns
3 15 Battery saver: Interior lamps, Puddle lamps, Trunk lamp, Glove box lamp, Rear power windows
4 15 Parklamps, License plate lamps
5 Not used
6 Not used
7 Not used
8 30 Rear window defroster
9 10 Heated mirrors
10 30 Starter coil, PCM
11 15 High beams
12 7.5 Delay accessories: Radio head units, Moonroof, Front power windows, Electrochromatic mirrors
13 7.5 Cluster, KAM-PCM, Analog clock, Climate control head units, Canister vent solenoid
14 15 Washer pump
15 20 Cigar lighter
16 15 Door lock actuator, Decklid lock solenoid
17 20 Subwoofer, THXII DSP module
18 20 Radio head units, OBDII connector
19 Not used
20 7.5 Power mirrors, DSP (THX/Navigation radio)
21 7.5 Stop lamps
22 7.5 Audio
23 7.5 Wiper relay coil, Cluster logic
24 7.5 OCS (Passenger’s seat), PAD indicator
25 7.5 RCM
26 7.5 PATS Transceiver, Brake shift interlock solenoid, Brake pedal switch
27 7.5 Cluster, Climate control head units
28 10 ABS/Traction Control, Heated seats, Compass
C/B 30 Circuit Breaker: Rear power windows, Delayed accessory (SJB fuse 12)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
