Lincoln Town Car (1992 – 1997) – fuse box diagram

Lincoln Town Car (1992 – 1997) – fuse box diagram

Year of production: 1992, 1993, 1994, 1995, 1996, 1997

Passenger Compartment Fuse Box

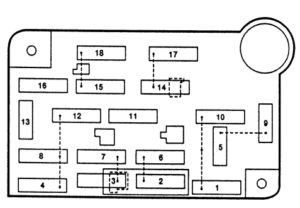

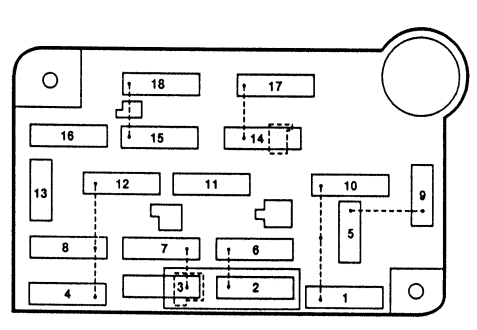

Lincoln Town Car Second Generation - fuse box - instrument panel
Lincoln Town Car Second Generation – fuse box – instrument panel
No. A Protected components
1 30 ’92-’94: CD Changer, Clock Memory, Radio Memory, Instrument Cluster, Trunk Lid Pull-down, Cellular Telephone Connector, Air Suspension, Power Antenna, Daytime Running Lamps
15 ’95-’97: Electronic Automatic Temperature Control (EATC) Module, Backup Lamps, Turn Signal Indicators, Trailer Battery Charging Relay, Heated Seats, Shift Lock
2 8.25 ’92-’94:
Circuit Breaker: Interval Wiper/Washer System
30 ’95-’97: Wiper/Washer Controller Module, Windshield Wiper Motor
3 5 ’95-’97: Instrument Cluster
4 10 ’92-’94: Instrument Cluster, Warning Lamps, Warning Chime, Air Bag, EVO Steering
’95-’97: Lighting Control Module (LCM)
5 10 ’92-’94: Heated Mirrors
15 ’95-’97: Ignition Coils, PCM Power Relay
6 10 ’92-’94: Radio, Warning Chime, Dome/Reading/Map Lamps, Power Antenna, Clock, Power Windows, Shift Lock, Remote Keyless Entry, Anti-theft
’95-’97: Lighting Control Module (LCM), Front Radio Control Unit, Clock, Cellular Phone, Electronic Day/Night Mirror, Compass Module
7 5 ’92-’94: Instrument Panel Illumination Lamps
15 ’95-’97: Air Bag Diagnostic Monitor, Air Suspension/EVO Steering Module, Steering Wheel Rotation Sensor, Electronic Automatic Temperature Control (EATC) Module, Anti-Lock Brake Module, Instrument Cluster, Daytime Running Lamps, Speed Control Amplifier, Warning Indicators, Transmission Control Switch
8 15 ’92-’94: Manual Lever Position Sensor, Remote Keyless Entry, Daytime Running Lamps, EATC Controller Module, Electronic Day/Night Mirror, Autolamps, Air Suspension/EVO Steering, Anti-theft
’95-’97: Keyless Entry, Power Mirrors, Trunk Lid Pull-Down, Memory Seats, Redundant Steering Control Module, CD Changer, Cellular Phone
9 30 ’92-’94: Blower Motor
5 ’95-’97: Air Bag Diagnostic Monitor, Lighting Control Module (LCM), Warning Indicators, Front Radio Control Unit
10 30 ’92-’94: Cigar Lighter
30 ’95-’97: Electronic Automatic Temperature Control (EATC) Module
11 20 ’92-’94: Exterior Lamps, Courtesy Lamps, Anti-theft, AutoIamps
5 ’95-’97: LF Seat Module, LF Door Module
12 15 ’92-’94: Speed Control, Stop Lamps, Hazard Flashers, Warning Lamps
18 ’95-’97:
Circuit Breaker: Headlamps, Lighting Control Module (LCM)
13 15 ’92-’94: Ignition Coils, EEC System
10 ’95-’97: Rear Window Defrost/Heated Mirror
14 20 ’95-’97:
Circuit Breaker: Keyless Entry, Fuel Fill Door Release, LF Seat Module, Power Seats, LF Door Module
15 15 ’92-’94: Rear Window Defrost, Trailer Adapter, Headlamp Flash-to-Pass, Turn Signals, A/C Compressor Clutch ’95-’97: l/P Illumination, Courtesy Lamps, Daytime Running Lamps, Lighting Control Module (LCM)
16 15 ’92-’94: H02S Sensors
15 ’95-’97: Brake ON-OFF Switch, Brake Pressure Switch, Hazard Flasher, Trailer Adapter
17 10 ’92-’94: Courtesy Lamps, EATC Controller Module, Warning Lamps, Power Mirrors, Remote Keyless Entry, Memory Seats
30 ’95-’97: Cigar Lighter
18 5 ’92-’94: Anti-lock Brake System
10 ’95-’97: Electronic Automatic Temperature Control (EATC) Module, Instrument Cluster, On Board Diagnostic (OBD) Data Link Connector, Clock, Front Radio Control Unit

Engine Compartment Fuse Box

Lincoln Town Car - fuse box diagram - engine compartment
Lincoln Town Car – fuse box diagram – engine compartment
No. A Protected Components
A 50 Lamps
B 40 ’92-’94: Anti-lock Brakes
50 ’95-’97: Anti-lock Brakes
C 50 Ignition Switch
D 40 Rear Window Defrost/Heated Mirrors
E 40 Ignition Switch
F 30 Circuit Breaker: Power Windows/Moonroof
G Not Used
H 30 ’92-’94:
Circuit Breaker:
 Power Seats/Door Locks/Fuel Filler Door Release/Trunk Lid Pull-down/ Trunk Lid Release Switch
J 10 Generator/Voltage Regulator
K 10 Air Bag Restraints
L 15 ’92-’94: Horn
20 ’95-’97: Horn
M 15 ’92-’94: Daytime Running Lamp
N 20 Fuel Pump
P 25 ’92-’94: Ignition Switch
30 ’95-’97: Cooling Fan
R 25 Radio Amplifier
S 30 ’92-’94: Anti-lock Brakes
30 ’95-’97: Heated Seat
T 30 Powertrain Control Module (PCM)
U 30 Air Suspension
V 30 Trailer Tow Battery Charging
W 30 Trailer Tow Brakes
X 30 Trailer Tow Lamps
Y Not Used
Relay
R1 Horn
R2 Air Suspension
R3 ’92-’94: Anti-lock Brakes
’95-’97: Cooling Fan
R4 ’92-’94: Window Regulator Safety

Additional Relay Box

Relay center, located on LH – fender affixed to vacuum reservoir.

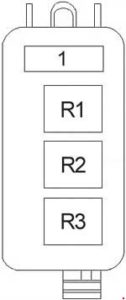

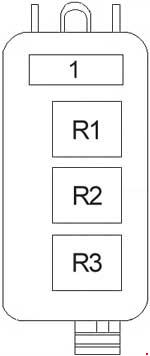

Lincoln Town Car - fuse box diagram - additional relay box
Lincoln Town Car – fuse box diagram – additional relay box
Diode
1 PCM Power
Relay
R1 A/C WOT Cutout
R2 Fuel Pump
R3 PCM Power

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
