Lincoln Navigator (2007 – 2014) – fuse box diagram

Lincoln Navigator (2007 – 2014) – fuse box diagram

Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

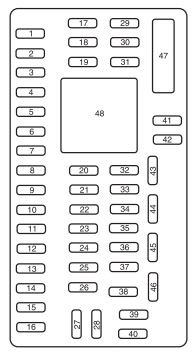

Passenger compartment fuse panel

Lincoln Navigator - fuse box  diagram - instrument panel
Lincoln Navigator – fuse box  diagram – instrument panel
No.
A
Circuit Protected
1 30 Driver window
2 15 Driver side memory module
3 15 Family entertainment system (’07-’10), Audio rear seat controls, Satellite radio, SYNC
4 30 Passenger window
5 10 Keypad illumination, 3rd row seat enable, Brake Shift Interlock (BSI), Smart fuse panel logic power
6 20 Turn signals
7 10 Low beam headlamps (left)
8 10 Low beam headlamps (right)
9 15 Interior lights
10 15 Switch backlighting, Puddle lamps
11 Not used
12 7.5 Power mirror switch, Driver seat switch
13 Not used
14 10 Clock, Power liftgate module -keep-alive power, Power miming board module – keep-alive power (’07-’09)
15 10 Climate control, Global positioning satellite module (’10-’14)
16 15 ’07: Electronic parking brake release
17 20 Door locks, Liftgate release, Liftglass release
18 20 ’09-’14: Second row heated seats
19 25 Rear wiper
20 15 Adjustable pedals, Datalink
21 15 Fog lamps, Cornering lamps (’07-’09)
22 15 Park lamps relay
23 15 High beam headlamps
24 20 Horn relay
25 10 Demand lamps, Glovebox, Visor
26 10 Instrument panel cluster
27 20 Ignition switch
28 5 Radio
29 5 Instrument panel cluster
30 5 Not used (Spare)
31 10 ’07-’08: Compass, Automatic dimming rear view mirror
32 10 Airbag module
33 10 ’07: Ebrake
34 5 Not used (spare)
35 10 Rear park assist, 4×4, Rear video camera, 2nd row heated seats (’11-’14)
36 5 Passive anti-theft system
37 10 Climate control
38 20 Subwoofer/Amp (Audiophile radio), THX Amp/DSP
39 20 Radio
40 20 THX Amp/DSP
41 15 Power windows, Power vents, Power moonroof, Auto dimming rear view mirror, 110–volt AC power point (’11-’14)
42 10 ’07-’08: Trailer tow battery charge coil
43 10 Rear wiper logic, Rain sensor (’09-’14)
44 10 ’09-’14: Trailer tow battery charge relay coil
45 5 Front wiper logic
46 7.5 Climate control, Auxiliary relay control
47 30 Circuit Breaker: Power windows, Moon roof
Relay
48 Delayed accessory

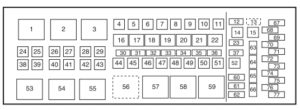

Engine Compartment Fuse Box (2007-2008)

Lincoln Navigator - fuse box diagram - engine compartment
Lincoln Navigator – fuse box diagram – engine compartment
No.
A
Circuit Protected
4 30 Third row seats (driver side)
5 40 ’07: Trailer tow connector (electric brake)
30 ’08: Trailer tow connector (electric brake)
6 60 ABS (valves)
7 40 Power running boards
8 40 Heated/cooled seats
9 60 ABS (pump)
10 20 Rear console power point
11 30 Auxiliary blower
12 25 Trailer tow connector (park lamps)
13 30 Trailer tow connector (batteiy charge)
14 Not used
15 Not used
23 15 Heated mirrors
24 40 Blower motor
25 Not used
26 Not used
27 30 Power liftgate
28 40 Rear window defroster, Heated mirror
29 30 Passenger seat
30 10 A/C clutch
31 15 Brake lamps
32 20 Fuel pump
33 20 Back-up lamps
34 25 Trailer tow connector (stop/turn lamps)
35 20 4×4 module
36 10 Powertrain Control Module (PCM) – Keep alive power, Canister vent
37 15 Transmission B+
38 30 Third row seats (passenger side)
39 50 ’07: Air suspension pump
60 ’08: Air suspension pump
40 30 Starter motor
41 20 IP/Console power point
42 Not used
43 Not used
44 20 Driver side HID headlamp
45 30 Driver seat
46 40 Run/Start bus bar
47 30 Air suspension – solenoids
48 20 Passenger side HID headlamp
49 30 Front wipers/washer
50 30 PCM – bus bar
51 20 Cargo power point
52 20 Cigarette lighter
63 15 Trailer tow connector (back-up lamp)
64 Not used
65 10 Air suspension logic
66 Not used
67 10 Blower coil
68 Not used
69 30 Run/Start – passenger compartment fuse panel
70 20 PCM (sensors) – EFC, A/C clutch coil
71 5 Fuel coil, ISP-R
72 20 PCM (ignition coils)
73 5 Transmission ignition
74 20 PCM (sensors) – HEGO/CMS, MAFS, EVMV, CMCV, Speed deactivation switch, VCT
75 5 4×4 Integrated Wheel Ends (IWE) solenoid
76 20 PCM – VPWR
77 10 ABS logic, Heated PCV
Diode
60 One-touch Start diode
61 ’07: A/C clutch diode
62 Fuel pump diode
Relay
1 Blower
2 Not used
3 Rear window defroster
16 A/C clutch
17 Driver side HID headlamp
18 Fuel pump
19 Back-up
20 Trailer tow connector (left turn signal)
21 Trailer tow connector (right turn signal)
22 Passenger side HID headlamp
53 Air suspension
54 Starter
55 Trailer tow connector (park lamp)
56 Trailer tow connector (battery charge)
57 Run/Start
58 Not used
59 PCM relay

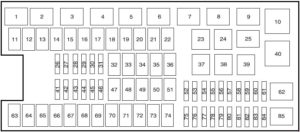

Engine Compartment Fuse Box (2009-2014)

Lincoln Navigator - fuse box diagram - engine compartment
Lincoln Navigator – fuse box diagram – engine compartment
No.
A
Circuit Protected
11 40 Power running board motors
12 40 Run/Start relay
13 30 Starter relay
14 40 ’10-’14: Electronic fan
15 20 Right hand HID headlamp relay
16 40 ’10-’14: Electronic fan
17 20 Left hand HID headlamp relay
18 30 Trailer brake
19 60 ’09-’13: Rear air suspension relay feed
20 Not used
21 30 Trailer tow battery charge
22 30 Passenger power seat
26 15 ’09-’11: Transmission Control Module (TCM) power
27 20 4×4
28 25 Trailer tow park lamp relay feed
29 20 Back up lamps, Integrated wheel end solenoid
30 10 Air conditioner clutch relay
31 Not used
32 40 Blower motor relay feed
33 40 ’11-’14: 110–volt AC power point
34 30 Auxiliary blower motor
35 30 Powertrain control module relay
36 30 Power liftgate
41 10 TCM (’09-’11)/PCM keep alive power
42 Not used
43 15 ’09: Brake on/off switch
5 ’10-’14: Brake on/off switch
44 20 Fuel pump relay
45 25 Trailer tow stop turn relay feed
46 Not used
47 Not used
48 30 ’09-’13: Rear air suspension module
49 Not used
50 30 Front wiper motor
51 40 Heated backlite/mirror relay
52 10 Anti-lock Brake System (ABS) R/S feed
53 10 ’09-’13: Rear air suspension module R/S feed
54 5 ’09-’11: TCM R/S power
55 5 Fuel pump relay R/S feed
56 30 Passenger compartment fuse panel run/start feed
57 10 Blower motor R/S feed
58 15 Trailer tow backup lamps
59 15 Heated mirrors
63 25 ’10-’14: Electronic fan
64 30 Moon roof
65 20 Auxiliary power point (instrument panel)
66 20 Auxiliary power point (rear of center console)
67 40 ’09-’11: Front row climate controlled seats
68 60 ABS valves
69 60 ABS pump
70 40 ’09-’11: Third row power fold seat
30 ’12-’14: Third row power fold seat
71 20 Auxiliary power point/cigar lighter
72 20 Auxiliary power point (right rear quarter panel)
73 Not used
74 30 Driver power seat/DSM
75 20 PCM – voltage power 1
76 20 PCM – voltage power 2
77 15 Voltage power 4, Ignition coils
78 Not used
79 20 PCM – voltage power 3
80 Not used
81 Not used
82 Not used
83 Not used
84 Not used
Diode
60 ’09-’11: One-touch Start
61 Fuel pump
Relay
1 Powertrain Control Module power
2 Starter
3 ’10: Electronic fan 2
’11-’14: Blower motor
4 Trailer tow
5 Fuel pump
6 ’09: Trailer tow park lamp
’10-’14: Electronic fan 1
7 Heated backlite/Mirror
8 ’10-’14: Electronic fan 3
9 Run/Start (R/S)
10 ’09-’13: Rear air suspension (RAS)
23 Air conditioner clutch
24 ’10-’14: Trailer tow park lamp
25 Right hand HID headlamp
37 Trailer tow left hand stop/turn
38 Trailer tow right hand stop/turn
39 Back up lamps
40 ’09-’10: Blower motor
’11-’14: Electronic fan 2
62 Left hand HID headlamp
85 Wiper motor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
