Lincoln MKZ (2010 – 2012) – fuse box diagram

Lincoln MKZ (2010 – 2012) – fuse box diagram

Year of production: 2010, 2011, 2012

Passenger compartment fuse panel

The fuse panel is located below and to the left of the steering wheel by the brake pedal.

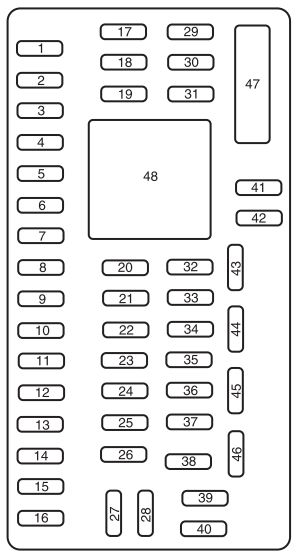

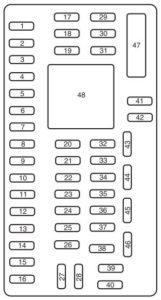

Lincoln MKZ (2010 - 2013) - fuse box diagram - passenger compartment
Lincoln MKZ (2010 – 2013) – fuse box diagram – passenger compartment
No.
A
Circuit Protected
1 30 Driver smart window motor
2 15 Brake on/off switch, Center high-mounted stop lamp
3 15 Except Hybrid: Not used (Spare)
Hybrid: HEV battery fan
4 30 Passenger front smart window motor
5 10 Keypad illumination, Brake shift interlock
6 20 Turn signal lamps
7 10 Low beam headlamps (left)
8 10 Low beam headlamps (right)
9 15 Courtesy Ughts/Illuminated scuff plate
10 15 Backlighting, Puddle lamps
11 10 Except Hybrid: AWD module
12 7.5 Memory modules, Memory seat/mirrors switches
13 5 SYNC® module
14 10 Electronic finish panel (EFP) radio and climate control buttons module, Navigation display, Center information display, GPS module, Ambient lighting
15 10 Climate control
16 15 Not used (Spare)
17 20 Door locks, Trunk release
18 20 Except Hybrid: Not used (Spare)
Hybrid: Heated seat module
19 25 Not used (Spare)
20 15 On-Board Diagnostic connector
21 15 Fog lamps
22 15 Front sidemarker lamps, Park lamps, License plate lamp
23 15 High beam headlamps
24 20 Horn
25 10 Demand lamps/power saver relay
26 10 Instrument cluster battery power
27 20 Ignition switch
28 5 Radio crank sense circuit
29 5 Instrument cluster ignition power
30 5 Not used (Spare)
31 10 Not used (Spare)
32 10 Restraint control module
33 10 Not used (Spare)
34 5 Not used (Spare)
35 10 Rear park assist, Blind spot monitor system, Rear video camera, AWD
36 5 Passive anti-theft sensor (PATS) transceiver
37 10 Except Hybrid: Not used (Spare)
Hybrid: Humidity sensor fan
38 20 Subwoofer amplifier
39 20 Radio
40 20 Not used (Spare)
41 15 Automatic dimming mirror, Moon roof, Compass, Front windows
42 10 Electronic stability control, Adaptive headlamps
43 10 Rain sensor
44 10 Fuel diode/Powertrain control module
45 5 Heated backlight and blower relay coil, Wiper washer
46 7.5 Occupant classification sensor (OCS) module, Passenger airbag off lamp
47 30 Circuit Breaker: Rear windows
Relay
48 Delayed accessory

Engine Compartment Fuse Box (except Hybrid)

Lincoln MKZ (2010 - 2013) - fuse box diagram - engine compartment
Lincoln MKZ (2010 – 2013) – fuse box diagram – engine compartment
No.
A
Circuit Protected
1 Not used
2 Not used
3 40 Powertrain control module (PCM) (relay 57 power)
4 Not used
5 30 Starter motor (relay 55 power)
6 40 Rear defrost (relay 53 power)
7 Not used
8 40 Anti-lock brake system (ABS) pump
9 20 Wipers washer
10 30 ABS valves
11 Not used
12 30 Heated/cooled seats
13 Not used
14 Not used
15 Not used
16 15 Transmission module
17 10 Alternator
18 Not used
19 Not used
20 20 Audio amplifier
21 20 Audio amplifier
22 20 Console power point
23 10 PCM – Keep alive power, Canister vent
24 Not used
25 10 A/C clutch (relay 43 power)
26 15 Left headlamp (relay 42 power)
27 15 Right headlamp (relay 44 power)
28 80 Cooling fan motor
29 20 Front power point
30 30 Fuel relay (relay 54 power)
31 30 Passenger power seat
32 30 Driver power seat
33 20 Moon roof motor power feed
34 Not used
35 40 Front A/C blower motor (relay 52 power)
38 10 Heated side mirrors
39 Not used
40 Not used
45 15 Injectors
46 15 PCM
47 10 General powertrain components, A/C clutch, back-up lamps
48 15 Ignition coils
49 15 Emissions related powertrain components
Diode
36 Fuel pump
37 One-touch start
Relay
41 Backup lamps
42 Left headlamps
43 A/C clutch
44 Right headlamps
50 Not used
51 Not used
52 Blower motor
53 Rear defrost
54 Fuel
55 Starter
56 Not used
57 PCM
58 Not used

Engine Compartment Fuse Box (only Hybrid)

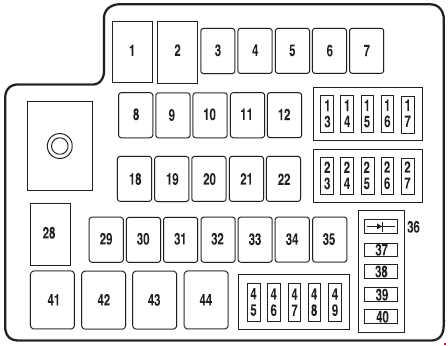

Lincoln MKZ – fuse box diagram – engine compartment (hybrid)
Lincoln MKZ – fuse box diagram – engine compartment (hybrid)
No.
A
Circuit Protected
1 50 Electronic power assist steering B+
2 50 Electronic power assist steering B+
3 40 Powertrain control module (aux relay 5 power)
4 Not used
5 Not used
6 40 Rear defrost (aux relay 4 power)
7 40 ’11: Vacuum pump (aux relay 6 power)
30 ’12: Vacuum pump (aux relay 6 power)
8 50 Brake system controller pump
9 20 Wiper washer
10 30 Brake system controller valves
11 Not used
12 30 Heated-cooled seats
13 15 Motor electronics coolant/heater pump (relay 42 & 44 power)
14 Not used
15 Not used
16 Not used
17 10 HEV high voltage battery module
18 Not used
19 Not used
20 20 THX Radio
21 20 THX Radio
22 20 Console power point
23 10 Powertrain control module/ Transmission control module keep-alive power, Canister vent
24 Not used
25 Not used
26 15 Left headlamp (aux relay 1 power)
27 15 Right headlamp (aux relay 2 power)
28 60 Cooling fan motor
29 20 Front power point
30 30 Fuel relay (relay 43 power)
31 30 Passenger power seat
32 30 Driver power seat
33 20 Moon roof
34 Not used
35 40 Front A/C blower motor (aux relay 3 power)
37 5 Vacuum pump monitoring
38 10 Heated side mirrors
39 10 Transmission control module
40 10 Powertrain control module
45 15 Injectors
46 15 Coil on plugs
47 10 Powertrain control module (general): Heater pump, Motor electronics coolant pump relay coils, DC/DC converter, Back-up lamps, Brake controller
48 20 HEV high voltage battery module, Fuel pump relay
49 15 Powertrain control module (emissions related)
Diode
36 1 Fuel pump
Relay
41 Backup lamps
42 Heater pump
43 Fuel pump
44 Motor electronics coolant pump

Additional Relay Box (only Hybrid)

Lincoln MKZ - fuse box diagram - additional relay box (hybrid)
Lincoln MKZ – fuse box diagram – additional relay box (hybrid)
No.
Circuit Protected
1 Left headlamp
2 Right headlamp
3 Blower motor
4 Rear window defogger
5 Powertrain control module
6 Vacuum pump cut-off
7 Vacuum pump

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
