Lifan X60 – fuse box diagram
Year of production:

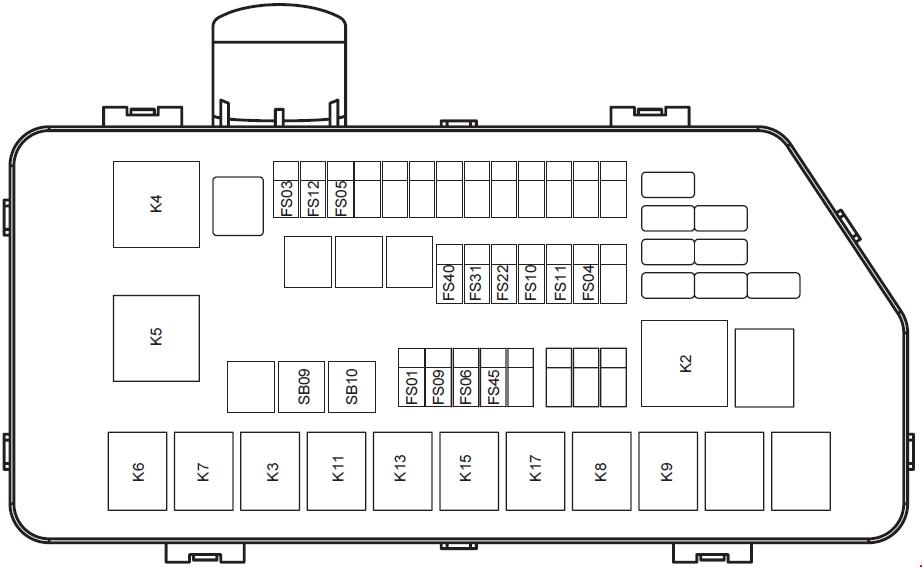

Engine Compartment Fuse and Relay Box
| No. |
Circuits protected |
A |
| SB09 | Main Fan Fuse | 30 |
| SB10 | Minor Fan Fuse | 30 |
| FS01 | Fan Fuse | 5 |
| FS03 | ECU Fuse | 10 |
| FS04 | Main Relay Fuse | 25 |
| FS05 | IG2 Power Fuse | 25 |
| FS06 | Fuel Pump Fuse | 15 |
| FS09 | A/C Compressor Fuse | 10 |
| FS10 | Overtaking/High Beam Lamp Fuse | 15 |
| FS11 | Low Beam Lamp Fuse | 15 |
| FS12 | IG2 Power Fuse | 10 |
| FS22 | Front Fog Fuse | 15 |
| FS31 | Horn Fuse | 15 |
| FS40 | Small Light Fuse | 15 |
| FS45 | Rear Fog Fuse | 10 |
| Relay | ||
| К2 | Main Relay | |
| К3 | Fuel Pump Relay | |
| К4 | SPD Regulation Relay | |
| К5 | Main Fan Relay | |
| К6 | Minor Fan Relay | |
| К7 | A/C Compressor Relay | |
| К8 | High Beam Relay | |
| К9 | Low Beam Relay | |
| К11 | Horn Relay | |
| К13 | Small Light Relay | |
| К15 | Front Fog Relay | |
| К17 | Overtaking Lamp Relay | |

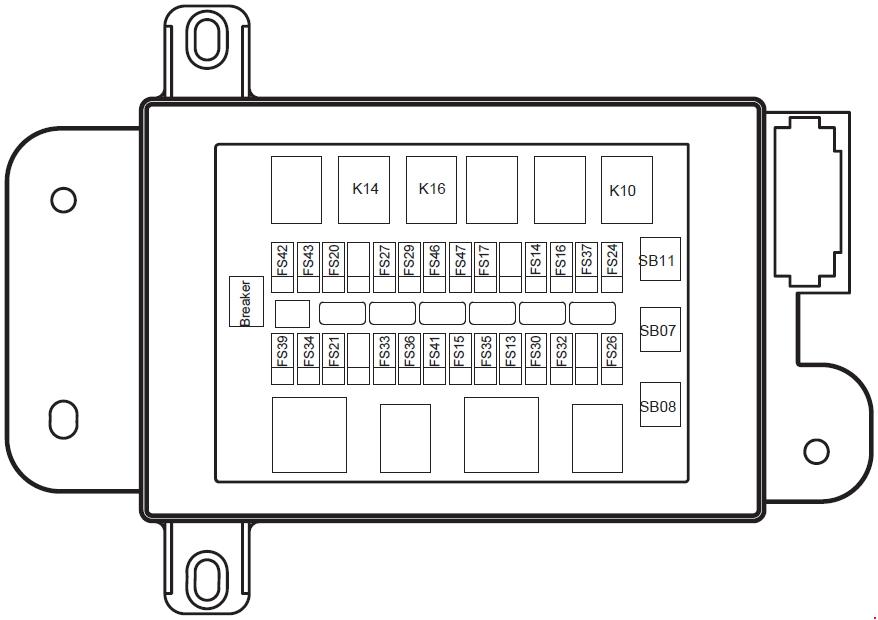

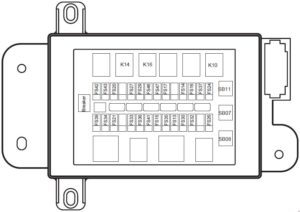

Passenger compartment fuse box
| No. |
Circuits protected |
A |
| FS42 | CD/DVD | 15 |
| FS43 | Instrument Cluster | 10 |
| FS20 | IMMO | 10 |
| FS27 | BCM | 5 |
| FS29 | Sunroof | 20 |
| FS46 | Rearview Mirror Defroster | 10 |
| FS47 | Rear Defroster | 25 |
| FS17 | Control Lock | 20 |
| FS14 | Reverse Lamp | 10 |
| FS16 | Multi-function Discreen | 10 |
| FS37 | Seat Heating | 15 |
| FS24 | A/C | 15 |
| FS39 | SRS | 15 |
| FS34 | Front Wiper | 25 |
| FS21 | IMMO | 5 |
| FS33 | Cigarette Lighter | 15 |
| FS36 | Rearview Mirror | 7.5 |
| FS41 | CD/DVD | 5 |
| FS15 | Dome Lamp | 10 |
| FS35 | Rear Wiper | 20 |
| FS13 | Turn Lamp | 15 |
| FS30 | Brake Lamp | 10 |
| FS32 | Spare Power | 15 |
| FS26 | Power Windows | 30 |
| SB11 | Blower | 30 |
| SB07 | AM1 | 40 |
| SB08 | AM2 | 40 |
| Relay | ||
| К14 | Rear Fog Relay | |
| К16 | Defroster Relay | |
| К10 | Blower Relay | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
