Lexus IS F (2013) – fuse box diagram

Lexus IS F (2013) – fuse box diagram

Year of production: 2013

Engine compartment (type A)

Left-hand drive vehicles

Lexus IS F - fuse box - engine compartment (type A) -left-hand drive vehicle
Lexus IS F – fuse box – engine compartment (type A) -left-hand drive vehicle

Right-hand drive vehicles

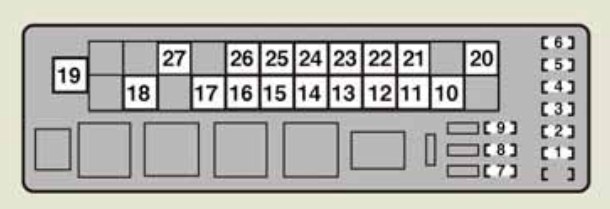

Lexus IS F - fuse box - engine compartment (type A) - right-hand drive vehicle

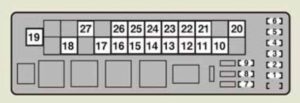

Lexus IS F – fuse box – engine compartment (type A) – right-hand drive vehicle
Fuse Ampere rating [A] Circuit protected
1 ALT-S 7,5 Charging system
2 TURN-HAZ 15 Emergency flashers, turn signals
3 IG2 MAIN 20 IG2, IGN, GAUGE
4 RAD NO. 2 30 Audio system
5 D/C CUT 20 DOME, MPX-B
6 RAD NO. 1 30 Audio system
7 MPX-B 10 Headlights, front fog lights, front position lights, windshield washer, horns, power door lock system, power windows, power seats, electric tilt and telescopic steering column, meters and gauges, smart entry & start system, outside rear view mirrors, air conditioning system, multiplex communication system
8 DOME 10 Interior lights, meters and gauges, outer foot lights
9 CDS 10 Electric cooling fans
10 E/G-B 60 FR CTRL-B, ETCS, A/F, STR LOCK, INJ2
11 P/I-B 60 EFI, F/PMP, INJ
12 ABS 1 50 VDIM
13 RH J/B-B 30 FR DOOR RH, RR DOOR RH, AM2
14 VVT 40 Multiport fuel injection system/sequential multiport fuel injection system
15 MAIN 30 H-LP R LWR, H-LP L LWR, headlight low beams
16 STARTER 30 Smart entry & start system
17 LH J/B-B 30 FR DOOR LH, RR DOOR LH, SECURITY
18 EPS 80 Electric power steering
19 ALT 180 LH J/B-AM, E/G-AM, HEATER, FAN1, FAN2, DEFOG, RH J/BAM, ABS2
20 LH J/B-AM 80 S/ROOF, FR P/SEAT LH, TV NO. 1, A/C, F/OPN, PSB, RR FOG, FR WIP, H-LP LVL, LH-IG, ECU-IG LH, PANEL, TAIL, TV NO. 2, FR S/HTR LH, MIR HTR
21 RH J/B-AM 80 OBD, STOP SW, TI & TE, FR P/SEAT RH, DOOR DL, RAD NO.
3, ECU-IG RH, RH-IG, FR S/HTR RH, ACC, CIG, PWR OUTLET
22 ABS2 30 VDIM
23 DEFOG 50 Rear window defogger
24 FAN2 40 Electric cooling fans
25 FAN1 40 Electric cooling fans
26 HEATER 50 CDS, air conditioning system
27 E/G-AM 60 H-LP CLN, FR CTRL AM, DEICER

Engine compartment (type B)

Lexus IS F - fuse box - engine compartment (type B)
Lexus IS F – fuse box – engine compartment (type B)
Fuse Ampere rating [A] Circuit protected
1 SPARE 30 Spare fuse
2 SPARE 25 Spare fuse
3 SPARE 10 Spare fuse
4 FR CTRL-B 25 HORN, H-LP HI
5 A/F 15 Exhaust system
6 ETCS 10 Multiport fuel injection system/sequential multiport fuel injection system
7 TEL 10
8 INJ2 25 Multiport fuel injection system/sequential multiport fuel injection system
9 STR LOCK 25 Steering lock system
10 H-LP CLN 30 Headlight cleaner
11 DEICER 25 Windshield wiper de-icer
12 FR CTRL-AM 30 FR FOG, WASHER, FR TAIL
13 IG2 10 Ignition system
14 EFI NO. 2 10 Fuel system, exhaust system, multiport fuel injection system/sequential multiport fuel injection system
15 H-LP R LWR 15 Headlight low beam (right)
16 H-LP L LWR 15 Headlight low beam (left)
17 F/PMP 25 Fuel system
18 EFI 25 Multiport fuel injection system/sequential multiport fuel injection system, EFI NO. 2
19 INJ 25 Multiport fuel injection system/sequential multiport fuel injection system
20 H-LP UPR 20 Headlight high beams
21 HORN 10 Horns
22 WASHER 20 Windshield washer
23 FR TAIL 10 Parking lights, side marker lights
24 FR FOG 15 Front fog lights

Left side instrument panel

Lexus IS F - fuse box - driver's side instrument panel
Lexus IS F – fuse box – driver’s side instrument panel
Fuse Ampere rating [A] Circuit protected
1 FR P/SEAT LH 30 Power seat
2 A/C 7,5 Air conditioning system
3 MIR HTR 15 Outside rear view mirror defoggers
4 TV NO. 1 10 Display
5 FUEL OPEN 10 Fuel filler door opener
6 TV NO. 2 7,5 Lexus parking assist monitor
7 PSB 30 Pre-collision seat belt
8 S/ROOF 25 Moon roof
9 TAIL 10 Tail lights, license plate lights
10 PANEL 7,5 Switch illumination, air conditioning system, display, cigarette lighter illumination, shift lever light, instrument panel lights
11 RR FOG 7,5 Rear fog lights
12 ECU-IG LH 10 Cruise control, air conditioning system, electric power steering, shift lock system, moon roof, Lexus parking assist monitor
13 FR S/HTR LH 15 Seat heaters
14 RR DOOR LH 20 Power windows
15 FR DOOR LH 20 Power windows, outside rear view mirror (left)
16 SECURITY 7,5 Smart entry & start system
17 H-LP LVL 7,5 Automatic headlight leveling system
18 LH-IG 10 Charging system, headlight cleaner, rear window defogger, electric cooling fans, emergency flashers, turn signal lights, back-up lights, stop lights, outside rear view mirror defoggers, seat belts, Lexus parking assist-sensor, air conditioning system
19 FR WIP 30 Windshield wipers

Right side instrument panel

Lexus IS F - fuse box - passenger's side instrument panel
Lexus IS F – fuse box – passenger’s side instrument panel
Fuse Ampere rating [A] Circuit protected
1 FR P/SEAT RH 30 Power seat
2 DOOR DL 15 Power door lock system
3 OBD 7,5 On-board diagnosis system
4 STOP SW 7,5 Stop lights, VDIM, shift lock system, multiport fuel injection system/sequential multiport fuel injection system, smart entry & start system
5 TI & TE 20 Electric tilt and telescopic steering column
6 RAD NO. 3 10 Audio system
7 GAUGE 7,5 Meters and gauges
8 IGN 10 SRS airbag system, stop lights, steering lock system, fuel system
9 ACC 7,5 Clock, air conditioning system, audio system, navigation system, display, outside rear view mirrors, smart entry & start system, Lexus parking assist monitor, glove box light, console box light
10 CIG 15 Cigarette lighter
11 PWR OUTLET 15 Power outlet
12 RR DOOR RH 20 Power windows
13 FR DOOR RH 20 Power windows, outside rear view mirrors
14 AM2 7,5 Smart entry & start system
15 RH-IG 7,5 Seat belts, Lexus parking assistsensor, automatic transmission, seat heaters, windshield wiper deicer
16 FR S/HTR RH 15 Seat heaters and
17 ECU-IG RH 10 Power seats, smart entry & start system, VDIM, air conditioning system, pre-crash seat belt, electric tilt and telescopic steering column, power windows, navigation system, headlights, front fog lights, front position lights, license plate lights, windshield washer, outside rear view mirrors

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
