Lexus IS F (2008 – 2010) – fuse box diagram

Lexus IS F (2008 – 2010) – fuse box diagram

Year of production: 2008, 2009, 2010,

Engine compartment (type A)

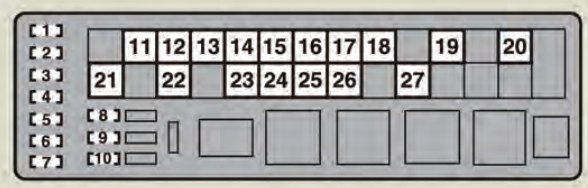

Lexus IS F - fuse box - engine compartment (type A)
Lexus IS F – fuse box – engine compartment (type A)
Fuse Ampere rating [A] Circuit protected
1 ABS 3 25 VDIM
2 ALT-S 7,5 Charging system
3 TURN-HAZ 15 Emergency flashers, turn signals
4 IG2 MAIN 20 IG2, IGN, GAUGE
5 RAD NO. 2 30 Audio system
6 D/C CUT 20 DOME, MPX-B
7 RAD NO. 1 30 Audio system
8 MPX-B 10 Headlights, front fog lights, parking lights, license plate lights, windshield washer, horns, power door lock system, power windows, power seats, electric tilt and telescopic steering column, meters and gauges, smart access system with push-button start, outside rear view mirrors, air conditioning system, security system
9 DOME 10 Interior lights, meters and gauges
10 CDS 10 Electric cooling fans
11 E/G-B 60 FR CTRL-B, ETCS, A/F, STR LOCK, INJ2
12 P/I-B 60 EFI, F/PMP, INJ
13 ABS 1 50 VDIM
14 RH J/B-B 30 FR DOOR RH, RR DOOR RH, AM2
15 VVT 40 Multiport fuel injection system/sequential multiport fuel injection system
16 MAIN 30 H-LP R LWR, H-LP L LWR, headlight low beams
17 STARTER 30 Smart access system with push-button start
18 LH J/B-B 30 FR DOOR LH, RR DOOR LH, SECURITY
19 EPS 80 Electric power steering
20 ALT 180 LH J/B-AM, E/G-AM, HEATER, FAN1, FAN2, DEFOG, RH J/B-AM
21 LH J/B-AM 80 S/ROOF, FR P/SEAT LH, TV NO.1, A/C, FUEL OPEN, PSB, FR WIP, H-LP LVL, LH-IG, ECU-IG LH, PANEL, TAIL, MIR HTR, TV NO. 2, FR S/HTR LH
22 RH J/B-AM 80 OBD, STOP SW, TI&TE, FR P/SEAT RH, RAD NO. 3, ECU-IG RH, RH-IG, FR S/HTR RH, ACC, CIG, PWR OUTLET
23 DEFOG 50 Rear window defogger
24 FAN2 40 Electric cooling fans
25 FAN1 40 Electric cooling fans
26 HEATER 50 CDS, air conditioning system
27 E/G-AM 60 H-LP CLN, FR CTRL-AM

Engine compartment (type B)

Lexus IS F - fuse box - engine compartment (type B)
Lexus IS F – fuse box – engine compartment (type B)
Fuse Ampere rating [A] Circuit protected
1 SPARE 30 Spare fuse
2 SPARE 25 Spare fuse
3 SPARE 10 Spare fuse
4 FR CTRL-B 25 HORN, headlight high beams
5 A/F 15 Exhaust system
6 ETCS 10 Multiport fuel injection system/sequential multiport fuel injection system
7 INJ2 25 Multiport fuel injection system/sequential multiport fuel injection system
8 STR LOCK 25 Steering lock system
9 H-LP CLN 30 Headlight cleaner
10 DEICER 25
11 FR CTRL-AM 30 FR FOG, WASHER, FR TAIL
12 IG2 10 Ignition system
13 EFI NO. 2 10 Fuel system, exhaust system, multiport fuel injection system/sequential multiport fuel injection system
14 H-LP R LWR 15 Headlight low beam (right)
15 H-LP L LWR 15 Headlight low beam (left)
16 F/PMP 25 Fuel system
17 EFI 25 Multiport fuel injection system/sequential multiport fuel injection system
18 INJ 25 Multiport fuel injection system/sequential multiport fuel injection system
19 H-LP UPR 15 Headlight beams
20 HORN 10 Horns
21 WASHER 20 Windshield washer
22 FR TAIL 10 Parking lights, side marker lights
23 FR FOG 15 Front fog lights

Driver’s side instrument panel

Lexus IS F - fuse box - driver's side instrument panel
Lexus IS F – fuse box – driver’s side instrument panel
Fuse Ampere rating [A] Circuit protected
1 FR P/SEAT LH 30 Power seat
2 A/C 7,5 Air conditioning system
3 MIR HTR 15 Outside rear view mirror defoggers
4 TV NO. 1 10 Display
5 FUEL OPEN 10 Fuel filler door opener
6 TV NO. 2 7,5
7 PSB 30 Pre-collision seat belt
8 S/ROOF 25 Moon roof
9 TAIL 10 Tail lights, license plate lights, parking lights, rear side marker lights
10 PANEL 7,5 Switch illumination, air conditioning system, display
11 RR FOG 7,5
12 ECU-IG LH 10 Cruise control, air conditioning system, electric power steering, shift lock system, moon roof, tire inflation pressure warning system
13 FR S/HTR LH 15 Seat heaters and ventilators
14 RR DOOR LH 20 Power windows
15 FR DOOR LH 20 Power windows, outside rear view mirror (left)
16 SECURITY 7,5 Smart access system with push-button start
17 H-LP LVL 7,5 AFS
18 LH-IG 10 Charging system, headlight cleaner, rear window defogger, electric cooling fans, emergency flashers, turn signal lights, back-up lights, stop lights, outside rear view mirror defoggers, seat belts, intuitive parking assist, air conditioning system
19 FR WIP 30 Windshield wipers

Passenger’s side instrument panel

Lexus IS F - fuse box - passenger's side instrument panel
Lexus IS F – fuse box – passenger’s side instrument panel
Fuse Ampere rating [A] Circuit protected
1 FR P/SEAT RH 30 Power seat
2 DOOR DL 15
3 OBD 7,5 On-board diagnosis system
4 STOP SW 7,5 Stop lights, VDIM
5 TI & TE 20 Electric tilt and telescopic steering column
6 RAD NO. 3 10 Audio system
7 GAUGE 7,5 Meters and gauges
8 IGN 10 SRS airbag system, stop lights, steering lock system, fuel system, front passenger occupant classification system
9 ACC 7,5 Clock, air conditioning system, audio system, navigation system, display, outside rear view mirrors, smart access system with push-button start, glove box light, console box light
10 CIG 15 Cigarette lighter
11 PWR OUTLET 15 Power outlet
12 RR DOOR RH 20 Power windows
13 FR DOOR RH 20 Power windows, outside rear view mirrors
14 AM2 7,5 Smart access system with push-button start
15 RH-IG 7,5 Seat belts, intuitive parking assist, automatic transmission, seat heaters and ventilators
16 FR S/HTR RH 15 Seat heaters and ventilators
17 ECU-IG RH 10 Power seats, smart access system with push-button start, outside rear view mirrors, VDIM, air conditioning system, pre-collision seat belt, electric tilt and telescopic steering, power windows, navigation system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
