Lexus HS250h (2010 – 2011) – fuse box diagram

Lexus HS250h (2010 – 2011) – fuse box diagram

Year of production: 2010, 2011

Engine compartment

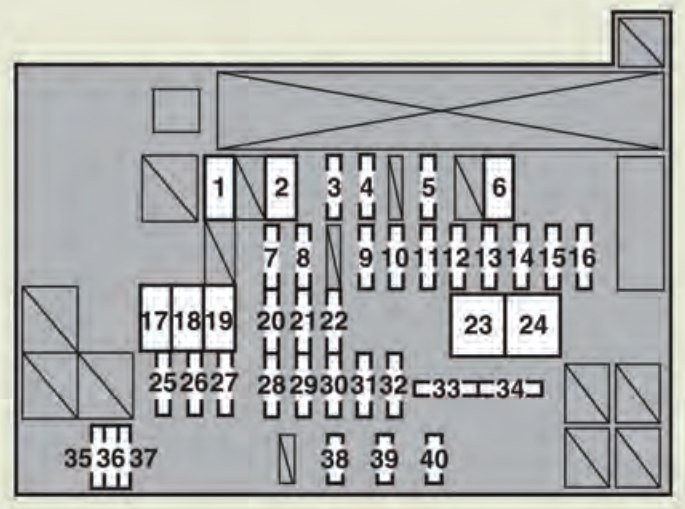

Lexus HS250h - fuse box - engine compartment
Lexus HS250h – fuse box – engine compartment
Fuse Ampere rating [A] Circuit protected
1 HTR 50 Air conditioning system
2 RDI 40 Electric cooling fans
3 OIL PMP 10 Hybrid system, transmission
4 S-HORN 10 No circuit
5 ABS MAIN NO.2 7,5 Electronically controlled brake system
6 H-LP CLN 30 Headlight cleaner
7 AMP NO.1 30 Audio system, back door opener
8 IGCT 30 PCU, IGCT NO.2, IGCT NO.3, hybrid system
9 P CON MAIN 7,5 P position control system, hybrid system, smart access system with pushbutton start
10 AM2 7,5 Smart access system with push-button start, hybrid system, multiport fuel injection system/sequential multiport fuel injection system, P position control system, cruise control system, dynamic radar cruise control system
11 ECU-B2 7,5 Smart access system with push-button start, multiport fuel injection system/sequential multiport fuel injection system, trunk opener switch
12 MAYDAY 10 Lexus link system
13 ECU-B3 10 Air conditioning system, rear window defogger, mirror heater
14 TURN & HAZ 10 Turn signal lights, emergency flashers
15 ETCS 10 Multiport fuel injection system/sequential multiport fuel injection system
16 ABS MAIN NO.1 20 Electronically controlled brake system
17 P/I 2 40 P position control system, hybrid system, transmission, smart access system with push-button start, horn, headlights (low beam), back-up lights
18 ABS MTR 1 30 Electronically controlled brake system
19 ABS MTR 2 30 Electronically controlled brake system
20 H-LP HI MAIN 20 Headlights (high beam)
21 AMP NO.2 30 Audio system, navigation system
22 DOOR NO.2 25 No circuit
23 P/I 1 60 IG2, EFI MAIN, BATT FAN
24 EPS 60 Electric power steering system
25 PCU 10 Hybrid system
26 IGCT NO.2 10 Smart access system with push-button start, hybrid system, P position control system, multiport fuel injection system/sequential multiport fuel injection system
27 MIR HTR 10 Rear window defogger, mirror heater
28 RAD NO.1 15 Audio system, navigation system
29 DOME 10 Interior lights, antiglare inside rear view mirror, audio system, navigation system, garage door opener
30 ECU-B 7,5 Smart access system with push-button start, air conditioning system, gauges and meters, outside rear view mirror, clock, seats position memory, electric tilt & telescopic steering wheel
31 H-LP LH HI 10 Left-hand headlight (high beam)
32 H-LP RH HI 10 Right-hand headlight (high beam)
33 EFI NO. 2 10 Multiport fuel injection system/sequential multiport fuel injection system
34 IGCT NO.3 10 Hybrid system
35 SPARE 30 Spare fuse
36 SPARE 10 Spare fuse
37 SPARE 7,5 Spare fuse
38 EFI MAIN 20 EFI NO.2, fuel system
39 BATT FAN 10 Battery cooling fan
40 IG2 20 Hybrid system, multiport fuel injection system/sequential multiport fuel injection system, MET, IGN

Driver’s side instrument panel

Lexus HS250h - fuse box - driver's side instrument panel
Lexus HS250h – fuse box – driver’s side instrument panel
Fuse Ampere rating [A] Circuit protected
1 TAIL 10 Parking lights, tail lights, license plate lights, side maker lights, front fog lights
2 PANEL 10 Navigation system, audio system, air conditioning system, emergency flashers switch, wiper de-icer switch, seat heater switch, P position switch, headlight cleaner switch, front passenger’s seatbelt reminder light, power window switch, VSC-OFF switch, HUD switch, AFS-OFF switch, POWER ·ECO· EV mode switch, view select switch, trunk opener switch, fuel lid opener switch, glove box light, rear sun shade switch, remote touch, rear view mirror switch
3 IGN 10 Electronically controlled brake system, multiport fuel injection system/sequential multiport fuel injection system, Lexus link system, smart access system with push-button start, stop lights
4 MET 7,5 Meters
5 WIP 30 Windshield wipers
6 WASHER 15 Windshield washer
7 A/C 10 Air conditioning system
8 GAUGE 10 AFS, turn signal lights, emergency flasher lights
9 AFS 10 Adaptive front-lighting system
10 ECU-IG NO.2 10 Pre-collision system, LKA, dynamic radar cruise control, air conditioning system, outside rear view mirror, HUD, navigation system, tire inflation pressure warning system
11 ECU-IG NO.1 10 Rear view mirror, electronically controlled brake system, electric power steering system, moon roof, rain-sensing windshield wiper, emergency flashers switch, air conditioning system, electric head restraints, driver monitor, steering switch, seat heaters/ventilators, electric tilt & telescopic steering wheel, rear sun shead. AFS
12 S/ROOF 30 Electric moon roof
13 DOOR RL 25 Rear power window (left-side)
14 DOOR RR 25 Rear power window (right-side)
15 SHADE RR 10 Rear sun shade
16 D FR DOOR 25 Driver’s side power window, outside rear view mirror
17 P FR DOOR 25 Passenger’s side power window, outside rear view mirror
18 TI & TE 30 Electric tilt & telescopic steering wheel
19 STOP 10 Stop lights, electronically controlled brake system
20 A/C NO.2 10 No circuit
21 RR FOG 7,5 No circuit
22 FUEL OPN 7,5 Trunk opener switch, fuel filler door opener switch
23 OBD 7,5 On-board diagnosis
24 PWR SEAT FL 30 Driver’s side power seat
25 FR FOG 15 Front fog lights
26 PWR SEAT FR 30 Passenger’s side power seat
27 PSB 30 Pre-collision seat belts system
28 WELCAB 30 No circuit
29 DOOR NO.1 25 Power door lock system
30 SEAT HTR FL 10 Driver’s side seat heater
31 SEAT HTR FR 10 Passenger’s side seat heater
32 RAD NO.2 7,5 Navigation system, audio system, air conditioning system, HUD, remote touch
33 PWR OUTLET 15 Power outlet
34 ECU-ACC 10 Rear view mirror, air conditioning system, audio system, navigation system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
