Lexus GX460 (2010 – 2011) – fuse box diagram

Lexus GX460 (2010 – 2011) – fuse box diagram

Year of production: 2010, 2011

Engine compartment

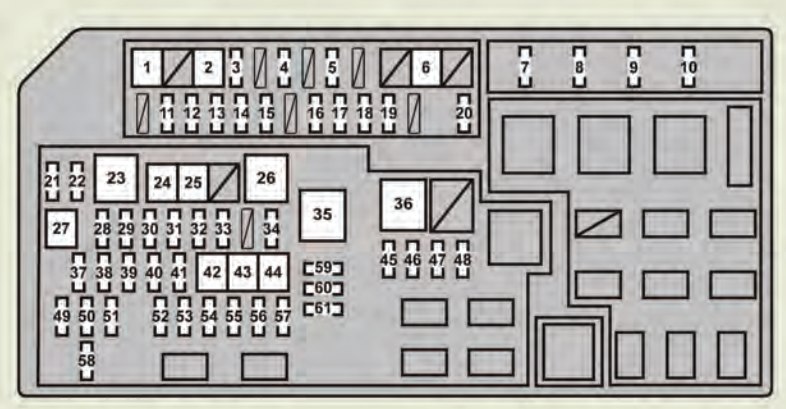

Lexus GX460 - fuse box - engine compartment
Lexus GX460 – fuse box – engine compartment
Fuse Ampere rating [A] Circuit protected
1 A/C RR 40 Rear air conditioning system
2 AIR SUS 50 Air suspension system, AIR SUS NO.2
3 INV 15 Inverter
4 DEF 30 Rear window defogger
5 DEICER 20 Windshield wiper deicer
6 SUB BATT 30 Towing
7 IG2 20 Injector, ignition, mete
8 HORN 10 Horn
9 EFI 25 EFI ECU, A/F heater relay, fuel pump relay, EFI NO.2
10 A/F 20 A/F SSR
11 FUEL OPN 10 Fuel lid opener
12 S/HTR RR 20 Rear seat heater
13 FOLD SEAT LH 30 Folding seat (left)
14 FOLD SEAT RH 30 Folding seat (right)
15 TOWING TAIL 30 Towing
16 A/C COMP 10 Air conditioning system
17 STRG HTR 10 Steering heater
18 CDS FAN 20 Condenser fan
19 STOP 10 Stop lights, high mount stop light, stop light switch, VSC ECU, towing, Smart access system with push button start
20 AIR SUS NO.2 7,5 AIR SUS ECU
21 H-LP RH-HI 15 Headlight high beam (right)
22 H-LP LH-HI 15 Headlight high beam (left)
23 HTR 50 Air conditioning system
24 WIP WSH RR 30 Rear window wipers and washer
25 H-LP CLN 30 Headlight cleaner
26 400W INV 80 AC INVERTER
27 ST 30 STARTER MTR
28 H-LP HI 25 DIM relay, headlights, daytime running light system
29 ALT-S 7,5 ALT
30 TURN & HAZ 15 Front turn signal light, rear turn signal light, side turn signal light, meter turn signal light
31 D/L NO.1 25 Door lock motor, glass hatch opener
32 ETCS 10 EFI ECU
33 FUEL PMP 15 FPC
34 TOWING 30 Towing
35 ALT 140 Air conditioning system, AIR SUS, headlight cleaner, towing, folding seat, STOP, rear window defogger, MIR HTR, CDS FAN, RR FOG, DEICER, MG-CLT, RR SEAT HTR, STRG HTR, J/B, INV, RR WIP, RR WSH
36 P/I-B 80 Injector, ignition, meter, EFI, A/F heater, horn
37 RAD NO.1 15 Audio system, navigation system, rear seat entertainment system
38 AM2 7,5 Starter system
39 RAD NO.2 10 Navigation system
40 MAYDAY 7,5 MAYDAY
41 AMP 30 Audio system
42 ABS NO.1 50 ABS, VSC
43 ABS NO.2 30 ABS, VSC
44 AIR PMP 50 Air pump
45 SECURITY 10 Security horn, self power siren, double lock ECU
46 SMART 7,5 Smart access system with push button start
47 STRG LOCK 20 Steering lock system
48 TOWING BRK 30 Towing
49 WIP RR 15 Rear window wiper
50 DOME 10 Interior lights, personal lights, vanity lights, door courtesy lights, footwell lights, outer foot lights, overhead module
51 ECU-B 10 BODY ECU, meter, heater, steering sensor, wireless remote control, seat position memory, tilt and telescopic steering, multi display, Smart access system with push button start, folding seat, cool box, DSS#2 ECU, steering switch, D-module switch, overhead module
52 WSH FR NO.2 7,5 DSS#1 ECU
53 H-LP RH-LO 15 Headlight low beam (right), headlight leveling system
54 H-LP LH-LO 15 Headlight low beam (left), headlight leveling system
55 INJ 10 Coil, injector, ignition, noise filter
56 EFI NO.2 10 O2 SSR, AFM, ACIS VSV, AI COMB, KEY OFF PUMP, EYP VSV, EGR VALVE, CANISTER VSV, AI VSV RLY, AI PUMP HTR RLY
57 WIP FR NO.2 7,5 DSS#1 ECU
58 WSH RR 15 Rear window washer
59 SPARE Spare fuse
60 SPARE Spare fuse
61 SPARE Spare fuse

Under the instrument panel

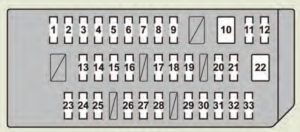

Lexus GX460 - fuse box - instrument panel
Lexus GX460 – fuse box – instrument panel
Fuse Ampere rating [A] Circuit protected
1 P/OUTLET 15 Power outlet
2 ACC 7,5 Outside rear view mirror motor, BODY ECU, air conditioning system, audio system, navigation system, parking assist system, back up relay, DSS#2 ECU, AT indicator, EFI ECU, shift lock ECU, DCM, MAYDAY ECU
3 BKUP LP 10 Back-up lights, audio system, multi information display, DSS#2 ECU, parking assist sensor
4 TOWING BKLP 10 Towing
5 AVS 20 Air suspension system
6 KDSS 10 KDSS ECU
7 4WD 20 4WD system, rear differential lock
8 P/SEAT FL 30 Front power seat (left)
9 D/L NO.2 25 Door lock motor, glass hatch opener, BODY ECU
10 PSB 30 PSB ECU
11 TI & TE 15 Tilt and telescopic steering
12 FOG FR 15 Front fog lights
13 OBD 7,5 DLC 3
14 A/C 7,5 Air conditioning system
15 AM1 7,5 Starting system
16 DOOR RL 25 Rear power window (left)
17 ECU-IG NO.1 10 Shift lock ECU, VSC ECU, steering sensor, yaw rate sensor, sequential switch, auto wiper ECU, back up relay, tilt & telescopic steering, PSB ECU, DSS#1 ECU, front radar sensor, AFS ECU, TIRE PRESS ECU, DRIVER MON ECU
18 IG1 7,5 Front turn signal light, rear turn signal light, side turn signal light, meter turn signal light, trailer light, ALT, VSC, C/C switch
19 ECU-IG NO.2 10 Rear window defogger, outside rear view mirror memory, seat heater/ ventilator switch, inverter relay, air conditioning system, EC mirror, BODY ECU, exhaust gas sensor, parking assist sensor, navigation system, DSS#2 ECU, meter switch, accessory meter, folding seat ECU, O/H IG, head light cleaner, rear air conditioning system, deicer, D-module, rain sensor, air suspension, RR VLV ECU, steering heater, LKA, P/SEAT IND
20 S/HTR FR 20 Seat heater and ventilator
21 P/SEAT FR 30 Front power seat (right)
22 DOOR P 30 Front power window (passenger’s side), outside rear view mirror memory
23 DOOR 10 Power window
24 DOOR D 25 Front power window (driver’s side)
25 DOOR RR 25 Rear power window (right)
26 S/ROOF 25 Moon roof
27 WIP 30 Windshield wipers and washer
28 WASHER 20 Windshield wipers and washer, rear window wipers and washer
29 COOLING 10 Cool box
30 IGN 10 EFI ECU, C/OPN RLY, VSC ECU, air bag ECU, smart entry & start system, steering lock ECU, CAN gateway ECU
31 GAUGE 7,5 Meter
32 PANEL 7,5 Switch illumination, glove box light, navigation system, audio system, air conditioning system, outside rear view mirror switch, folding seat switch, multi-information display, P/SEAT IND, SHIFT, COOL BOX
33 TAIL 10 Front position lights, tail lights, license plate lights, EFI ECU, rear fog lights, towing, front fog lights

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
