Lexus GS350 (2011) – fuse box diagram

Lexus GS350 (2011) – fuse box diagram

Year of production: 2011

Engine compartment

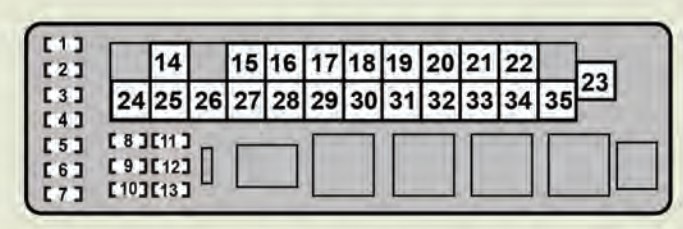

Lexus GS350 - fuse box - engine compartment (type A)
Lexus GS350 – fuse box – engine compartment (type A)
Fuse Ampere rating [A] Circuit protected
1 ECU-B 10 VGRS, EPS, driver’s seat switch module
2 ABS MAIN3 25 Electronically controlled brake system
3 TURN-HAZ 15 Turn signal lights, Emergency flashers
4 IG2 MAIN 20 IG2, GAUGE and IGN
5 RND NO.2 30 Audio system
6 D/C CUT 20 DOME and MPX-B
7 RND NO.1 30 Audio system
8 MPX-B 10 Multiplex communication system, front controller, door control system (power door lock system, door courtesy lights, power windows, power rear view mirror control system, outside
rear view mirror heaters), power seat system, steering sensors, electronically controlled brake system, tilt and telescopic steering wheel, gauges and meters, combination switch
9 DOME 10 Foot lights, vanity lights, gauges and meters, steering spot light, steering switch illumination, rear personal lights, automatic transmission selector lever spot light, front personal lights
10 CDS 10 Noise filter
11 ABS MAIN2 10
12 ABS MOTOR 30
13 ABS MAIN1 10
14 E/G-B 60 FR CTRL BATT, ETCS, ALT-S and A/F HTR
15 ABS1 50 VDIM
16 RH J/B-B 30 AM2, DOOR FR, and DOOR RR
17 VGRS 40 VGRS
18 MAIN 30 H-LP R LWR and H-LP L LWR
19 STARTER 30 Starting system
20 LH J/B-B 30 FL DOOR, RL DOOR and RND NO.3
21 P/I-B 60 EFI NO.1, F/PMP and INJ
22 EPS 80 EPS
23 ALT 150 RH J/B-AM, LH J/B-AM, E/G-AM, RR JB, HEATER, DEFOG, FAN1, FAN2, ABS2, ABS MOTOR, ABS MAIN1, and ABS MAIN2
24 RR J/B 80 STOP LP R, STOP LP L, RR-B, RR TAIL, RR FOG, RR-IG1, PSB, and RR S/SHADE
25 GLW PLG1 50 Starting system
26 RH J/B-AM 80 AM1, OBD, STOP SW, TI&TE, PWR OUTLET, FR P/SEAT RH, STR LOCK, ECU-IG RH, RH-IG, ACC, CIG, SECURITY, FR S/HTR RH and AIR SUS
27 ABS2 30
28 DEFOG 50 Rear window defogger, noise filter
29 CDS 40 CDS
30 FAN1 40
31 HEATER 50 Air conditioning system
32 GLW PLG2 50 Starting system
33 E/G-AM 60 H-LP CLN, FR CTRL ALT, A/C COMP and STB-AM
34 LH J/B-AM 80 S/ROOF, P/SEAT, TV, FL S-HTR, ECU-IG L, WIP, H-LP LVL, LH-IG, FUEL OPN, A/C, PANEL, LH-B and TRK OPN
35 FAN2 60 Electric cooling fans

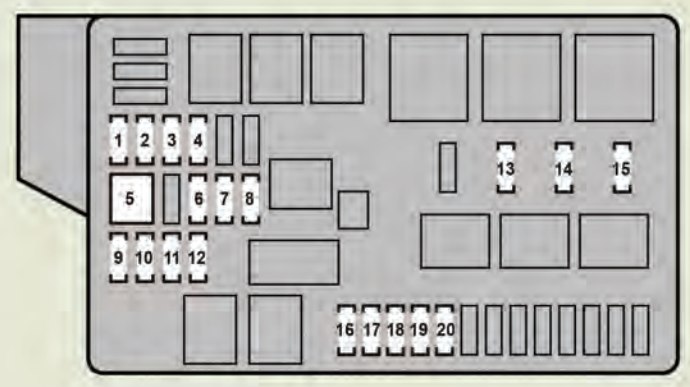

Engine compartment (Type B)

Lexus GS350 - fuse box - engine compartment (type B)
Lexus GS350 – fuse box – engine compartment (type B)
Fuse Ampere rating [A] Circuit protected
1 FR CTRL-B 25 H-LP UPR and HORN
2 A/F 15 Exhaust system
3 ETCS 10 Electronic throttle control system
4 ALT-S 7,5 Charging system
5 H-LP CLN 30 Headlight cleaner
6 A/C COMP 7,5 Air conditioning system
7 DEICER 25
8 FR CTRL-AM 30 FR TAIL, FR FOG and WASHER
9 IG2 10 Ignition system and noise filter
10 EFI NO.2 10 Fuel system, exhaust system
11 H-LP R LWR 15 Headlight low beam (right)
12 H-LP L LWR 15 Headlight low beam (left)
13 F/PMP 25 Fuel system
14 EFI NO.1 25 Multiport fuel injection system/sequential multiport fuel injection system
15 INJ 20 Multiport fuel injection system/sequential multiport fuel injection system
16 H-LP UPR 15 Headlight high beams
17 HORN 10 Horns
18 WASHER 20 Windshield wipers and washer
19 FR TAIL 10 Parking lights, side marker light
20 FR FOG 15 Front fog lights

Left side instrument panel

Lexus GS350 - fuse box - left side instrument panel
Lexus GS350 – fuse box – left side instrument panel
Fuse Ampere rating [A] Circuit protected
1 FR P/SEAT LH 30 Power seat system
2 A/C 7,5 Air conditioning system
3 TV 7,5 Audio system, Air conditioning system, Rear view monitor system
4 TRK OPN 10 Trunk lid opener
5 LH-B 10 Multiport fuel injection system/sequential multiport fuel injection system
6 S/ROOF 25 Moon roof
7 PANEL 7,5 Steering switch illumination, audio system, glove box light, automatic transmission selector lever illumination, console box light, adaptive variable suspension switch illumination, cigarette lighter illumination, air conditioning system, VSC OFF switch illumination, driving pattern selector switch, seat heater or heated and
ventilated seat switches, register ILL RH, register ILL LH, fuel filler door and trunk lid opener switch illumination, D-SW module
8 FUEL OPEN 10 Fuel filler door opener, Trunk lid opener
9 ECU-IG LH 10 VDIM, electronically controlled brake system, yaw rate and G sensor, steering sensor, cruise control system, dynamic radar cruise control system, EPS, VGRS, rear view monitor system, four-wheel drive system, front controller, moon roof, rain sensor
10 FR S/HTR LH 15 Seat heaters and ventilators
11 RR DOOR LH 20 Rear left door control system (power door lock system, door courtesy light, power window)
12 FR DOOR LH 20 Front left door control system (power door lock system, power rear view mirror control system, door courtesy light, outside rear view mirror heater, power window)
13 RAD NO.3 10 Audio system
14 H-LP LVL 7,5 AFS, Automatic headlight leveling control system
15 LH-IG 10 Charging system, headlight cleaners, exhaust gas sensor, rear window defogger, electric cooling fans, rear left door control system, front left door control system, emergency flashers, automatic transmission, seat belt pretensioners, Intuitive parking assist, power window
16 FR WIP 30 Windshield wipers and washer

Right side instrument panel

Lexus GS350 - fuse box - right side instrument panel
Lexus GS350 – fuse box – right side instrument panel
Fuse Ampere rating [A] Circuit protected
1 FR P/SEAT RH 30 Power seat system
2 OBD 7,5 On-board diagnosis system
3 STOP SW 7,5 Stop/tail lights, multi-port fuel injection system/sequential multiport fuel injection system, starting system, electronically controlled brake system, Enhanced VSC system, shift lock system, ECT ECU
4 AM1 7,5
5 TI&IE 20 Tilt and telescopic steering wheel, multiplex communication system
6 SECURITY 7,5 Smart access system with push-button start
7 STR LOCK 25 Steering lock system
8 GAUGE 7,5 Gauges and meters
9 IGN 10 Multi-port fuel injection system/sequential multiport fuel injection system, SRS airbag system, stop/tail lights, steering lock system, electronically controlled brake system, occupant classification system ECU
10 ACC 7,5 Multiplex communication system, smart access system with push-button start, rear view monitor system, audio system, air conditioning system
11 CIG 15 Cigarette lighter
12 PWR OUTLET 15 Power outlet
13 AIR SUS 20 Adaptive variable suspension system
14 RR DOOR RH 20 Rear right door control system (power door lock system, door courtesy light, power window)
15 FR DOOR RH 20 Front right door control system (power door lock system, power rear view mirror control system, door courtesy light, outside rear view mirror heater, power window), multiplex communication system
16 AM2 15 Starting system
17 RH-IG 7,5 Seat heater switches, front right door control system, rear right door control system, capacitor, combination switch, seat belt pretensioners, shift lever switch, power window
18 FR S/HTR RH 15 Seat heaters and ventilators
19 ECU-IG RH 10 Tilt and telescopic steering, combination switch, multiplex communication system, power seat, smart entry & start system, air conditioning system, audio system, shift lock system

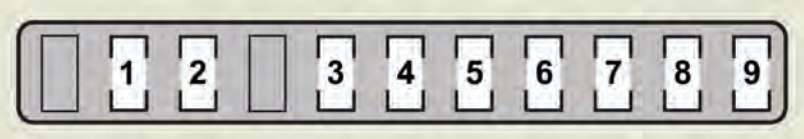

Luggage compartment

Lexus GS350 - fuse box - luggage compartment
Lexus GS350 – fuse box – luggage compartment
Fuse Ampere rating [A] Circuit protected
1 RR S/SHADE 7,5 Rear sunshade
2 PSB 30 Pre-collision seat belt
3 RR-IG2 10
4 RR-IG1 10 Pre-collision seat belt, seat belt pretensioners, A/P UNIT, rear sunshade
5 RR-B 10 Trunk light, noise filter
6 RR FOG 7,5
7 STOP LP L 10 Stoplights, back-up light
8 STOP LP R 10 High mounted stoplights
9 RR TAIL 10 Tail lights, license plate lights, rear side marker lights

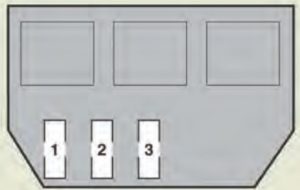

Luggage compartment (vehicles with active stabilizer suspension system)

Lexus GS350 - fuse box - luggage compartment (vehicle with active stabilizer suspension system)
Lexus GS350 – fuse box – luggage compartment (vehicle with active stabilizer suspension system)
Fuse Ampere rating [A] Circuit protected
1 STB FR 50 Front stabilizer
2 STB RR 30 Rear stabilizer
3 STB DC/DC 30 DC/DC converter

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
