Lexus GS250 (2013 – 2015) – fuse box diagram

Lexus GS250 (2013 – 2015) – fuse box diagram

Year of production: 2013, 2014, 2015

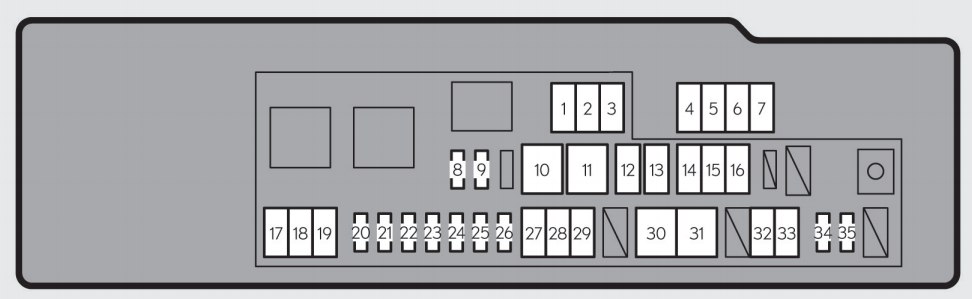

Engine compartment (type A)

Left-hand drive vehicles

Lexus GS250 - fuse box - engine compartment type A (left-hand drive vehicles)
Lexus GS250 – fuse box – engine compartment type A (left-hand drive vehicles)
Fuse Ampere rating [A] Circuit protected
1 LH J/B-B 40 Left-hand junction block
2 VGRS 40 No circuit
3 RH J/B-B 40 Right-hand junction block
4 P/I-B NO.2 80 F/PMP, EFI MAIN, A/F HTR, EDU, IG2 MAIN
5 ALT 150 RH J/B ALT, P/I ALT, LH J/B ALT, LUG J/B ALT
6 P/I ALT 100 RR DEF, TAIL, FR FOG, DEICER, PANEL, RR S/SHADE
7 RH J/B ALT 80 Right-hand junction block
8 MPX-B 10 Smart entry & start system, electric tilt and telescopic steering column, power seats, head-up display, front right-hand door ECU, gauges and meters, steering sensor, yaw rate and G sensor, overhead module, front left-hand door ECU, power trunk lid, RR CTRL SW, clock, body ECU, CAN gateway ECU
9 DOME 7,5 Personal lights, ornament lights, trunk light, footwell lights, door courtesy lights, vanity lights, rear door inside handle illuminations, power trunk lid
10 EPS 80 EPS
11 ARS 80 No circuit
12 HTR 50 Air conditioning system
13 ABS NO.1 40 VDIM
14 LUG J/B ALT 50 Luggage compartment junction block
15 PTC NO.1 50 PTC heater
16 PTC NO.2 50 PTC heater
17 ABS NO.2 50 VDM
18 ST 30 Starting system
19 H-LP LO 30 Headlights, H-LP RLY
20 D/C CUT 30 DOME, MPX-B
21 DCM 7,5 DCM
22 ECU-B 7,5 Smart entry & start system
23 ALT-S 7,5 Charging system
24 ETCS 10 Multiport fuel injection system/sequential multiport fuel injection system
25 HORN 10 Horn
26 R/B-B 20 EPS-B, TV
27 P/I-B NO.1 50 Headlights, daytime running lights, EBS
28 EPB 30 Parking brake
29 LUG J/B-B 40 Luggage compartment junction block
30 FAN NO.1 80 Electric cooling fans
31 LH J/B ALT 60 Left-hand junction block
32 H-LP CLN 30 Headlight cleaner
33 FAN NO.2 40 Electric cooling fans
34 A/C COMP 7,5 Air conditioning system
35 FILTER 10 Condenser

Right-hand drive vehicles

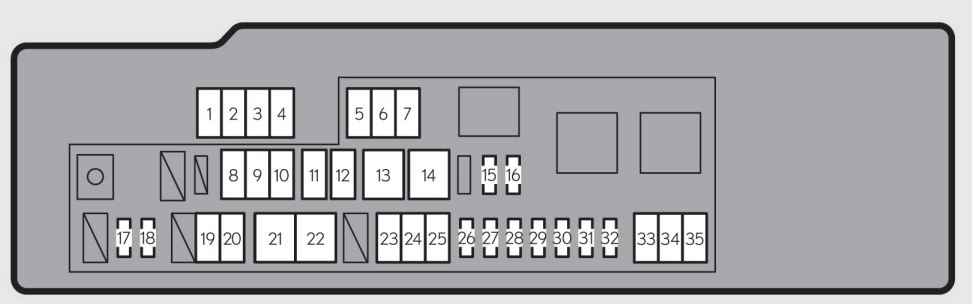

Lexus GS250 - fuse box - engine compartment type A (right-hand drive vehicles)
Lexus GS250 – fuse box – engine compartment type A (right-hand drive vehicles)
Fuse Ampere rating [A] Circuit protected
1 RH J/B ALT 80 Right-hand junction block
2 P/I ALT 100 RR DEF, TAIL, FR FOG, DEICER, PANEL, RR S/SHADE
3 ALT 150 RH J/B ALT, P/I ALT, alternator, LH J/B ALT, luggage compartment junction block
4 P/I-B NO.2 80 F/PMP, EFI MAIN, A/F HTR, EDU, IG2 MAIN
5 RH J/B-B 40 Right-hand junction block
6 VGRS 40 No circuit
7 LH J/B-B 40 Left-hand junction block
8 PTC NO.2 50 PTC heater
9 PTC NO.1 50 PTC heater
10 LUG J/B ALT 50 Luggage compartment junction block
11 ABS NO.1 40 VDIM
12 HTR 50 Air conditioning system
13 ARS 80 No circuit
14 EPS 80 EPS
15 DOME 7,5 Personal lights, ornament lights, trunk light, footwell lights, door courtesy lights, vanity lights, rear door inside handle illuminations, power trunk lid
16 MPX-B 10 Smart entry & start system, electric tilt and telescopic steering column, power seats, head-up display, front right-hand door ECU, gauges and meters, steering sensor, yaw rate and G sensor, overhead module, front left-hand door ECU, power trunk lid, clock, body ECU, RR CTRL SW, CAN gateway ECU
17 FILTER 10 Condenser
18 A/C COMP 7,5 Air conditioning system
19 H-LP CLN 30 Headlight cleaner
20 FAN NO.2 40 Electric cooling fans
21 LH J/B ALT 60 Left-hand junction block
22 FAN NO.1 80 Electric cooling fans
23 P/I-B NO.1 50 H-LP HI RH, H-LP HI LH, DRL, emergency brake signal
24 EPB 30 Parking brake
25 LUG J/B-B 40 Luggage compartment junction block
26 R/B-B 20 EPS-B, TV
27 HORN 10 Horn
28 ETCS 10 Multiport fuel injection system/sequential
multiport fuel injection system
29 ALT-S 7,5 Charging system
30 ECU-B 7,5 Smart entry & start system
31 DCM 7,5 DCM
32 D/C CUT 30 DOME, MPX-B
33 ABS NO.2 50 VDIM
34 ST 30 Starting system
35 H-LP LO 30 Headlights, H-LP RLY

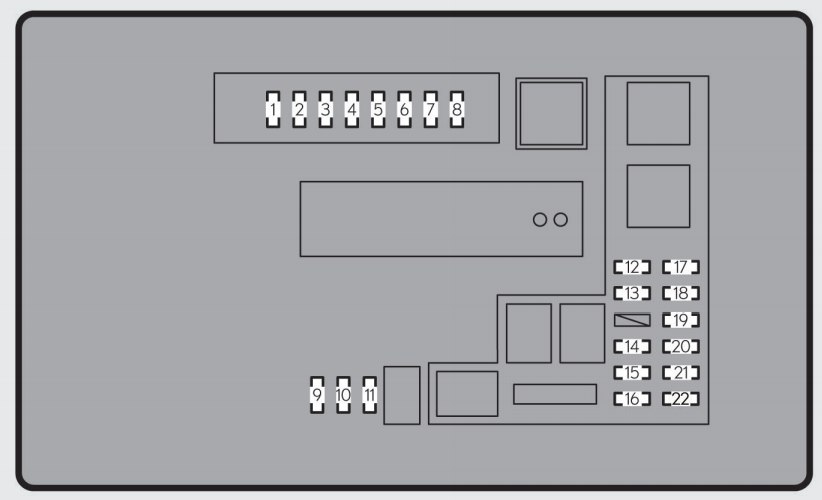

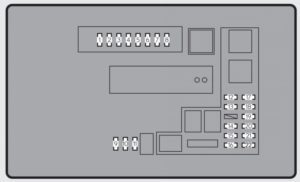

Engine compartment (type B fuse box)

Lexus GS250 - fuse box - engine compartment type B
Lexus GS250 – fuse box – engine compartment type B
Fuse Ampere rating [A] Circuit protected
1 IGN 10 Starting system
2 INJ 10 Multiport fuel injection system/sequential multiport fuel injection system
3 EFI NO.2 10 Fuel system, exhaust system
4 IG2 MAIN 20 IGN, GAUGE, INJ, AIR BAG, IG2 NO.1, LH-IG2
5 EFI MAIN 25 Multiport fuel injection system/sequential multiport fuel injection system, EFI NO.2
6 A/F 15 Air intake system
7 EDU 20 Multiport fuel injection system/sequential multiport fuel injection system
8 F/PMP 25 Multiport fuel injection system/sequential multiport fuel injection system
9 SPARE 30 Spare fuse
10 SPARE 20 Spare fuse
11 SPARE 10 Spare fuse
12 H-LP LH-LO 20 Left-hand headlight
13 H-LP RH-LO 20 Right-hand headlight
14 WASH-S 5 Driver support system
15 WIP-S 7,5 Windshield wipers, power management system
16 COMB SW 5 Windshield wipers
17 TV 7,5 Remote Touch screen
18 EPS-B 5 Electric power steering
19 ODS 5 No circuit
20 IG2 NO.1 5 Power management system, DCM, CAN gateway ECU
21 GAUGE 5 Gauges and meters
22 IG2 NO.2* 5 Multiport fuel injection system/sequential multiport fuel injection system
*: 8-speed models

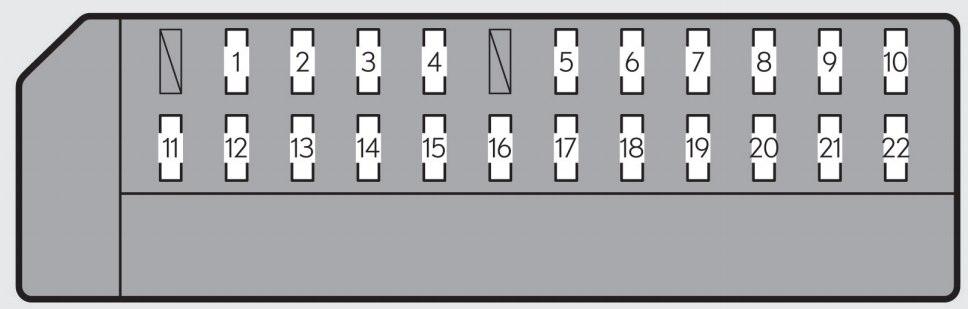

Left side instrument panel (left-hand drive vehicles)

Lexus GS250 - fuse box - left side instrument panel (left-hand drive vehicle)
Lexus GS250 – fuse box – left side instrument panel (left-hand drive vehicle)
Fuse Ampere rating [A] Circuit protected
1 STOP 7,5 Stop lights, high mounted stoplight
2 P/W-B 5 Power window master switch
3 P/SEAT1 F/L 30 Power seats
4 D/L NO.1 25 Power door lock system
5 NV-IR 10 No circuit
6 FL S/HTR 10 Seat heaters/ventilators
7 WIPER 30 Windshield wipers
8 WIPER-IG 5 Windshield wipers
9 LH-IG 10 Seat belts, body ECU, AFS, overhead module, raindrop sensor, inside rear view mirror, lane camera sensor (LKA), headup display, shift lock system, Lexus parking assist-sensor, front left-hand door ECU, driver monitor system, Remote Touch screen, electric tilt and telescopic steering column, power seats, moon roof, Lexus parking assist-sensor switch
10 LH ECU-IG 10 VDIM, D-SW MODULE (Blind Spot Monitor, heated steering wheel), driver support system, AFS, EPB
11 DOOR FL 30 Outside rear view mirror defoggers, power window (front left-hand)
12 CAPACITOR (HV) 10 No circuit
13 STRG LOCK 15 Steering lock
14 D/L NO.2 25 Power door lock system
15 DOOR RL 30 Power window (rear left-hand)
16 HAZ 15 Turn signal lights, emergency flashers
17 LH-IG2 10 Multiport fuel injection system/sequential multiport fuel injection system, stop lights, smart entry & start system, steering lock system
18 LH J/B-B 7,5 Body ECU
19 S/ROOF 20 Moon roof
20 P/SEAT2 F/L 25 Power seats
21 TI & TE 20 Electric tilt and telescopic steering column
22 A/C 7,5 Air conditioning system

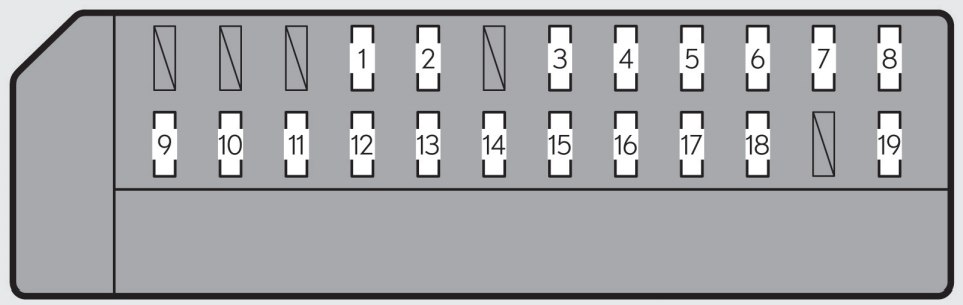

Left side instrument panel (right-hand drive vehicles)

Lexus GS250 - fuse box - left side instrument panel (right-hand drive vehicle)
Lexus GS250 – fuse box – left side instrument panel (right-hand drive vehicle)
Fuse Ampere rating [A] Circuit protected
1 P/SEAT1 F/L 30 Power seats
2 D/L NO.1 25 Power door lock system
3 NV-IR 10 No circuit
4 FL S/HTR 10 Seat heaters/ventilators
5 STRG HTR 15 Heated steering wheel
6 WIPER-IG 5 Windshield wipers
7 LH-IG 10 Seat belts, body ECU, AFS, Remote Touch screen, overhead module, raindrop sensor, moon roof, inside rear view mirror, LKA, front left-hand door ECU, Lexus parking assist-sensor, power seats, CAN gateway ECU
8 LH ECU-IG 10 Yaw rate and G sensor, air conditioning system, AFS, driver support system
9 DOOR FL 30 Outside rear view mirror defoggers, power window (front left-hand)
10 CAPACITOR (HV) 10 No circuit
11 AM2 7,5 Power management system, smart entry & start system
12 D/L NO.2 25 Power door lock system
13 DOOR RL 30 Power window (rear left-hand)
14 HAZ 15 Turn signal lights, emergency flashers
15 LH-IG2 10 Multiport fuel injection system/sequential multiport fuel injection system, stop lights, smart entry & start system, steering lock system
16 LH J/B-B 7,5 Body ECU
17 S/ROOF 20 Moon roof
18 P/SEAT2 F/L 25 Power seats
19 A/C 7,5 Air conditioning system

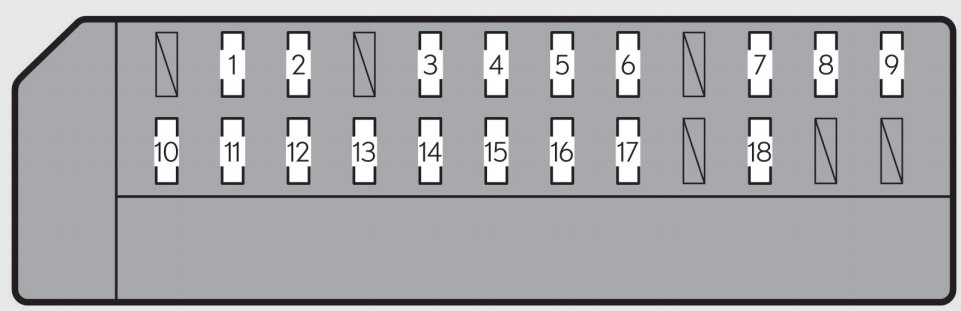

Right side instrument panel (left-hand drive vehicles)

Lexus GS250 - fuse box - right side instrument panel (left-hand drive vehicle)
Lexus GS250 – fuse box – right side instrument panel (left-hand drive vehicle)
Fuse Ampere rating [A] Circuit protected
1 P/SEAT1 F/L 30 Power seats
2 FR P/OUTLET 15 Power outlet (front)
3 RR P/OUTLET 15 Power outlet (rear)
4 P/SEAT2 F/R 25 Power seats
5 AVS 20 AVS
6 STRG HTR 15 Heated steering wheel
7 WASH 20 Windshield washer
8 RH ECU-IG 10 Navigation system, pre-crash seat belts, air conditioning system
9 RH-IG 10 Tension reducer, seat heater/ventilator switches, AWD system, front right-hand door ECU, nanoe, CAN gateway ECU, tire pressure warning system, power seats, driver monitor system
10 DOOR FR 30 Front right-hand door control system (outside rear view mirror defoggers, power window)
11 DOOR RR 30 Power window (rear right-hand)
12 RAD NO.2 30 Audio system
13 AM2 7,5 Smart entry & start system
14 MULTIMEDIA 10 Navigation system, Remote Touch
15 RAD NO.1 30 Audio system
16 AIR BAG 10 SRS airbag system
17 OBD 7,5 On-board diagnosis system
18 ACC 7,5 Body ECU, head-up display, RR CTRL, navigation system, transmission, Remote Touch, DCM, Remote Touch screen

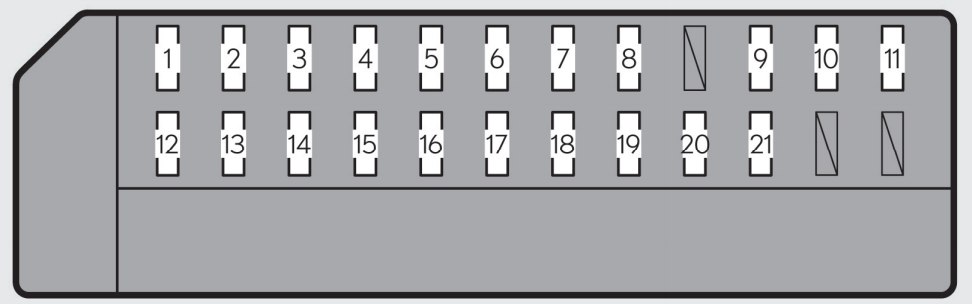

Right side instrument panel (right-hand drive vehicles)

Lexus GS250 - fuse box - right side instrument panel (right-hand drive vehicle)
Lexus GS250 – fuse box – right side instrument panel (right-hand drive vehicle)
Fuse Ampere rating [A] Circuit protected
1 STOP 7,5 Stop lights, high mounted stoplight
2 P/SEAT1 F/R 30 Power seats
3 FR P/OUTLET 15 Power outlet (front)
4 P/W-B 5 Power window master switch
5 RR P/OUTLET 15 Power outlet (rear)
6 P/SEAT2 F/R 25 Power seats
7 AVS 20 AVS
8 WIPER 30 Windshield wipers
9 WASH 20 Windshield washer
10 RH ECU-IG 10 Navigation system, VDIM, D-SW MODULE (Blind Spot Monitor, heated steering wheel)
11 RH-IG 10 Tension reducer, AWD system, power seats, head-up display, front right-hand door ECU, nanoe, shift lock system, electric tilt and telescopic steering column, seat heater/ventilator switches, smart entry & start system antennas, tire pressure warning system receiver, driver monitor system
12 DOOR FR 30 Front right-hand door control system (outside rear view mirror defoggers, power window)
13 DOOR RR 30 Power window (rear right-hand)
14 RAD NO.2 30 Audio system
15 STRG LOCK 15 Steering lock system
16 MULTIMEDIA 10 Navigation system, Remote Touch
17 RAD NO.1 30 Audio system
18 AIR BAG 10 SRS airbag system
19 OBD 7,5 On-board diagnosis system
20 TI & TE 20 Electric tilt and telescopic steering column
21 ACC 7,5 Body ECU, head-up display, RR CTRL, navigation system, transmission, Remote Touch, Remote Touch screen

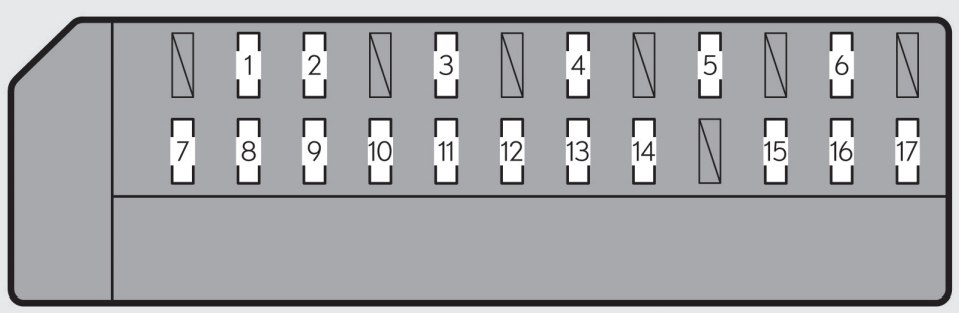

Trunk

Lexus GS250 - fuse box - trunk
Lexus GS250 – fuse box – trunk
Fuse Ampere rating [A] Circuit protected
1 PSB 30 Pre-crash seat belts
2 PTL 25 Power trunk lid
3 RR J/B-B 10 Smart entry & start system
4 RR S/HTR 20 Seat heaters (rear)
5 FR S/HTR 10 Seat heaters/ventilators (front)
6 RR FOG 10 Rear fog light
7 DC/DC-S (HV) 7,5 No circuit
8 BATT FAN (HV) 20 No circuit
9 SECURITY 7,5 SECURITY
10 ECU-B NO.3 7,5 Parking brake
11 TRK OPN 7,5 Power trunk lid
12 DCM (HV) 7,5 No circuit
13 AC INV (HV) 20 No circuit
14 RR-IG1 5 Radar sensor, Blind Spot Monitor
15 RR ECU-IG 10 Power trunk lid, parking brake, tension reducer (rear left-hand), RR CTRL SW, tire pressure warning system
16 EPS-IG 5 Electric power steering system
17 BACK UP 7,5 Back-up light

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
