Lexus ES300 (1996) – fuse box diagram

Lexus ES300 (1996) – fuse box diagram

Year of production: 1996

Instrument panel

Lexus ES300 - fuse box - instrument panel
Lexus ES300 – fuse box – instrument panel

Driver’s side kick panel

Lexus ES300 - fuse box -driver's side kick panel
Lexus ES300 – fuse box -driver’s side kick panel

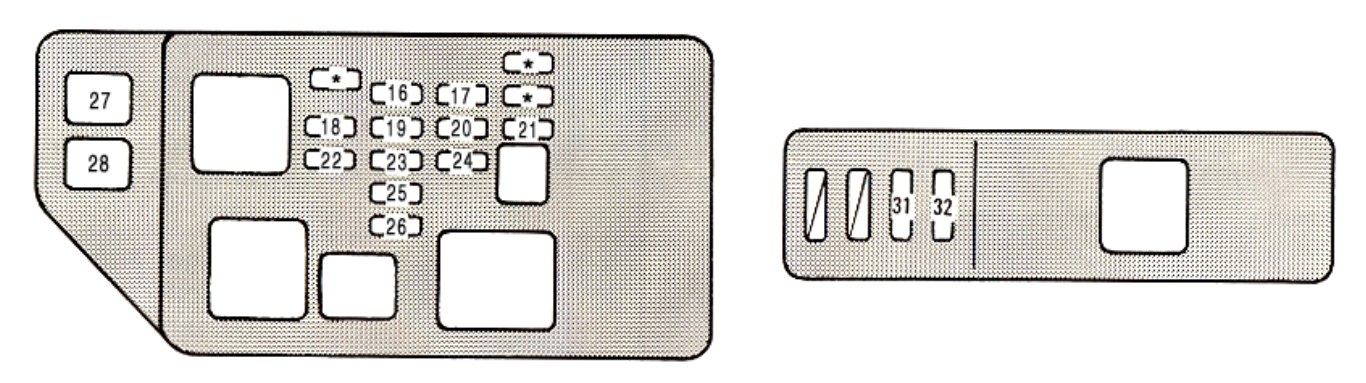

Engine compartment (U.S.A.)

Lexus ES300 - fuse box - engine compartment (U.S.A)
Lexus ES300 – fuse box – engine compartment (U.S.A)

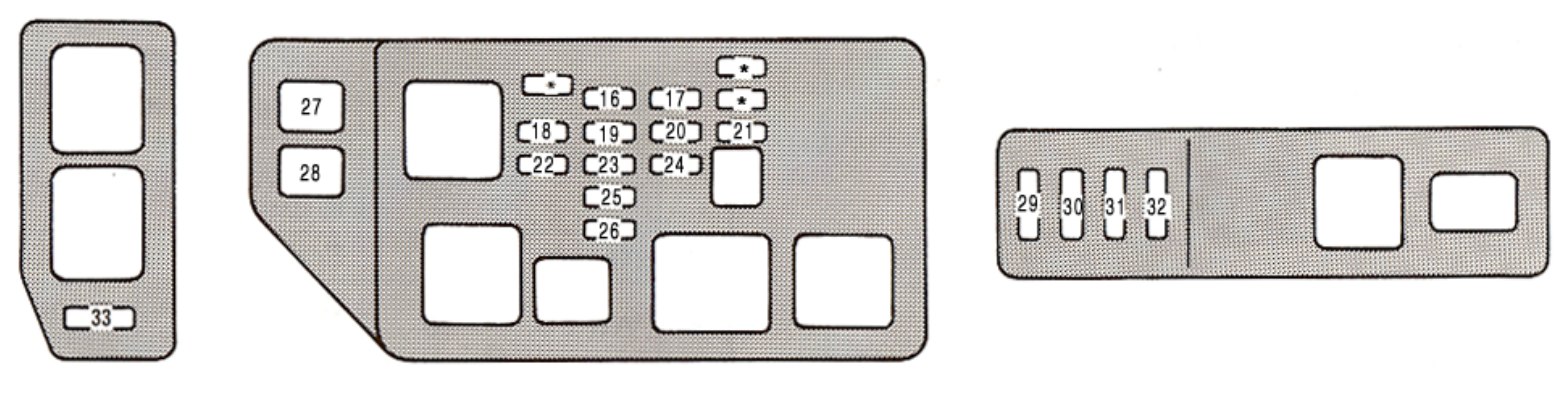

Engine compartment (Canada)

Lexus ES300 - fuse box - engine compartment (Canada)
Lexus ES300 – fuse box – engine compartment (Canada)

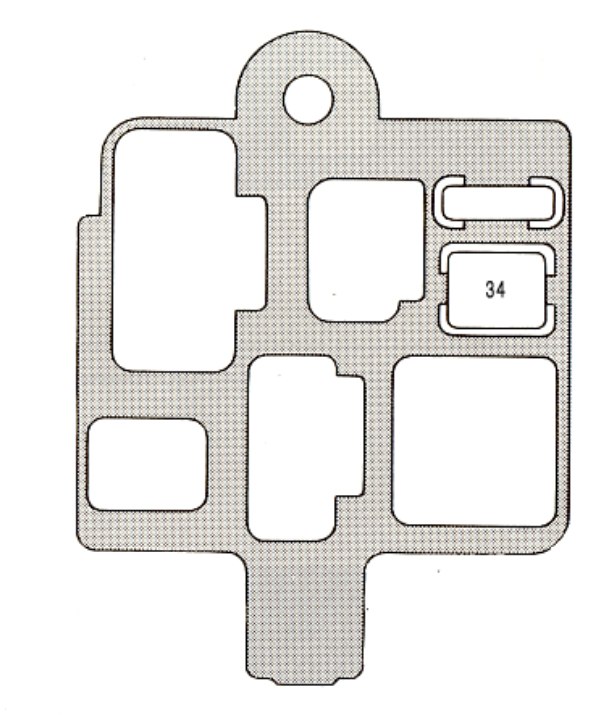

Passenger’s side kick panel

Lexus ES300 - fuse box - passenger's side kick panel
Lexus ES300 – fuse box – passenger’s side kick panel
Fuse Ampere rating [A] Circuit protected
1 ECU-IG 15 Cruise control system, power steering control system, shift lock system, anti-lock brake system. SRS airbag system, power door lock and theft deterrent system, power antenna, telephone, electronic cooling fan system
2 GAUGE 10 Gauges and meters warning lights and buzzers (except discharge and open door warning lights), back-up lights, electronically, controlled automatic transmission system, automatic transmission overdrive system, rear window and outside rear view mirror defogger
3 STOP 25 Stop lights, cruise control system cancel device, shift lock system, anti-lock brake system
4 SEAT HTR 15 Seat heater
5 WIPER 20 Windshield wipers and washer, headlight cleaner
6 TURN 7,5 Turn signal lights
7 IGN 7,5 Multiport fuel injection system/sequential multiport fuel injection system, electronic cooling fan system, SRS airbag system
8 CIG/RADIO 15 Radio, cassette tape player, compact disc player, power antenna, power rear view mirrors, cigarette lighter, theft deterrent system, shift lock system, SRS airbag system, clock
9 MIR-HTR 10 Outside rear view mirror defogger
10 TAIL 15 Tail lights, parking lights
11 ECU-B 15 SRS airbag system
12 STARTER 15 Starting system, multiport fuel injection system/sequential multiport fuel injection system
13 AM1 40 Electronic ignition system/distributor ignition system
14 P/W 30 Electronic moon roof, power windows
15 DEF 40 Rear window and outside rear view mirror defogger
16 OBD.TRAC 7,5 Vehicles sold in U.S.A. – On–board diagnosis system
OBD 7,5 Vehicles sold in Canada – On–board diagnosis system
17 ALT-S 7,5 Charging system
18 EFI 15 Multiport fuel injection system/sequential multiport fuel injection system
19 HAZ 15 Emergency flashers
20 AM2 30 Electronic ignition system/distributor ignition system, multiport fuel injection system/sequential multiport fuel injection system
21 TEL 15 Telephone
22 HORH 15 Horn
23 DOME 20 Radio, cassette tape player, compact disc player, power antenna, interior light, personal lights, door courtesy lights, ignition switch light, trunk room light, electronic moon roof system, instrument panel lights, door lock and theft deterrent system, locking with wireless remote control system
24 ECU-B 15 SRS airbag system, antilock brake system, daytime running light system
25 HEAD (LH) 15 Vehicles sold in U.S.A. – Left–hand headlight
HEAD HI (LH) Vehicles sold in Canada – Left–hand headlight (high beam)
26 HEAD (RH) 15 Vehicles sold in U.S.A. – Right–hand headlight
HEAD HI (RH) 15 Vehicles sold in Canada – Right–hand headlight (high
beam)
27 ALT 100 Charging system
28 ABS 60 Anti-lock brake system
29 HEAD (LWR-LH) 15 Vehicles sold in Canada – Left-hand headlight (low beam)
30 HEAD (LWR-RH) 7,5 Vehicles sold in Canada – Right-hand headlight (low beam)
31 FOG 15 Fog lights
32 RADIO 20 Radio, cassette tape player, compact disc player, power antenna
33 DRL 7,5 Vehicles sold in Canada – Daytime Running Light System
34 HTR 40 Environmental control system
* SPA Spare fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
