Lancia Ypsilon (2003 – 2011) – bulb specification

Lancia Ypsilon (2003 – 2011) – bulb specification

Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

Type of bulbs

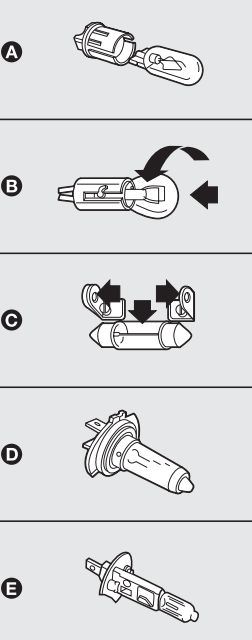

Lancia Ypsilon mk1 - bulbs
Lancia Ypsilon mk1 – bulbs

A – All glass bulbs: these are pressed on. Pull to remove

B – Bayonet type bulbs: press the bulb, turn counterclockwise to remove this type of bulb from its holder

C – Tubular bulbs: free them from their contacts to remove

D-E – Halogen bulbs: to remove, free it from the clip on its housing

Bulbs Figure Type Power
Main beam headlights D H3 55W
Dipped beam headlights D H7LL 55W
Front side lights A W5WLL 5W
Front fog lights (where provided) E H1 55W
Front direction indicators B PY21W 21W
Side direction indicators A WY5W 5W
Rear direction indicators B P21W 21W
Taillights B P21/5W 21W
Brake lights B P21/5W 21W
Third stop (additional brake light) A W2,3W 2,3W
Reversing light B P21W 21W
Rear fog light B P21W 21W
Number plate light C C5W 5W
Ceiling light A W5W 10W/20W
Boot light A W5W 5W

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
