Lancia Thesis (2001 – 2009) – bulbs specification

Lancia Thesis (2001 – 2009) – bulbs specification

Year of production: 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009

Type of bulbs

Lancia Thesis - bulbs
Lancia Thesis – bulbs

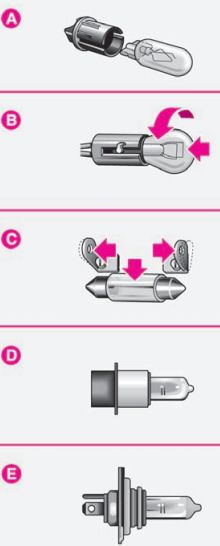

A – All glass bulbs Snapped into position. Pull to remove

B – Bayonet connection bulbs Remove from the bulb holder by pressing the bulb and rotating it anticlockwise

C – Cylindrical bulbs Remove by pulling away from terminals

D – E Halogen bulbs To remove the bulb, release the clip holding the bulb in place

Bulb Figure Type Power
Main beam headlights/Dipped beam headlights Gas-discharge 35W
Additional main beam headlights E H7 55W
Front sidelights B H6W 6W
Front direction indicators B H21W 21W
Side direction indicators A WY5W 5W
Rear direction indicators LED
Front fog lights E H3 55W
Taillights LED
Brake lights LED
Third brake light LED
Reversing light B P21W 21W
Rear fog lights B P21W 21W
Number plate light C C5W 5W
Front ceiling light A Halogen 10W
Courtesy lights A Halogen 5W
Rear ceiling light A Halogen 5W
Courtesy mirrors C C5W 5W
Glove compartment A W5W 5W
Boot A Halogen 10W
Doors A W5W 5W

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
