Kubota Tractor M6040 – fuse box diagram
Year of production:
Fuse box

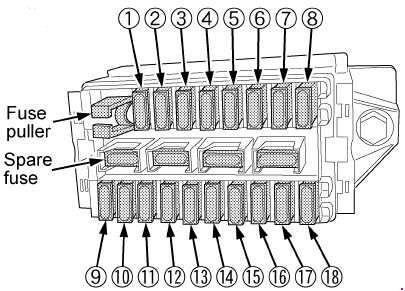

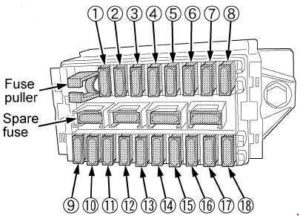

Number | Ampere ratting [A] | Protected circuit |
1 | 5 | Starter Relay |
2 | 15 | Auxiliary Power/Air Suspension Seat (if equipped) |
3 | 15 | Work Light (Front, Side) |
4 | 10 | Air Conditioner (Compressor) |
5 | 30 | Air Conditioner (Fan Motor) |
6 | 15 | Cigarette Lighter |
7 | 15 | Work Light (Front) |
8 | 15 | Work Light (Rear) |
9 | 20 | Spare Fuse |
10 | 20 | Flasher (Hazard) |
11 | 20 | Head Light, Tail Lamp |
12 | 10 | Meter, Radio (Back Up), Horn |
13 | 10 | Turn Signal, Stop Lamp |
14 | 5 | Meter Panel, OPC |
15 | 5 | Alternator, Engine, Heater |
16 | 15 | Wiper |
17 | 5 | Air Conditioner (Control) |
18 | 5 | Radio |

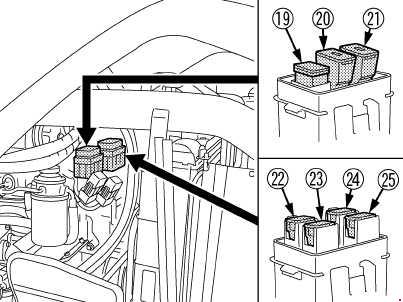

Number | Ampere ratting [A] | Protected circuit |
19 | 100 | Charge |
20 | 50 | Air Heater |
21 | 50 | Head Light, Hazard |
22 | 30 | Work Light, Fuel Cut Solenoid |
23 | 30 | Key Switch |
24 | 30 | Electrical Outlet |
25 | 40 | Air Conditioner |

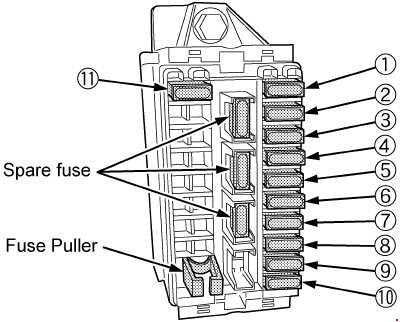

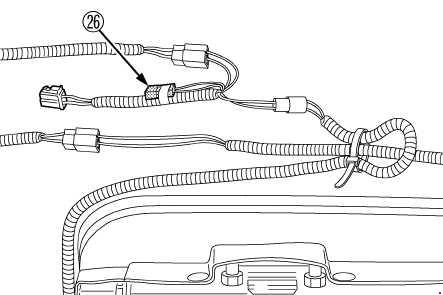

Number | Ampere ratting [A] | Protected circuit |
26 | 15 | Air Suspension Seat (if equipped) |
Number | Ampere ratting [A] | Protected circuit |
1 | 15 | Work Light (R) |
2 | 15 | Work Light (L) |
3 | 5 | Alternator, Engine, Glow Plug |
4 | 5 | Meter Panel, OPC |
5 | 10 | Turn Signal |
6 | 15 | Auxiliary Power |
7 | 5 | Meter (Back Up) |
8 | 20 | Head Light, Tail Lamp |
9 | 15 | Flasher (Hazard) |
10 | 5 | Starter Relay |
11 | 10 | Horn |

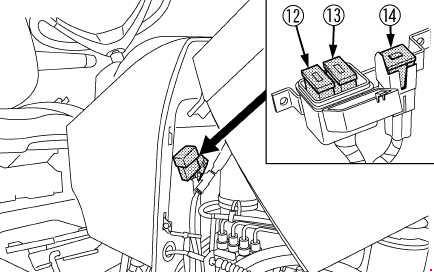

Number | Ampere ratting [A] | Protected circuit |
12 | 40 | Key switch, Head Light, Hazard |
13 | 30 | Fuel Cut Solenoid, Work Light |
14 | 50 | Charge, Glow Plug |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
