KIA Soul (2012 – 2013) – fuse box diagram

KIA Soul (2012 – 2013) – fuse box diagram

Year of production: 2012, 2013

Inner fuse panel

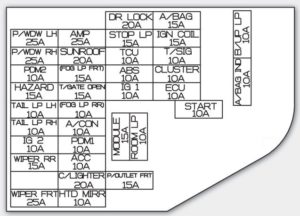

KIA Soul - fuse box diagram - instrument panel
KIA Soul – fuse box diagram – instrument panel
Description Ampere rating [A] Protected component
P/WDW LH 25 Power Window Main Switch, Rear Power Window Switch LH
P/WDW RH 25 Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH
PDM 2 10 PDM,Start/Stop Button Switch, Fob Holder
HAZARD 15 Hazard Relay, Hazard Switch, One Touch Flasher Unit
TAIL LP LH 10 Rear Combination Lamp LH, Head Lamp LH, License Lamp
TAIL LP RH 10 Rear Combination Lamp RH, Head Lamp RH, Audio, Passenger Power Window Switch, Rheostat, Power Window Main Switch, Hazard Switch, Instrument Cluster, Mood Lamp Switch, AUX & USB Jack, ESC Switch, A/C Control Module, Multifunction Switch, Driver/Passenger Seat Warmer Switch, ATM Shift Lever Indicator, Glove Box Lamp, A/V & Navigation Head Unit, Telltale Lamp, ISG Switch, Active ECO Switch, /V & Navigation Touch, AUX Jack
IGN 2 10 BCM, Sunroof Motor
WIPER RR 15 Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch (Wiper)
WIPER FRT 25  E/R Fuse & Relay Box (Wiper Relay), Front Wiper Motor, Multifunction Switch (Wiper)
AMP 25 AMP, ISG Low DC – DC Converter (AMP)
SUNROOF 20 Sunroof Motor
(FOG LP FRT) 15 Front Fog Lamp Relay
T/GATE OPEN 15 Tail Gate Relay, Data Link Connector, DRL Relay
(FOG LP(RR)) 10
A/CON 10 A/C Control Module, E/R Fuse & Relay Box (H/LP HI Relay, Blower Relay), Active Incar Sensor, A/V & Navigation Touc
PDM 1 10 PDM
ACC 10 Audio, Mood Lamp Module, Power Outside Mirror Switch, Smart Key Control Module, PDM, ATM Key Lock Control Module, A/V & Navigation Head Unit, BCM, AMP, A/V & Navigation Touch, ISG Low DC – DC Converter (Audio/AMP)
C/LIGHTER 20 Cigarette Lighter, Rear Power Outlet
HTD MIRR 10 ECM/PCM, Driver/Passenger Power Outside Mirror, A/C Control Module, A/V & Navigation Touch
DR LOCK 20 Door Lock Relay, Door Unlock Relay, 2 Turn Lock Relay
STOP LP 15 Stop Lamp Switch, Multipurpose Check Connector, HAC Relay, Stop Lamp Relay, Sport Mode Switch, Key Solenoid
TCU 10 Vehicle Speed Sensor (M/T), ATM Shift Lever  ndicator, ATM Key Lock Control Module, Transaxle Range Switch
ABS 10 ESC Module, ESC Switch, E/R Fuse & Relay Box (Multipurpose Check Connector)
IGN 1 10 Tire Pressure Monitoring Module, ISG Low DC – DC Converter (Audio/AMP), Driver/Passenger Seat Warmer Switch, Driver/Passenger Seat Warmer, ISG Switch, Electro Chromic Mirror, Oil Pump Invertor, Stop Lamp Switch, HAC Relay
P/OUTLET FRT 15 Rear Power Outlet
A/BAG 15 SRS Control Module, Weight Classification Module, Telltale Lamp
IGN COIL 15 G4FD : Condenser, Ignition Coil #1 ~ #4
T/SIG 10 Hazard Switch, Multifunction Switch (Light)
CLUSTER 10 BCM, Instrument Cluster (IND.), A/C Control Module, Smart Key Control Module, PDM
ECU 10 ECM, PCM
START 10 E/R Fuse & Relay Box (Start Relay), PDM, Transaxle Range Switch, Ignition Lock Switch, PCM/ECM
B/UP LP 12 Back-up Lamp Switch (M/T)
A/BAG IND 10 Instrument Cluster (Air Bag IND.)
POWERCONNECTOR 15 –  MODULE Audio, RF Receiver, A/V & Navigation Touch, ISG Low DC – DC Converter (Audio), A/V & Navigation Head Unit
10 – ROOM LP BCM, Instrument Cluster (IND.), A/C Control Module, Tire Pressure Monitoring Module, Center Room Lamp, Luggage Lamp,
Overhead Console Assembly (Map Lamp), Ignition Key ILL. & Door Warning Switch, Vanity Lamp LH/RH

Engine compartment fuse panel

KIA Soul - fuse box diagram - engine compartment
KIA Soul – fuse box diagram – engine compartment

Engine 1.6

Description Ampere rating [A] Protected component
MULTI FUSE B+ 1 50 I/P Junction Box (Power Window Relay, Fuse – P/WDW LH 25A, P/WDW RH 25A, PDM 2 10A, HAZARD 15A)
INVERTER 50 Oil Pump Invertor
ALT 125 Alternator, Fuse (ABS 2 40A, ABS 1 40A, RR HTD 40A, BLOWER1 40A, MDPS 80A, A/CON 10A
ABS 1 40 ESC Module
ABS 2 40 ESC Module
RR HTD 40 I/P Junction Box (Rear Defogger Relay)
BLOWER 1 40 Blower Relay
MDPS 1 80 EPS Control Module
FUSE IG 2 40 Ignition Switch, PDM Relay Box(IG 1 Realy), Start Relay
IG 1 40 Ignition Switch, PDM Relay Box(IG 2 Realy)
ECU 1 30 Engine Control Relay
H/LP 20 H/LP Relay
C/FAN 30 C/Fan HI Relay, C/Fan Low Relay
B+2 50 I/P Junction Box (Tail Lamp Relay, Fuse – TAIL LP LH 10A, TAIL LP RH 10A, SUNROOF 20A, AMP 25A, DR LOCK 20A, STOP LP 15A, T/GATE OPEN 15A, (FOG LP FRT) 15A, Power Connector – ROOM LP 10A, MODULE 15A)
F/PUMP 15 F/Pump Relay
PDM 25 PDM, Smart Key Control Module
SEAT HEATER 20 Driver Seat Warmer, Passenger Seat Warmer
ECU 2 15 PCM/ECM
H/LP HI 20 H/LP HI Relay
HORN 10 Horn Relay
DEDICATE DRL 10 BCM
BLOWER 2 10 A/C Control Module (Auto)
SENSOR 1 10
SENSOR 2 10 C/Fan HI/Low Relay, PCM/ECM, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve, Immobilizer Module, A/Con Relay
IGN COIL 15
ECU 3 20
SENSOR 3 15 Oxygen Sensor (Up/Down), F/Pump Relay, Oil Control Valve #1/#2, PCM/ECM
H/LP LH 10 Head Lamp LH
H/LP RH 10 Head Lamp RH
HTD STRG 15
WIPER 10 PCM
B/UP LP (AP) 10 Electro Chromic Mirror, Rear Combination Lamp LH/RH, Instrument Cluster, A/V & Navigation Head Unit, Audio
MDPS 2 10 EPS Control Module
A/CON 10 A/Con Relay



Engine 2.0

Description Ampere rating [A] Protected component
MULTI FUSE B+ 1 50 I/P Junction Box (Power Window Relay, Fuse – P/WDW LH 25A, P/WDW RH 25A, PDM 2 10A, HAZARD 15A)
INVERTER 50 Oil Pump Invertor
ALT 125 Alternator, Fuse (ABS 2 40A, ABS 1 40A, RR HTD 40A, BLOWER1 40A, MDPS 80A, A/CON 10A
ABS 1 40 ESC Module
ABS 2 40 ESC Module
RR HTD 40 I/P Junction Box (Rear Defogger Relay)
BLOWER 1 40 Blower Relay
MDPS 1 80 EPS Control Module
FUSE IG 2 40 Ignition Switch, PDM Relay Box(IG 1 Realy), Start Relay
IG 1 40 Ignition Switch, PDM Relay Box(IG 2 Realy)
ECU 1 30 Engine Control Relay
H/LP 20 H/LP Relay
C/FAN 30 C/Fan HI Relay, C/Fan Low Relay
B+2 50 I/P Junction Box (Tail Lamp Relay, Fuse – TAIL LP LH 10A, TAIL LP RH 10A, SUNROOF 20A, AMP 25A, DR LOCK 20A, STOP LP 15A, T/GATE OPEN 15A, (FOG LP FRT) 15A, Power Connector – ROOM LP 10A, MODULE 15A)
F/PUMP 15 F/Pump Relay
PDM 25 PDM, Smart Key Control Module
SEAT HEATER 20 Driver Seat Warmer, Passenger Seat Warmer
ECU 2 15 PCM/ECM
H/LP HI 20 H/LP HI Relay
HORN 10 Horn Relay
DEDICATE DRL 10 BCM
BLOWER 2 10 A/C Control Module (Auto)
SENSOR 1 10 Camshaft Position Sensor #1/#2, Oil Control Valve #1/#2, Canister Control Valve, A/Con Relay, Immobilizer Module
SENSOR 2 10 C/Fan HI/Low Relay, Injector #1 ~ #4
IGN COIL 15 Ignition Coil #1 ~ #4, Condenser
ECU 3 20 PCM/ECM
SENSOR 3 15 Oxygen Sensor (Up/Down), F/Pump Relay, Purge Control Solenoid Valve, Variable Intake Solenoid Valve
H/LP LH 10 Head Lamp LH
H/LP RH 10 Head Lamp RH
HTD STRG 15
WIPER 10 PCM
B/UP LP (AP) 10 Electro Chromic Mirror, Rear Combination Lamp LH/RH, Instrument Cluster, A/V & Navigation Head Unit, Audio
MDPS 2 10 EPS Control Module
A/CON 10 A/Con Relay



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
