KIA Sedona (2015 – 2018) – fuse box diagram

KIA Sedona (2015 – 2018) – fuse box diagram

Year of production: 2015, 2016, 2017, 2018

Inner fuse panel

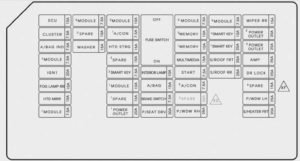

KIA Sedona - fuse box diagram - inner panel
KIA Sedona – fuse box diagram – inner panel
Fuse panel Fuse rating [A] Protected component
ECU 10 PCM, Injector Drive Box, Smart Key Control Module/Immobilizer Module
MODULE4 7,5 Head Lamp Leveling Device Actuator LH/RH, Multipurpose Check Connector, Bezel Switch, MTS Module, Electro Chromic, A/V & Navigation Head Unit, A/C Control Module, Heater Control Module, Passenger Ventilation Seat Control Module, Driver IMS Control Module, Rear Seat Heater Control Module, Auto Head Leveling Device Module, ATM Shift Lever ILL
MODULE3 10 LDWS Module, Stop Lamp, Front Parking Assist Sensor LH/RH, Front Parking Assist Sensor LH/RH (CENTER), Rear Parking Assist Buzzer, Rear Parking Assist Sensor LH/RH, Rear Parking Assist
Sensor LH/RH (CENTER), Blind Spot Detection Radar LH/RH
MODULE5 7,5 Rear Seat Heater Control Module, AC Inverter Unit, Heater Control Module, Passenger Ventilation Seat Control Module, Portable Lamp, Around View Unit
MODULE6 7,5 BCM, Smart Key Control Module
WIPER RR 15 Rear Wiper Motor, Wiper RR Relay
CLUSTER 7,5 Instrument Cluster
A/CON1 7,5 A/C Control Module, Ionizer, Rear A/C Control Switch, PCB Block (Blower Relay, Blower RR Relay)
MEMORY2 10 Data Link Connector, Instrument Cluster, Digital Clock, A/C Control Module, BCM, Power Sliding Door Module, Driver Door Module, Passenger Safety Power Window Switch, Driver IMS Control Module
SMART KEY3 10 Start/Stop Button Switch, Immobilizer Module
POWER OUTLET2 20 Console Power Outlet
A/BAG IND 7,5 Instrument Cluster, Digital Clock, A/C Control Module(Auto)
WASHER 15 Multifunction Switch, BCM
HTD STRG 15 Clock Spring (Steering Wheel Switch)
MEMORY1 10 Clock Spring (Steering Wheel Switch)
SMART KEY1 25 Smart Key Control Module
POWER OUTLET3 20 Rear Power Outlet
MODULE2 7,5 BCM, Driver Door Module, Passenger Door Module
MULTIMEDIA 15 USB Charger #1/#2, MTS Module, Audio, A/V & Navigation Head Unit
S/ROOF FRT 20 Front Sunroof Motor
AMP 25 AMP
IGN1 20 PCB BLOCK (Fuse – ABS3, TCU, MDPS, CRUISE)
SMART KEY2 7,5 Smart Key Control Module
INTERIOR LAMP 10 Portable Lamp, Overhead Console Lamp, Cargo Lamp, Front Vinity Lamp Switch LH/RH, Glove Box Lamp, Key Warning Switch
START 7,5 With IMMO./Smart Key : Transmission Range Switch, W/O IMMO. : PCB Block (B/Alarm Relay)
S/ROOF RR 25 Rear Sunroof Motor
DR LOCK 20 Tail Gate Relay, Door Lock/Unlock Relay, Sliding Door Lock/Unlock Relay
FOG LAMP RR 10
MODULE1 10 Audio, A/V & Navigation Head Unit, Around View Unit, BCM, Overhead Console Lamp, MTS Module, Digital Clock, USB Charger #1/#2
A/BAG 15 SRS Control Module, Passenger Occupant Detection Sensor
A/CON2 7,5 A/C Control Module, Blower Resistor (Manual)
HTD MIRR 10 Passenger Power Outside Mirror, A/C Control Module
BRAKE SWITCH 7,5 Smart Key Control Module, Stop Lamp Switch
P/WDW LH 25 Driver Safety Window Module, Driver Door Module, Rear Power Window Switch LH, Rear Safety Power
Window Switch LH, Rear Safety Power Window Module LH
MODULE7 7,5 Key Inter Lock Solenoid, Fuel Lid Switch, ATM Lever Switch, Rear A/C Control Switch, Electro Chromic
Mirror
POWER OUTLET1 20 Front Power Outlet
P/SEAT DRV 30 Driver Manual Switch, Driver Lumbar Support Switch, Driver IMS Control Module
P/WDW RH 25 Passenger Safety Window Module, Passenger Power Window Motor, Passenger Door Module, Rear Power Window Switch RH, Rear Safety Power Window Switch RH, Rear Safety Power Window Module RH
S/HEATER FRT 20 Heater Control Module, Passenger Ventilation Seat Control Module

Engine compartment fuse panel

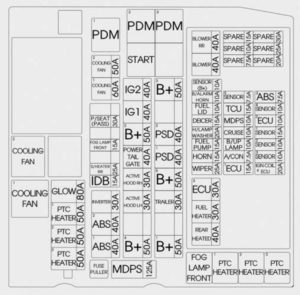

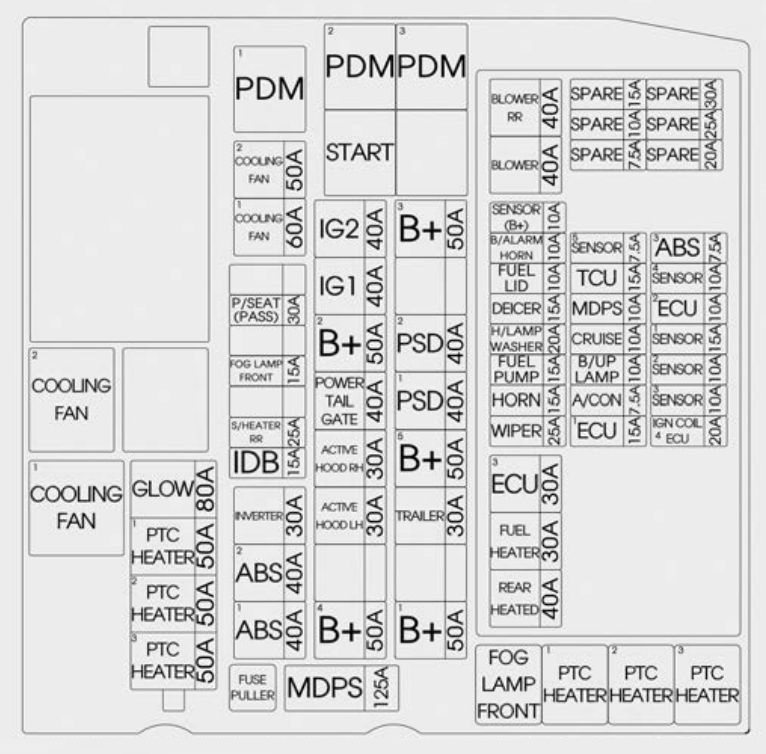

KIA Sedona - fuse box diagram - engine compartment
KIA Sedona – fuse box diagram – engine compartment
Fuse name Fuse rating [A] Circuit protected
ABS1 40 ESC Module, Multipurpose Check Connector
ABS2 40 ESC Module
INVERTER 30 AC Inverter Unit
IDB 15 Injector Drive Box
S/HEATER RR 25 Rear Seat Heater Control Module
FOG LAMP FRONT 15 Fog Lamp Front Relay
P/SEAT (PASS) 30 Passenger Manual Switch
COOLING FAN1 60 Cooling Fna1 Relay
COOLING FAN2 50 Cooling Fna2 Relay
B+4 50 Smart Junction Block (IPS Control Module, IPS3, IPS4, IPS5, IPS6, Fuse – MODULE7)
POWER TAIL GATE 40 Power Tail Gate Module
B+2 50 Smart Junction Block (Leak Current Autocut Device, Fuse – P/SEAT DRV, P/WDW RH)
IG1 40 With Smart Key : PDM1/2 Relay, W/O Smart Key : Ignition Switch
IG2 40 Start Relay, With Smart Key : PDM3 Relay, W/O Smart Key : Ignition Switch,
B+1 50 Smart Junction Block (IPS Control Module, Fuse – P/WDW LH, S/HEATER FRT, DR LOCK)
TRAILER 30 Trailer Power Outlet
B+5 50 Smart Junction Block (Motor Driver, Power Outlet Relay, Fuse – S/ROOF FRT, S/ROOF RR, BRAKE
SWITCH, SMART KEY1, SMART KEY3, AMP
PSD1 40 Power Sliding Door Module
PSD2 40 Power Sliding Door Module
B+3 50 Smart Junction Block (IPS Control Module, IPS1, IPS2)
MDPS 125 MDPS Unit (Rack)
BLOWER RR 40 Blower RR Relay
BLOWER 40 Blower Relay
SENSOR (B+) 10 Battery Sensor
B/ALARM HORN 10 B/Alarm Horn Relay
FUEL LID 10 Fuel Lid Relay
DEICER 15 Deicer Relay
FUEL PUMP 15 Fuel Pump Relay
HORN 15 Horn Relay
WIPER 25 Front Wiper (Low) Relay
ECU3 30 Engine Control Relay, Fuse – ECU1
REAR HEATED 40 Rear Heated Relay
TCU 15 Transmission Range Switch
MDPS 10 MDPS Unit (Rack)
CRUISE 10 Smart Cruise Control Radar
B/UP LAMP 10 Audio, A/V & Navigation Head Unit, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror
A/CON 7,5 Rear A/C Control Switch, A/C Control Module
ECU1 15 PCM
ABS3 7,5 ESC Module, Steering Angle Sensor
ECU2 10 Injector Drive Box
SENSOR1 15 Oxygen Sensor #1/#2/#3/#4, PCM, E/R Junction Box (Cooling Fan1 Relay)
SENSOR2 10 PCM, Canister Close Valve, Variable Intake Solenoid Valve #1/#2, Purge Control Solenoid Valve, Oil Control Valve #1/#2 (Intake), Oil Control Valve #1/#2 (Exhaust
SENSOR3 10 PCM, Fuel Pump Relay
IGN COIL 20 Ignition Coil #1~#6, Condensor #1/#2

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
