KIA Carens (UN; 2006 – 2013) – fuse box diagram
Year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

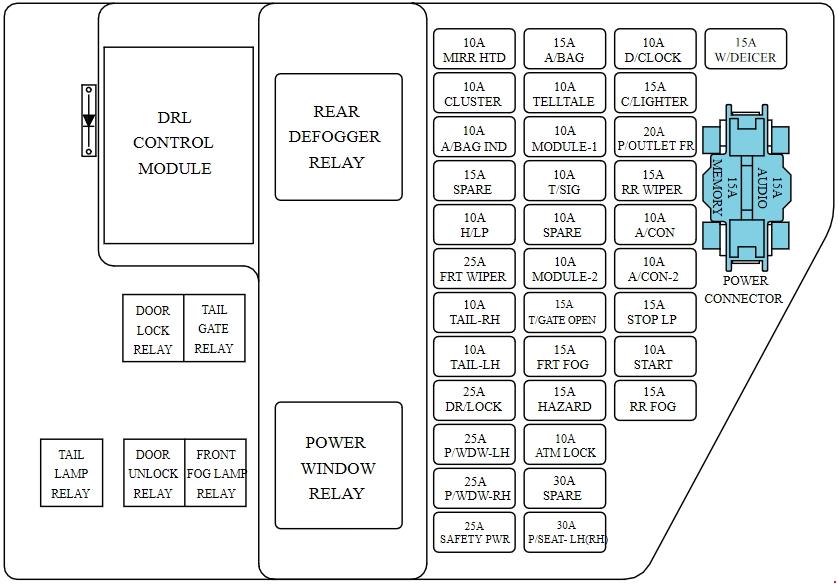

Compartment Fuse Box
| Fuse |
A |
Circuit Protected |
| HEAD LP | 10 | Head lamp relay, AQS sensor, HLLD actuator, PTC heater relay, Fuel filter heater relay |
| FRT. WIPER | 25 | Wiper relay, Wiper motor, Multifunction switch |
| FRT.FOG | 15 | Front fog lamp relay |
| DR.LOCK | 25 | Door lock/unlock relay |
| HAZARD | 15 | Hazard switch, Hazard relay |
| T.GATE | 15 | Fuel filler door switch, Tail gate relay |
| MIRR.HTD | 10 | Outside mirror motor & Defogger, A/C control module |
| MODULE-2 | 10 | Sunroof, Rain sensor, Seat warmer relay, Electro chromic mirror, BCM |
| A.CON | 10 | A/C control module, Blower relay |
| A/CON-2 | 10 | A/C Control Module (Auto) |
| RR.WIPER | 15 | Rear wiper motor, Rear wiper relay, Multifunction switch |
| STOP LP | 15 | Stop lamp switch |
| ATM K/LOCK | 10 | Sport mode switch, Data link connector, A/C control module, Multipurpose check connector |
| START | 10 | Burglar alarm relay |
| RR.FOG | 15 | Rear fog lamp relay |
| W.DEICER | 15 | Windshield defogger relay |
| P-OUTLET-FRT | 20 | Front power outlet |
| SAFETY PWR | 25 | Safety window motor |
| PSEAT-LH/RH | 30 | Driver power seat manual switch |
| TAIL RH | 10 | Head lamp RH, Rear combination lamp RH, License lamp, DRL control module |
| A.BAG IND | 10 | Instrument cluster |
| CLUSTER | 10 | Instrument cluster, Pre-excitation resistor |
| C.LIGHTER | 15 | Cigarette lighter |
| P.WDW-RH/LH | 25 | Power window main switch, Power window switch RH/LH |
| P.WDW-LH/RH | 25 | Power window main switch, Power window switch LH/RH |
| TAIL LH | 10 | Head lamp LH, Rear combination lamp LH, Front fog lamp relay |
| A. BAG | 15 | SRS control module |
| MODULE-1 | 10 | ATM key lock control module, Back warning buzzer, ESP switch, BCM, Auto light control module |
| TELL TAIL | 10 | Digital clock, PAB cut off switch |
| T.SIG | 10 | Hazard switch |
| D.CLOCK | 10 | Power outside mirror switch, Audio, BCM, Digital clock, ATM key lock control module |
| AUDIO | 15 | Audio |
| MEMORY | 15 | BCM, Key ill. switch, Digital clock, Mirror folding relay, Instrument cluster, Room lamp, A/C control module |

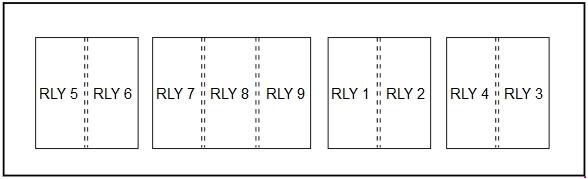

Relay Box
| No. |
Circuit Protected |
| 1 | – |
| 2 | SEAT WARMER |
| 3 | REAR FOG LAMP |
| 4 | RAIN SENSOR |
| 5 | MIRROR FOLDING |
| 6 | WINDSHIELD DEFOGGER |
| 7 | HAZARD |
| 8 | BURGLAR HORN |
| 9 | BURGLAR ALARM |

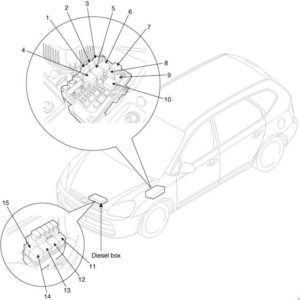

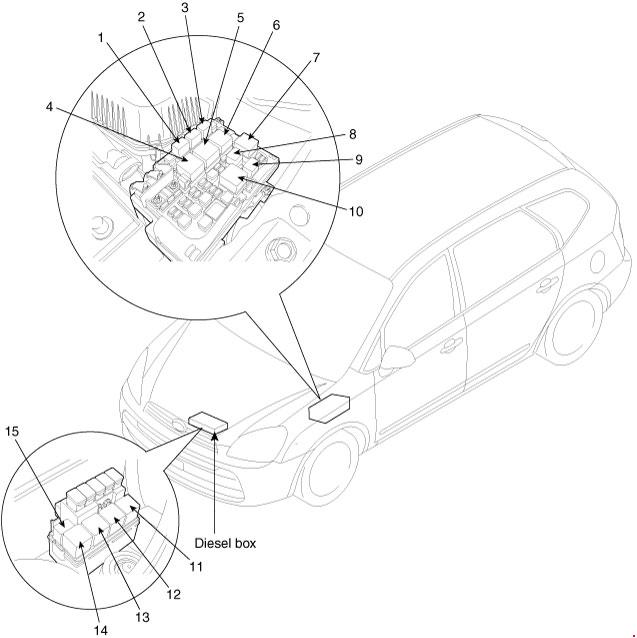

Engine compartment fuse box
- Horn relay
- Head lamp relay (Low-left side)
- Head lamp relay (High)
- Cooling pan relay (High)
- Cooling pan relay (Low)
- Fuel pump relay
- Main relay
- Wiper relay
- A/C relay
- Start relay
- Glow relay
- PTC heater relay #1
- PTC heater relay #2
- PTC heater relay #3
- Fuel filter heater relay

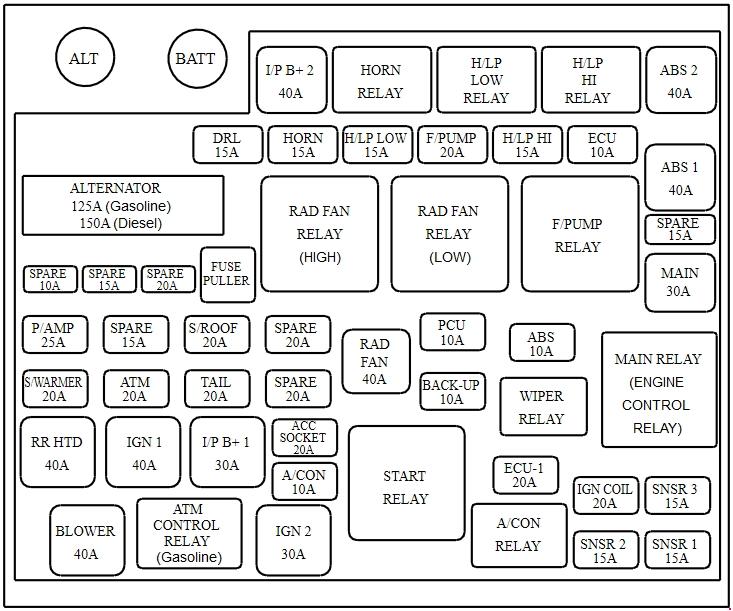

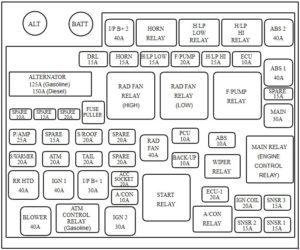

| Fuse |
A |
Circuit Protected |
| ALTERNATOR | 125 | Gasoline:Generator |
| 150 | Diesel: Generator | |
| l/P B+2 | 40 | l/P Junction box |
| ABS 2 | 40 | ABS/ESP control module |
| ABS 1 | 40 | ABS/ESP control module |
| BLOWER | 40 | Blower relay |
| RR HTD | 40 | Rear defogger relay |
| IGN 1 | 40 | Ignition switch(ACC, IG1) |
| RAD FAN | 40 | Radiator fan relay(LOW)/(HIGH) |
| MAIN | 30 | Engine control relay |
| IGN 2 | 30 | Ignition switch(IG2, START), Start relay |
| l/P B+1 | 30 | l/P Junction box |
| S/WARMER | 20 | Seat warmer relay |
| ACC SOCKET | 20 | Rear power outlet |
| ATM | 20 | ATM control relay |
| S/ROOF | 20 | Sunroof control module |
| P/AMP | 25 | Amp |
| F/PUMP | 20 | Fuel pump relay |
| IGN COIL | 20 | Ignition coil(Gasoline) |
| ECU-1 | 20 | ECM |
| TAIL | 20 | Tail lamp relay |
| DRL | 15 | DRL control module |
| HORN | 15 | Horn relay, Burglar horn relay |
| H/LP LOW | 15 | Head lamp relay (Low) |
| H/LP HI | 15 | Head lamp relay (High) |
| SNSR 1 | 15 | D4EA: Immobilizer Control Module, Camshaft Position Sensor, Throttle Control Actuator D4FB: Camshaft Position Sensor, Immobilizer Control Module G4KA:Mass Air Flow Sensor, Canister Purge Solenoid Valve, Camshaft Position Sensor, Crankshaft Position Sensor,Idle Speed Control Actuator, Immobilizer Control Module, Oil Control Valve G4FC: Injector #1~#4, Immobilizer Control Module |
| SNSR 2 | 15 | D4EA: EGR Actuator, Fuel Pump Relay, Fusible Link Box (GLOW PLUG RELAY, PTC HEATER RELAY #1) D4FB: VGT Actuator, Fuel Pressure Regulating Valve, Fuel Pump Relay, Fusible Link Box (GLOW PLUG RELAY, PTC HEATER RELAY #1) G4KA: Fuel Pump Relay, Front/Rear Oxygen Sensor G4FC: Fuel Pump Relay, Idle Speed Control Actuator, Oil Control Valve |
| SNSR 3 | 15 | D4EA: A/CON Relay, Lambda Sensor, Rad Fan (HI/LOW) Relay, Stop Lamp Switch D4FB: Stop Lamp Switch, EGR Cooling Bypass Solenoid, Lambda Sensor, A/CON Relay, Rad Fan (HI/LOW) Relay G4KA: Injector #1~#4, A/CON Relay G4FC: Oxygen Sensor (Up/Down), Camshaft Position Sensor, A/CON Relay, Purge Control Solenoid Valve |
| ECU | 10 | TCM (D4EA), Alternator (D4EA), ECM (G4KA, G4FC M/T) |
| PCU | 10 | ECM/PCM, Rad Fan (HI/LOW) Relay (G4KA, G4FC), Pulse Generator ‘A’ ‘B’, Air Flow Sensor (D4EA/D4FB),Stop lamp switch (G4KA, G4FC), Fuel Filter Warning Sensor (D4EA/D4FB) |
| ABS | 10 | ABS/ESP control module, Multipurpose check connector |
| BACK-UP | 10 | Vehicle speed sensor, Back-up lamp switch, Transaxle range switch |
| A/CON | 10 | A/C relay |

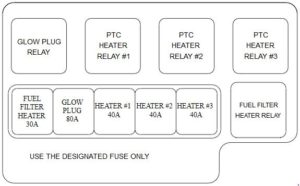

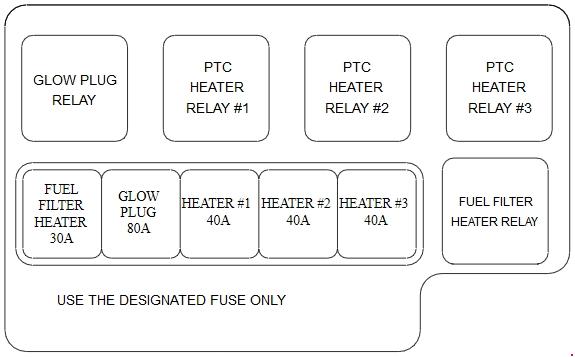

Engine compartment fuse box (Diesel)
| Fuse |
A |
Circuit Protected |
| FUEL FILTER HEATER | 30 | Fuel filter heater relay |
| GLOW PLUG | 80 | Glow plug relay |
| HEATER #1 | 40 | PTC heater relay #1 |
| HEATER #2 | 40 | PTC heater relay #2 |
| HEATER #3 | 40 | PTC heater relay #3 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
