KIA Carens (FJ; 2002 – 2006) – fuse box diagram

KIA Carens (FJ; 2002 – 2006) – fuse box diagram

Year of production: 2002, 2003, 2004, 2005, 2006

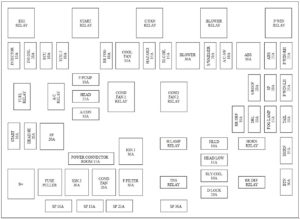

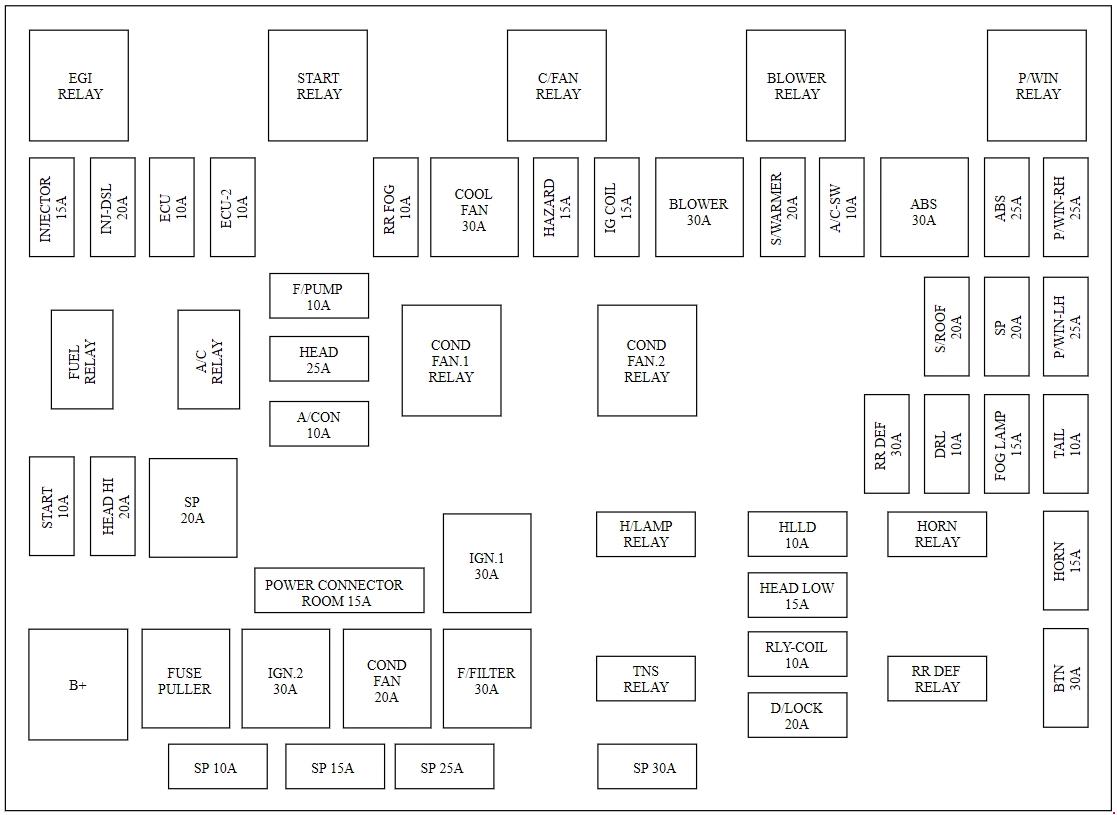

Engine compartment fuse box

KIA Carens FJ - fuse box diagram - engine compartment
KIA Carens FJ – fuse box diagram – engine compartment
Fuse
A
Circuit Protected
COOL FAN 30 Cooling fan relay
BLOWER 30 Blower relay
ABS 30 ABS control module
IGN.1 30 Ignition switch (ACC, IG1)
IGN.2 30 Ignition switch (IG2, START), Start relay
COND FAN 20 Condenser fan relay. 1
F/FILTER 30 Fuel filter relay
INJ 15 Throttle control actuator, Camshaft position sensor, Fuel pump relay, Cooling fan relay, Glow plug relay, Heater relay, Stop lamp switch, A/C relay, Immobilizer control module
INJ-DSL 20 ECM
ECU 10 Lambda sensor
ECU-2 10 ECM
RR FOG 10 Rear fog lamp relay
HAZARD 15 Hazard relay, Door lock/unlock relay
IG COIL 15 Multipurpose check connector, ECM, Mass airflow sensor, AQS & Ambient temp, sensor
S/WARMER 20 Driver/Assister seat warmer relay
A/C SW 10 Electronic chrome mirror, Mode actuator
ABS 25 ABS control module
P/WIN-RH 25 Assister power window switch
P/WIN-LH 25 Power window main switch
S/ROOF 20 Sunroof control module
TAIL 10 DRL control module, Illuminations
FOG LAMP 15 Front fog lamp switch
DRL 10 DRL control module
RR DEF 30 Rear defogger relay, Alternator
F/PUMP 10 Fuel sender & fuel pump motor
HEAD 25 Head lamp relay
A/CON 10 A/C relay
START 10 Start relay
HEAD HI 20 Head lamp, Instrument cluster
HEAD LOW 15 Head lamp, DRL relay
HLLD 10 Head lamp, Rear fog lamp relay
HORN 15 Horn relay
BTN 30 Fuse (Power socket 20A, ECU 10A, Stop lamp 15A, Frt def 15A)
RLY-COIL 10 Cigarette lighter & seat warmer switch, DRL relay, Rain sensor, Blower relay
D/LOCK 20 Door lock/unlock relay, Outside mirror folding module
ROOM 15 Keyless entry receiver, Audio, Instrument cluster, A/C control module, ETACM, Back warning buzzer, Digital clock, Room lamp

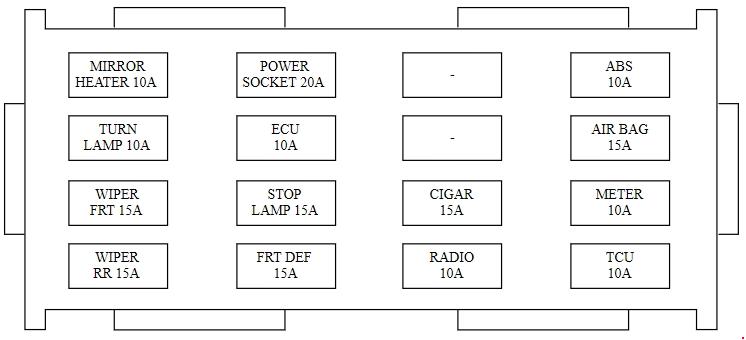

Compartment Fuse Box

KIA Carens FJ - fuse box diagram - compartment fuse box
KIA Carens FJ – fuse box diagram – compartment fuse box
Fuse
A
Circuit Protected
MIRROR HEATER 10 Defogger, Instrument cluster
TURN LAMP 10 Hazard switch
WIPER FRT 15 Front wiper motor, Rain sensor, Multifunction switch
WIPER RR 15 Rear wiper motor, Rear washer & wiper switch
POWER SOCKET 20 ACC socket relay
ECU 10 Data link connector, Multipurpose check connector
STOP LAMP 15 Stop lamp switch
FRT DEF 15 Windshield defogger relay
CIGAR 15 Cigarette lighter & seat warmer switch, Acc socket relay
RADIO 10 ETACM, Digital clock, Audio, Keyless entry receiver, Power outside mirror switch
ABS 10 ABS control module
AIR BAG 15 SRS control module
METER 10 Instrument cluster, Fuel filter warning switch, ETACM, Vehicle speed sensor, Back-up lamp switch
TCU 10 DRL control module

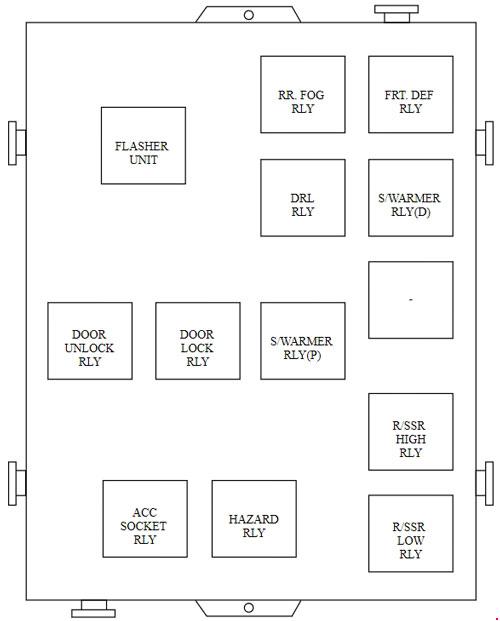

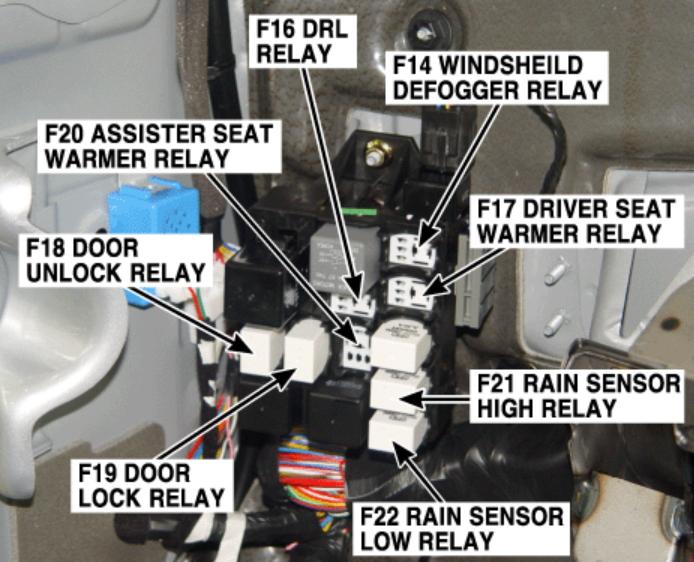

Relay Box

KIA Carens FJ - fuse box diagram - relay box
KIA Carens FJ – fuse box diagram – relay box
KIA Carens FJ - fuse box diagram - relay box
KIA Carens FJ – fuse box diagram – relay box

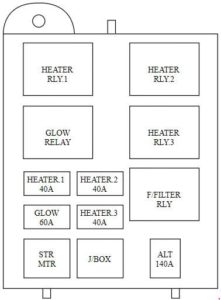

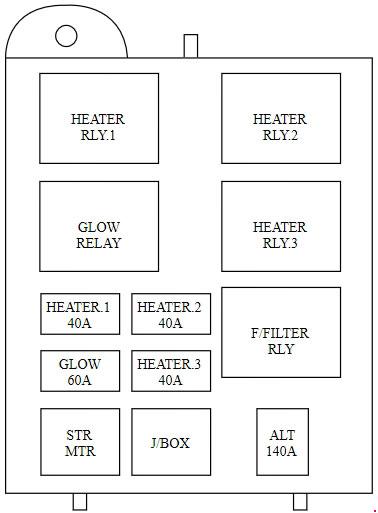

Engine compartment fuse box (Diesel)

KIA Carens FJ - fuse box diagram - engine compartment (diesel)
KIA Carens FJ – fuse box diagram – engine compartment (diesel)
Fuse
A
Circuit Protected
ALT 140 Alternator
GLOW 60 Glow plug relay
HEATER.1 40 Heater relay. 1
HEATER.2 40 Heater relay.2
HEATER.3 40 Heater relay.3

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
