JCB 4CX – fuse box diagram

Year of production:

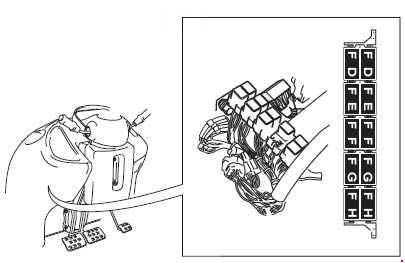

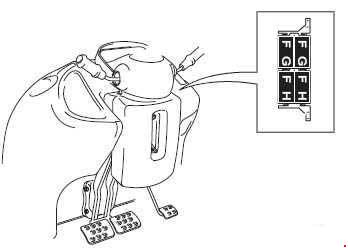

The relays and fuses are located in the side console underneath the cover.

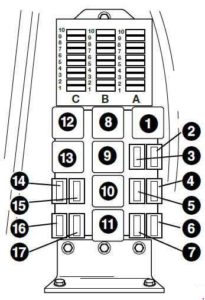

No.	A	Function
Column “A”
1	10	Hydraulic auxiliary
2	5	Fuel pump solenoid (engine stop)
3	7.5	Direction indicators
4	7.5	Steer mode proximity switch
5	10	Gearbox control, Transmission
6	3	Gear select / Forward Reverse (machines from serial No. 933757)
7	5	Brake lights (machines up to serial No. 933756)
7	10	Transmission (machines from serial No. 933757)
8	3	4 wheel drive (automatic brakes) (machines up to serial No. 933756)
8	7.5	Brake lights (machines from serial No. 933757)
9	5	Left hand side lights
10	5	Right hand side lights
Column “B”
1	5	Instruments, Buzzer
2	15	Front horn, Front washer/wiper
3	7.5	Rear horn
4	15	Heated seat, Cigar lighter, Face level fan
5	10	Rear wiper/wash
6	10	Brake switch
7	5	Return to dig enable
8	25	Rear working lights
9	20	Headlights
10	25	Front working lights
Column “C”
1	7.5	Lights
2	15	Hazard light
3	10	Beacon, Interior light
4	5	Radio
5	20	Thermostart
6	30	Heater
7	3	Ignition relay coils
8	15	Main beam
9	3	Fog light
10	15	Dip beam

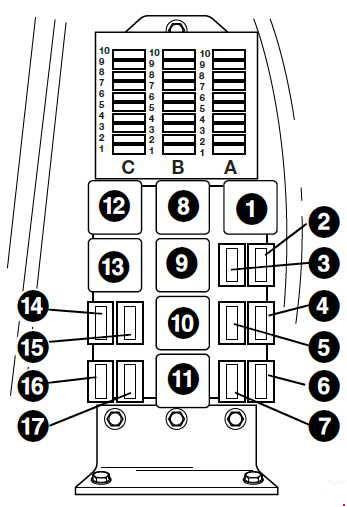

Relays
1	Ignition 1
2	Hammer
3	Auxiliary (jaw bucket)
4	Main lights
5	Engine run
6	Hydraulic speed control (HSC)
7	Buzzer
8	Buzzer
9	Ignition 2
10	Front working lights
11	Rear working lights
12	Direction indicator
13	Neutral start
14	Rear horn
15	Parking brake warning light
16	Air conditioning compressor
17	Parking brake

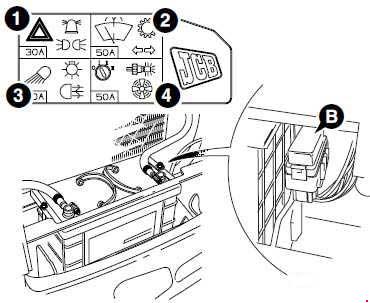

No.	A	Function
1	30	Hazard warning lights, Beacon, Lights
2	50	Wash/Wipe, Transmission, Indicators
3	50	Work lights, Fog Lights, Brake lights
4	50	Ignition, Heater, Thermostart

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
