Jaguar S-Type (1999 – 2008) – fuse box diagram

Jaguar S-Type (1999 – 2008) – fuse box diagram

Year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008

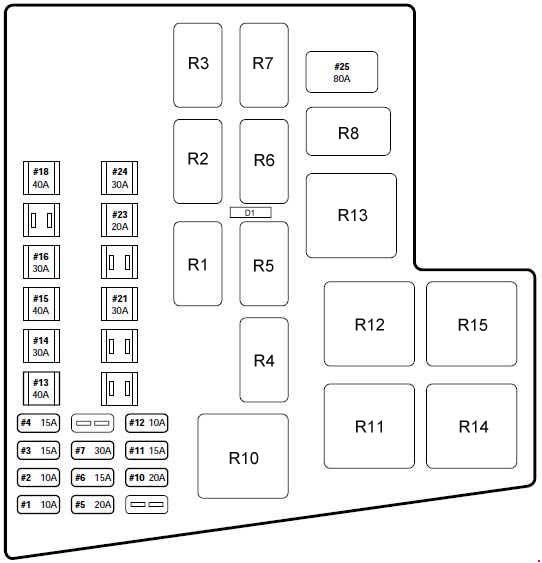

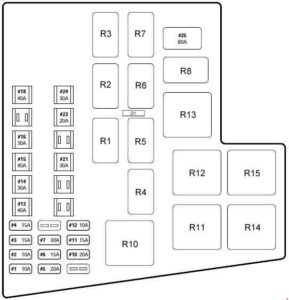

Engine compartment fuse box (1999-2001)

The fuse box is located in the engine compartment on the right-hand side adjacent to the windscreen wash reservoir.

Jaguar S-Type - fuse box diagram - engine compartment
Jaguar S-Type – fuse box diagram – engine compartment
Number Ampere ratting [A] Circuit
1 10 Air conditioning clutch (auxiliary water pump – V8 engine only)
2 10 Windshield washer pump
3 15 Fog lamps, LH/RH
4 15 Horns
5 20 Fuel injection
6 15 Transmission solenoid
7
8
9
10
11 15 Heated oxygen sensors, air conditioning clutch coil relay
12 10 Coil on plugs
13 40 LH heated windshield
14 30 ABS module
15 40 RH heated windshield or Heated wiper park
16 30 Blower motor
17
18 40 Powertrain Control Module (PCM)
19
20
21 30 Starter solenoid
22 30 ABS motor
23 20 Wiper motor
24 30 Headlamp washer pump
25 80 Cooling fan motor
Diode
D1 Powertrain control diode
Relay
R1 Wiper high/low relay
R2 Wiper park relay
R3 Powertrain control relay 2
R4 Throttle control relay
R5 Auxiliary coolant pump relay (v8)
R6 Horn relay
R7 Front fog lamp relay
R8 A/C compressor clutch relay
R10 Blower motor relay
R11 Wiper park heater relay
RH windshield heater relay
R12 LH windshield heater relay
R13 Powerwash relay
R14 Powertrain control relay 1
R15 Starter relay

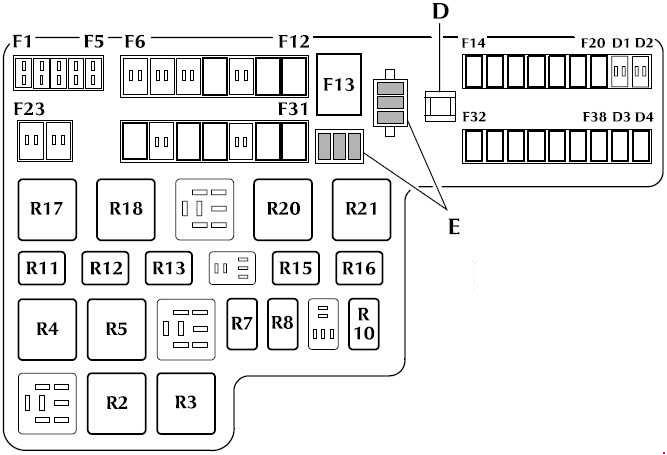

Engine compartment fuse box (2002-2008)

The fuse box is located in the engine compartment on the right-hand side adjacent to the windscreen wash reservoir.
D – Fuse removal tool

E – Spare fuses

Jaguar S-Type - fuse box diagram - engine compartment
Jaguar S-Type – fuse box diagram – engine compartment
Number Ampere ratting [A] Circuit
F1 5 2006-2008: ABS B+
F2 5 2004-2008: Engine Management System (EMS) (2006-2008), Engine Control Module (battery supply) (Diesel only), Vacuum solenoid (2006-2008)
F3 20 2004-2008: Auxiliary fuel fired heater (Diesel only)
F4 20 2006-2008: ABS valves, vbatt
F5
F6
F7
F8
F9 50 2002-2003: Engine management system power supply
2004-2005: Petrol – Heated oxygen sensors, throttle, ignition, engine management system relays. Diesel – Engine management system relay (2004)
2006-2008: Heated Exhaust Gas Oxygen sensors, ignition EMS relays. Diesel/petrol – EMS relays, Supercharger water pump relay.
F10
F11 30 Headlamp powerwash
F12 20 Wipers
F13 80 Cooling fan
F14 15 Right-hand dipped beam high intensity discharge (HID) lamp
F15 15 Front fog lamps
F16 15 Horns
F17 15 Fuel injectors
F18 20 2002-2005: Throttle motor
10 2006-2008: Engine management ignition supply
F19 10 2002-2003: Ignition coil on plugs supply
2004-2005: Petrol – Ignition coil on plugs supply, capacitor, HEGO Relay coil. Diesel – pressure control valve, volume control valve (2004)
2006-2008: Diesel – Pressure control valve, volume control valve
15 2006-2008: Petrol – Ignition coil on plugs supply
F20 30 2002-2005: Petrol – Right-hand oxygen sensor heaters
2004, 2006-2008: Diesel – Engine management system engine control unit
20 2006-2008: Petrol – Right-hand Oxygen Sensor Heaters
F21* 5 *(D1) 2004-2008: Rain sense module
F22* *(D2) Not used
F23
F24
F25 40 Right-hand windscreen heater (if fitted) or wiper park heater
F26
F27 30 Starter motor solenoid
F28 30 ABS pump motor
F29
F30 40 Left-hand windscreen heater (if fitted)
F31 30 2002-2005: ABS module (ABS valves)
50 2006-2008: SAI relay
F32 10 Air compressor clutch, auxiliary coolant pump
F33 15 Engine control module and transmission control module battery supply, Diesel – EMS (2006-2008)
F34 15 Left-hand dipped beam high intensity discharge (HID) lamp
F35 30 2002-2005: Left-hand oxygen sensor heaters
20 2006-2008: Left-hand oxygen sensor heaters
F36 15 Intercooler pump (supercharged model)
F37 15 Air flow meter, purge valve, canister close valve, inlet manifold tuning valves (V6 only), EGR valve (V8 only), air filter solenoid (V8 S/C only), MAF sensors (2004-2008), VGT (2004-2008), Port deactivation valve (Diesel only) (2004, 2006-2008)
F38 10 Engine control module ignition supply (Petrol only), cooling fan module, air conditioner clutch relay, glow plug module (Diesel only) (2004, 2006-2008)
Diode
D1
D2
D3 Ignition relay
D4 2002-2005: Engine management control relay
Relay (2002-2003)
R1
R2 40 Heated oxygen sensors
R3 40 Ignition
R4 40 Throttle
R5 40 Engine management system
R6
R7 20 Auxiliary coolant pump
R8 20 Air compressor clutch
R9
R10 20 HID lamp – left-hand side
R11 20 Front fog lamps
R12 20 Horn
R13 20 HID lamp – right-hand side
R14
R15 20 Wiper speed high/low
R16 20 Wiper run/park
R17 40 Left-hand windscreen heater
R18 40 Headlamp washer pump
R19
R20 40 Starter motor solenoid
R21 40 Right-hand windscreen heater (if fitted) or wiper park heater

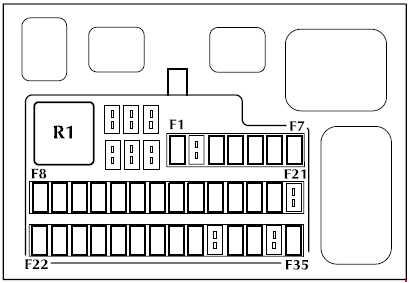

Passenger compartment fuse box

The passenger compartment fuse box is located on the right-hand side trim panel in the footwell.

Jaguar S-Type - fuse box diagram - passenger compartment
Jaguar S-Type – fuse box diagram – passenger compartment
Numer Amprere ratting [A] Function
F1 5 1999-2001: Starter relay coil via Park/Neutral switch
2002-2008: Engine control module/crankshaft sensor
F2 5 1999-2001: Radio
F3 5 ABS/Dynamic stability control module, ACC module (2002-2008)
F4 5 Inertia switch (fuel pump relay, ignition control relay, rear electronics module), instrument cluster, brake pedal cruise de-activation switch (2002-2003), bottom of clutch switch (2003), engine management system (2006-2008), cruise control cancel (2006-2008)
Powertrain Control Module (PCM) relay coil (1999-2001), transit relay (1999-2001)
F5 10 2002-2008: Restraint control module, airbag occupant sensor, passenger airbag de-activation lamp
5 1999-2001: Autolamp sensor, traction control switch, overdrive cancel switch, heated seat modules, brake shift interlock
F6 10 OBDII connector
F7 5 1999-2001: Driver’s Door Module (DDM), Driver’s Seat Module (DSM), Powertrain Control Module (PCM), Passive Anti-Theft System (PATS) LED, security horn, power mirror
2002-2008: Driver’s door module, seat logic (2002-2003), battery backed sounder, road pricing (Singapore), security LED
F8 5 Front right turn indicator, sidemarker, park, repeater lamps
F9 10 Right-hand dipped beam, left-hand HID relay coil
F10 5 Front left turn indicator, sidemarker, park, repeater lamps
F11 10 Left-hand main beam
F12 15 2002-2008: Screenwash pump
10 1999-2001: Headlamp levelling
F13 5 Instrument cluster
F14 10 1999-2001: Restraints Control Module (Airbag), Dual Automatic Temperature Control Module
2002-2008: Climate control system, two stage adaptive damping control module
F15 5 1999-2001: Adaptive damping module (CATS)
2002-2008: Ignition switch feed (RUN) to alternator, T-gate, transmission control module
F16 10 2002-2008: Passenger/driver heated seat modules, electrochromic mirror, rain sense module, headlamp levelling, ACC chime module (2002-2003), tyre pressure module (2004-2007)
5 1999-2001: Heated seat switch module, electrochromic mirror, rain sensor
F17 5 1999-2001: Restraints Control Module (Airbag), alternator warning lamp
2002-2008: Instrument cluster (airbag warning light, alternator warning light, seatbelt chime)
F18 20 1999-2001: Radio, cellular phone, navigation
2002-2008: Radio head unit, touchscreen/display unit
F19 15 Steering column tilt and reach motors
F20 10 1999-2001: Generic Electronic Module (GEM), air conditioning, instrument cluster, rear electronic control module
2002-2008: Logic supply to instrument cluster, climate control system, front electronic module, rear electronic module, electric parkbrake (2004-2008)
F21 10 1999-2001: Power folding mirror, sunblind
F22 10 Driver’s door module battery supply (driver’s door mirror, locks)
F23 10 Right-hand main beam
F24 5 Passive anti-theft system
F25 10 Left-hand dipped beam, right-hand HID relay coil
F26 10 2002-2008: Electric parkbrake switch illumination, AM/FM antenna amplifier, sunblind motor, accessory socket relay (cigar lighter and power point relay)
F27 10 1999-2001: Navigation display, radio, phone, navigation module, traffic master
2002-2008: Radio head unit, touchscreen/display unit, navigation module, voice control, VICS (Japan), centre console switchpack, phone transceiver (2004-2008)
F28 5 1999-2001: Security horn
F29 5 1999-2001: Voice control, reverse park aid, trailer tow ignition sense, Vehicle Emergency Messaging System (VEMS), Generic Electronic Module (GEM)
2002-2008: Voice control, reversing aid module, telephone transceiver, front electronic module
F30 10 2002-2008: Front electronic module power
5 1999-2001: Generic Electronic Module (GEM), passenger power mirror
F31
F32 20 Accessory relay (cigar lighter, power point)
F33 10 1999-2001: Generic Electronic Module (GEM)
2002-2008: Front electronic module (instrument dimming, fuel/luggage compartment switchpack
F34
F35 5 1999-2001: Stop lamp switch
2002-2008: Brake on/off switch, cruise control cancel switch (2002-2003), bottom of clutch switch (2002, 2004-2008)
Relay
R1 40 Accessory (cigar lighter, power point)

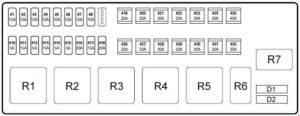

Luggage compartment fuse box (1999-2001)

A fuse box is located in the luggage compartment, situated forward of the battery.

Jaguar S-Type - fuse box diagram - luggage compartment
Jaguar S-Type – fuse box diagram – luggage compartment
Numer Amprere ratting [A] Function
1 15 Luggage compartment lid release
2 10 Right rear – reverse lamp, direction indicator, side markers, fog lamps, licence plate
3 10 Left stop lamp, tail lamp, trailer tow relay
4 10 Fuel flap release, trunk lamp
5 10 Courtesy and map lamps
6 10 Left rear – reverse lamp, direction indicator, side markers, fog lamps
7 10 Right stop lamp, tail lamp
8 10 High mounted stop light
9 5 Heated mirror
10 5 Traffic master
11 15 Seat heaters
12 5 Transit relay
13 15 Adaptive damping module
14 5 Cellular phone, CD changer, Vehicle Emergency Messaging System (VEMS)
15 5 Alternator Sensor
16 20 Sunroof
17 15 Fuel pump
18 20 Subwoofer amplifier
19 20 Rear Electronic Module (REM) – left rear window
20 30 Driver’s door module (DDM) – driver’s window
21 30 Driver’s lumbar
22 30 Ignition
23 30 Switched system power 4
24 30 Switched system power 3
25 40 Primary Junction Box (PJB)
26 20 Generic Electronic Module (GEM) – passenger window
27 30 Switched system power 1
28 30 Passenger’s lumbar
29 30 Rear screen defrost
30 20 Rear Electronic Module (REM) – right rear window
31 20 Ignition
32 30 Switched system power 2
Diode
D1
D2 Fuel pump diode
Relay
R1 Switched system power relay 1
R2 Switched system power relay 2
R3 Heated backlight relay
R4 Switched system power relay 3
R5 Switched system power relay 4
R6 Gearshift interlock relay
R7 Fuel pump relay

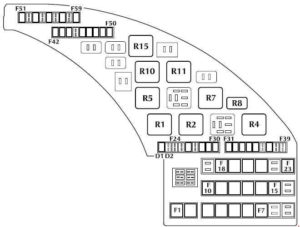

Luggage compartment fuse box (2002-2008)

A fuse box is located in the luggage compartment, situated forward of the battery.

Jaguar S-Type - fuse box diagram - luggage compartment
Jaguar S-Type – fuse box diagram – luggage compartment
Numer Amprere ratting [A] Function
F1 40 2002-2003: Battery supply to OBDII connector
2004-2008: Passenger compartment fusebox – battery supply
F2 20 2002-2003: Accessory socket
30 2004-2008: Cigar lighter and power point relay
F3 20 Ignition switch
F4 20 Left-hand rear window raise/lower
F5 20 Driver’s window raise/lower
F6 20 Front passenger’s window raise/lower
F7 20 Right-hand rear window raise/lower
F8
F9
F10 30 Fan motor
F11 30 Passenger seat
F12 30 Switch system power 1 relay
F13 30 Switch system power 2 relay
F14 30 Switch system power 3 relay
F15 30 Driver’s seat
F16
F17
F18 30 Driver’s seat
F19 30 Passenger’s seat
F20 30 Switch system power 4 relay
F21 30 Heated rear window, heated mirrors (2002-2003; 2006- 2008)
F22
F23 30 Fuel pumps
F24 5 2004-2008: Tyre pressure module
F25 5 2004-2008: CD player
F26 15 Adaptive damping
F27
F28 30 Remote audio power amplifier
F29 10 Telephone, CD autochanger (2002-2003), Navigation, Voice (2002-2003), VICS (Japan only)
F30 5 Alternator sense (V8 S/C only and diesel)
F31 20 Sunroof control module
F32 10 Driver’s seat
F33 5 Transit relay
F34 15 2002-2003: Left/right-hand heater seat module
20 2004-2008: Left/right-hand heater seat module
F35 30 Electric parkbrake
F36
F37 10 Passenger seat
F38
F39
F40
F41
F42 5 2002-2003: Driver/passenger heated door mirrors
10 2004-2008: Driver/passenger heated door mirrors
F43
F44 10 Left-hand rear reverse lamp, rear fog lamp (2002), direction indicator, side marker, trailer tow relay and module
F45
F46 10 Luggage compartment lid and interior lamps, fuel filler flap solenoid
F47 15 Rear electronic module, , fuel pump driver (Petrol only), fuel pump lift (Diesel only)
F48 10 Right-hand rear reverse lamp, fog lamp (2002), direction indicator, side marker, number plate
F49 15 Secondary fuel pump module (S/C only)
F50 5 Transit relay
F51 5 ACC
F52 5 Electric parkbrake
F53 10 Right-hand rear stop and tail lamps, high mounted stop lamp, fog lamps (2003-2008)
F54
F55 10 Door lamps, roof courtesy lamps, map lamp, visor lamp, puddle lamp, glovebox lamp, garage door opener
F56 15 2004-2008: Cigar lighter
F57 10 Left-hand rear stop and tail lamps, fog lamps (2003 -2008)
F58 20 2004-2008: Power point
F59 15 Rear electronic module, rear and passenger door locks, boot solenoid, steering column (2002-2003)
Diode
D1 Fuel pump relay
D2
Relay (2002-2003)
R1 40 Heated rear window
R2 40 Switch system power relay 1
R3
R4 40 Switch system power relay 3
R5 40 Switch system power relay 4
R6
R7 70 Fan motor
R8 20 Fuel release
R9
R10 40 Accessory
R11 40 Switch system power relay 2
R12
R13
R14
R15 40 Fuel pump

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
