Iveco Daily Euro 4 (2006 – 2009) – fuse box diagram

Iveco Daily Euro 4 (2006 – 2009) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009

Instrument panel interconnection central units (CPL)

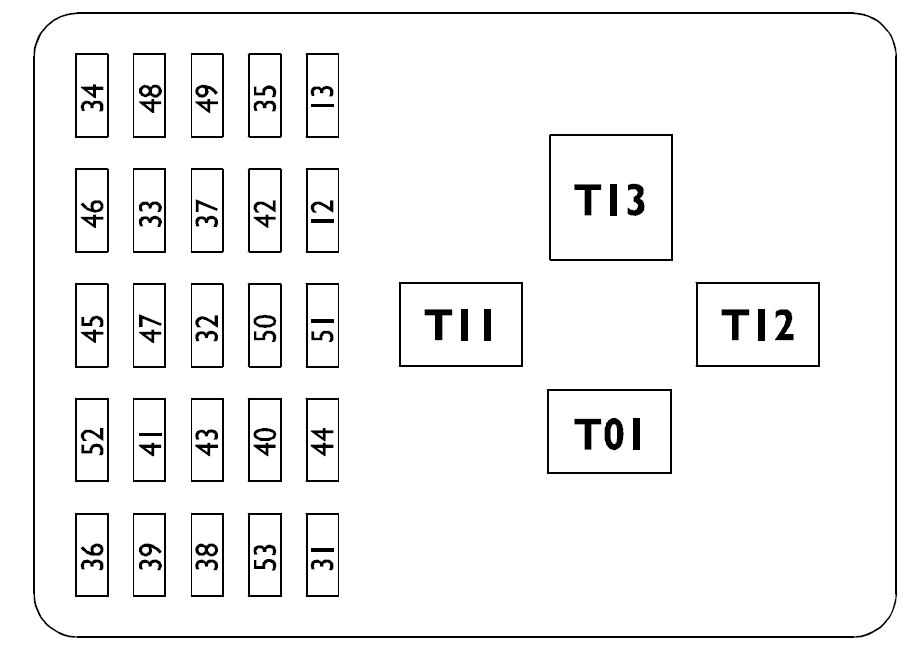

Iveco Daily - fuse box - instrument panel
Iveco Daily – fuse box – instrument panel
Ref. Function Sect.
1 Positive from ”CBA” (fuse 70A) – connector B/A 10
2 Positive from ”CBA” (fuse 70A) – connector B/B 10
3 Positive from ”CBA” – OPT connector D 10



Fuse Function Ampere rating [A]
12 Right hand dipped headlight 7,5
13 Left hand dipped headlight – headlamp attitude rectifier 7,5
31 Relay T08-T17 in CVM and BC 3
32 Rotating-translating door 15
33 Air heater / Cigarette lighter 15
34 Socket 20
35 ABS8 or ESP8. Telma 10
36 Central locking 20
37 Switches for stop lights and various loads under 15 5
38 BC / Roof lamps internal relays power supply 10
39 Car radio – chrono-tachograph 15
40 Rh heated rear window 10
41 Lh heated rear window 10
42 Reverse lights switch 5
43 Windscreen wiper 20
44 AVAILABLE
45 AVAILABLE
46 AVAILABLE
47 Driver window winder 25
48 Passenger window winder 25
49 ECU for climate control system, car radio, heated seats 15
50 Airbag 5
51 Chrono-tachograph 5
52 AVAILABLE
53 Instrument cluster, rear fog lights 7,5

Relay Function Ampere rating [A]
T-01 Right and left hand dipped headlights 20
T-11 Heated rear window 20
T-12 Cigarette lighter / socket / heater or climate control system 20
T-13 Power release from key 50



Engine opening unit (CVM)

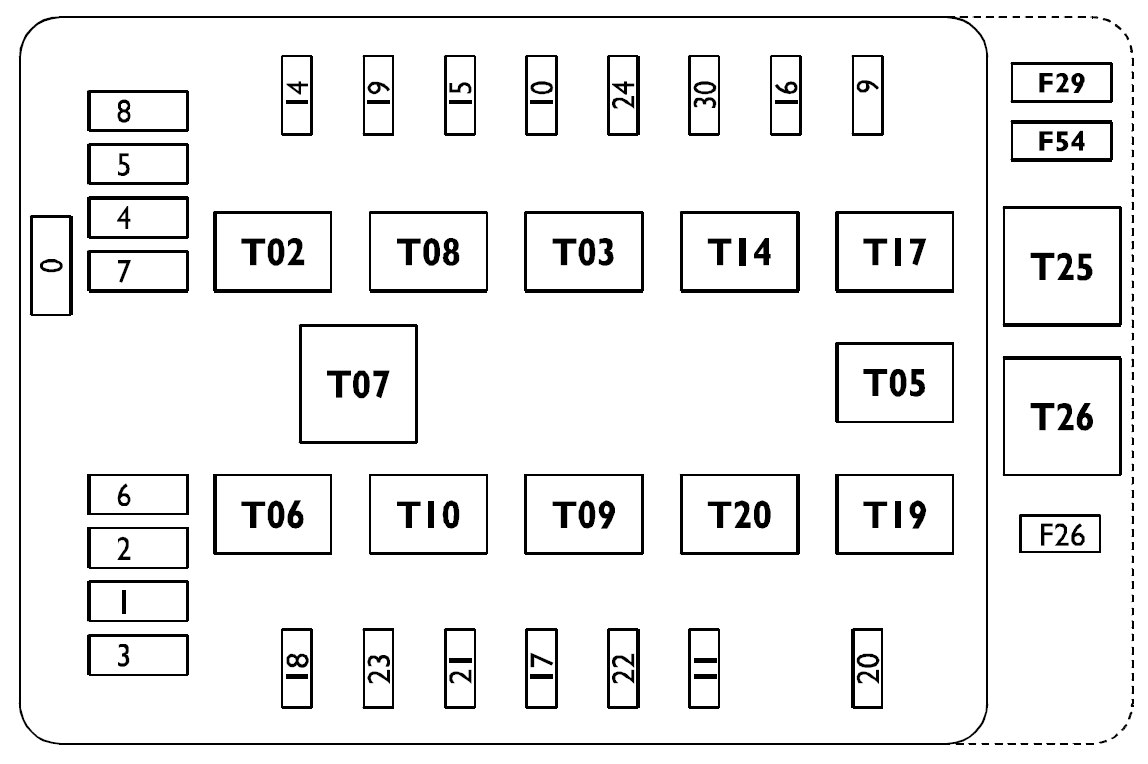

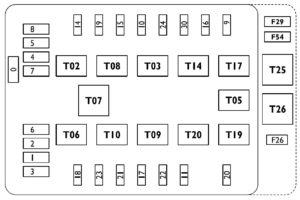

Iveco Daily - fuse box - engine compartment
Iveco Daily – fuse box – engine compartment
Fuse Function Ampere rating [A]
0 Ignition glow plugs 60
1 ABS8 or ESP8 40
2 ABS8 or ESP8 30
3 ECU ESV1 (automatic gearbox) 30
4 ECU ESV1 (automatic gearbox) 30
5 Start-up switch 30
6 Heated mirrors and windscreen 20
7 Side marker lamps 20
8 Heater or climate control system fans 30
9 Windscreen washer 20
10 Horn 7,5
11 EDC16 (secondary loads) 10
14 Right hand full beam headlight 7,5
15 Left hand full beam headlight 7,5
16 EDC16, T02, T14, Additional heater 5
17 EDC16 (primary loads) 15
18 ECU ESV1 (automatic gearbox) 10
19 Baruffaldi 5
20 Fuel filter heater 25
21 Fuel pump 15
22 EDC16 (primary loads) 25
23 Additional heater 10
24 ECU ESV1 (automatic gearbox), PTO 15
30 Left and right hand front fog lights 15
IN CONTAINER, OUT OF CENTRAL UNIT
26 Trailer socket 10
29 Air spring suspensions 40
54 Air spring suspensions 40

Relay Function Ampere rating [A]
T02 Right and left hand full beam headlights 20
T03 Horn 20
T05 Baruffaldi power supply 20
T06 Heater / mirrors / windscreen 20
T07 Side marker lamps 20
T08 Heater or climate control system fans 20
T09 EDC16 (main relay) 20
T10 Fuel pump 20
T14 Left and right hand front fog lights 20
T17 Windscreen washer 20
T19 Fuel filter heater 20
T20 Diagnosis MODUS 20
IN CONTAINER, OUT OF CENTRAL UNIT
T25 Windscreen wiper on/off 10
20
T26 Windscreen wiper 1st / 2nd speed 10
20

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
