Isuzu VehiCROSS (1999 – 2001) – fuse box diagram

16 July 2019 admin Isuzu, VehiCROSS 0

Isuzu VehiCROSS (1999 – 2001) – fuse box diagram

Year of production: 1999, 2000, 2001

Engine compartment

Fuses

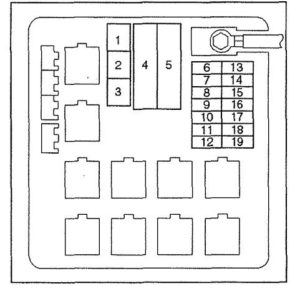

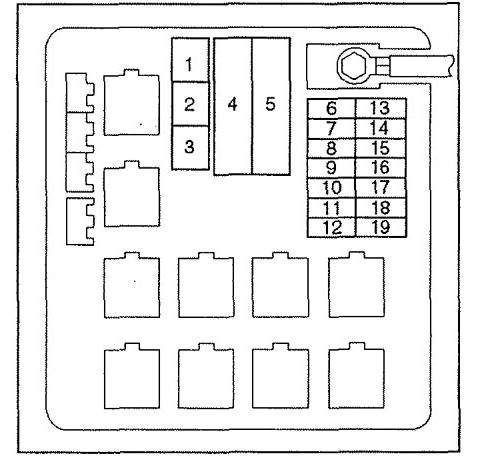

Isuzu VehiCROSS - fuse box diagram - fuse
Isuzu VehiCROSS – fuse box diagram – fuse
No A Description
1 40 ABS
2 40 PCM
3 30 Condenser Fan
4 100 Main
5 60 Key SW
6 EB-1
7 EB-2
8 EB-3
9 EB-4
10 EB-5
11 EB-6
12 EB-7
13 EB-8
14 EB-9
15 EB-10
16 EB-11
17 EB-12
18 EB-13
19 EB-14

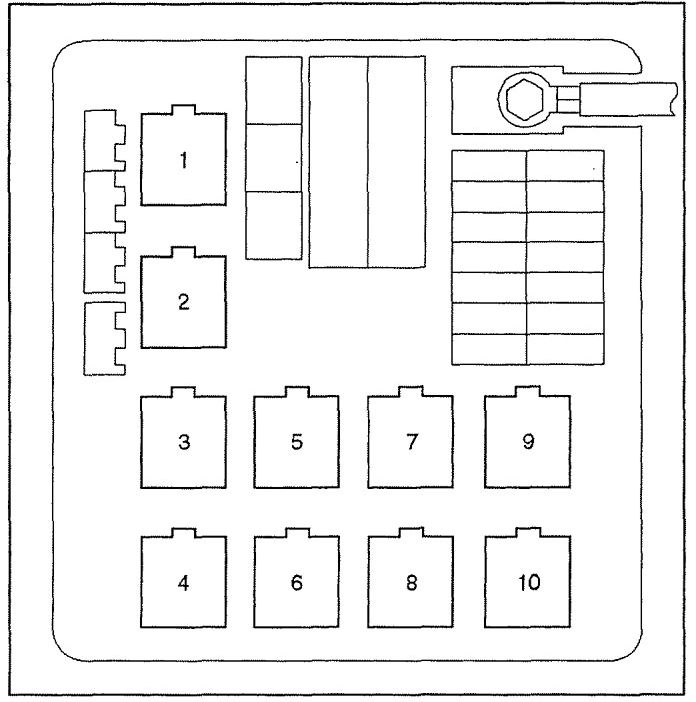

Isuzu vehiCROSS - fuse box diagram - relay
Isuzu vehiCROSS – fuse box diagram – relay
No Relay
1 Headlight relay
2 —
3 Fuel Pump Relay
4 Horn Relay
5 Thermo Relay
6 Heater Relay
7 Starter Relay
8 Starter Cut Relay
9 PCM Main Relay
10 A/C Compressor Relay

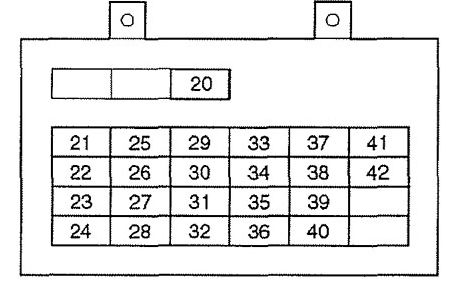

Fuse & Relay Box, I/P

Isuzu VehiCROSS – fuse box diagram – I/P
Isuzu VehiCROSS – fuse box diagram – I/P
No Description
21 CB-1
22 CB-2
23 CB-3
24 CB-4
25 CB-5
26 CB-6
27 CB-7
28 CB-8
29 CB-9
30 CB-10
31 CB-11
32 CB-12
33 CB-13
34 CB-14
35 CB-15
36 CB-16
37 CB-17
38 CB-18
39 CB-19
40 CB-20
41 CB-21
42 CB-22

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
