Isuzu Trooper (2000 – 2001) – fuse box diagram
Year of production: 2000, 2001

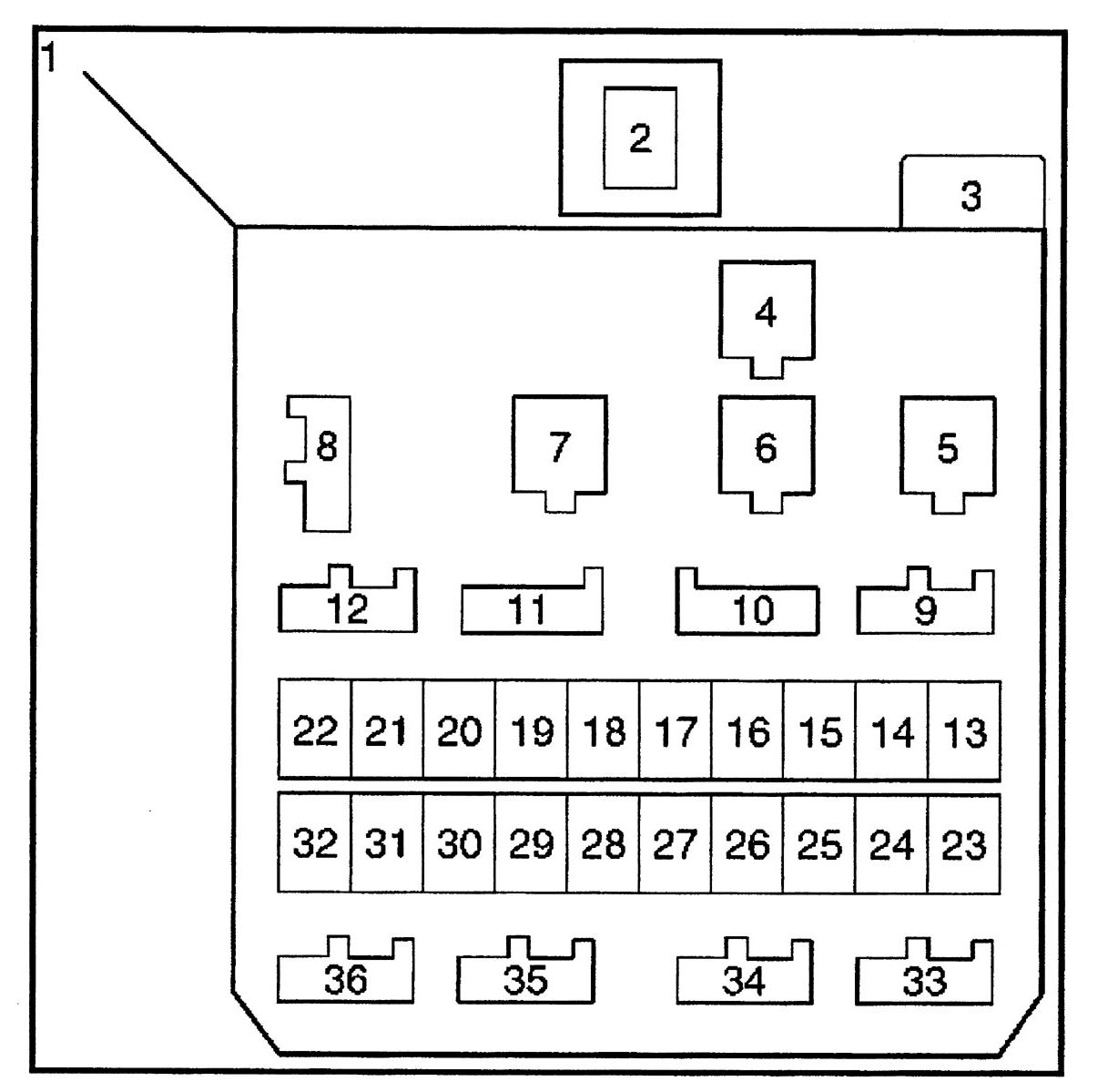

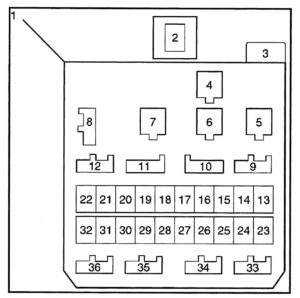

Dash fuse box
| Number | A | Function |
| 1 | Fuse Box | |
| 2 | 10 | Fuse C-21 |
| 3 | Flasher Unit | |
| 4 | H-49 | |
| 5 | Relay Defogger Relay | |
| 6 | Power Window Relay | |
| 7 | Heater & AJC Relay | |
| 8 | Diode (Not Used) | |
| 9 | Diode (Not Used) | |
| 10 | Circuit Breaker C/B -2 | |
| 11 | Circuit Breaker C/B-1 (Not Used) | |
| 12 | Diode (Not Used) | |
| 13 | 10 | Fuse C-1 |
| 14 | 15 | Fuse C-2 |
| 15 | 15 | Fuse C-3 |
| 16 | 15 | Fuse C-4 |
| 17 | 15 | Fuse C-5 |
| 18 | 10 | Fuse C-6 |
| 19 | — | Fuse C-7 (Not Used) |
| 20 | 15 | Fuse C-8 |
| 21 | 15 | Fuse C-9 |
| 22 | 10 | Fuse C-10 |
| 23 | 10 | Fuse C-11 |
| 24 | 20 | Fuse C-12 |
| 25 | 10 | Fuse C-13 |
| 26 | 15 | Fuse C-14 |
| 27 | 20 | Fuse C-15 |
| 28 | 10 | Fuse C-16 |
| 29 | 25 | Fuse C-17 |
| 30 | 20 | Fuse C-18 |
| 31 | 25 | Fuse C-19 |
| 32 | 10 | Fuse C-20 |
| 33 | — | Diode (Not Used) |
| 34 | — | Diode (Not Used) |
| 35 | — | Diode (Not Used) |

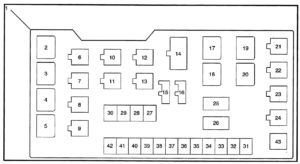

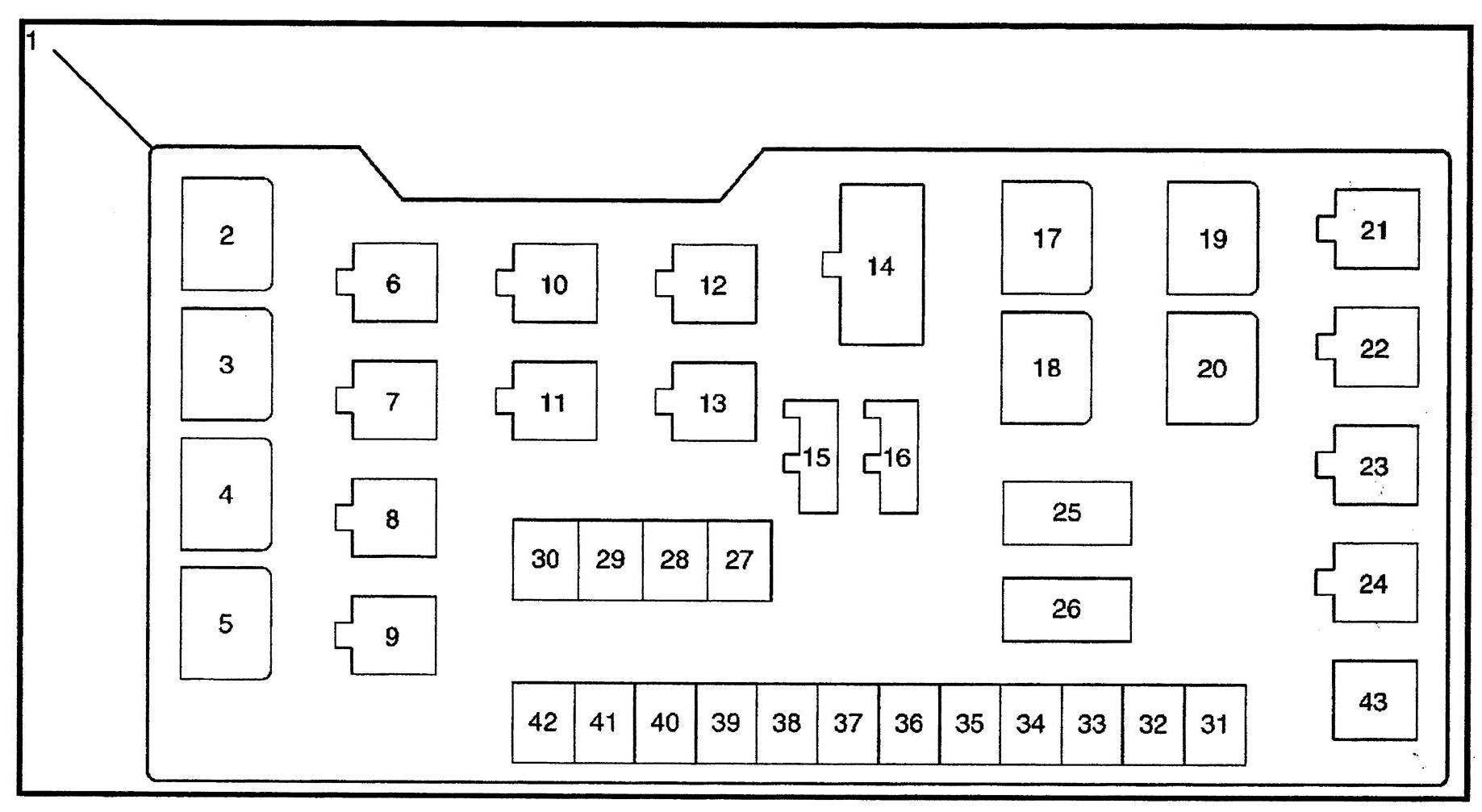

Engine compartment
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
