Isuzu Stylus (1991 – 1993) – fuse box diagram
Year of production: 1991, 1992, 1993

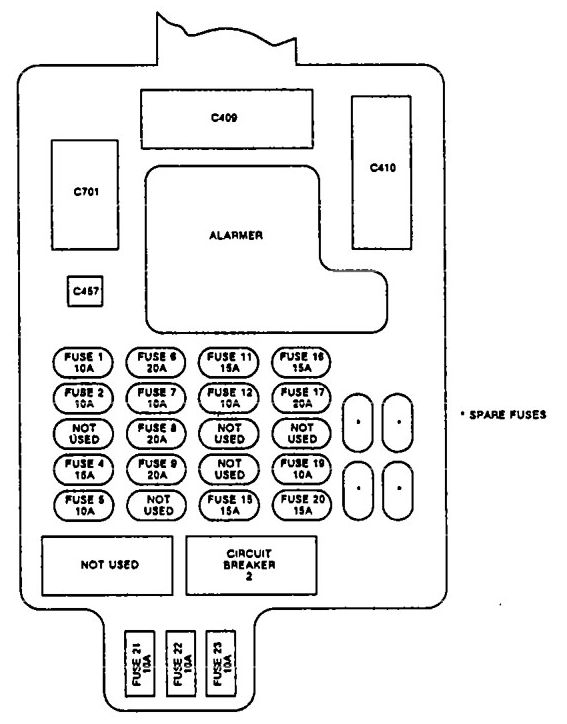

Passenger compartment
| Number | A | Circuit Protected |
| 1 | 10 | Sound system. clock, power mirror |
| 2 | 10 | Rear defogger, power windows, power sunroof, upshift indicator lights |
| 3 | — | — |
| 4 | 15 | Fog lights |
| 5 | 10 | Sound system, dome, spot, courtesy and trunk lights, clock, seat belt, lights-on and key-in ignition warning system |
| 6 | 20 | Cigarette lighter |
| 7 | 10 | Gauges, indicators, seat belt, light-on and key-in ignition warning system |
| 8 | 20 | Windshield wiper/washer |
| 9 | 20 | Automatic door lock |
| 10 | — | — |
| 11 | 15 | Shift lnterlock system. charging system, electronic engine control, starting system |
| 12 | 10 | Turn/hazard lights, back up lights |
| 13 | — | — |
| 14 | — | — |
| 15 | 15 | Exterior lights |
| 16 | 15 | Ignition system |
| 17 | 20 | Rear defogger |
| 18 | — | — |
| 19 | 10 | Brake lights, cruise control, shift interlock system |
| 20 | 15 | Horns, exterior lights |
| 21 | 10 | Starting system, supplemental inflatable restrain (SIR) |
| 22 | 10 | Supplemental inflatable restraint (SIR) |
| 23 | 10 | Supplemental inflatable restraint (SIR) |
| CIRCUIT BREAKER 2 | 30 | Power windows, power sunroof |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
