Isuzu Oasis (1998 - 1999) - fuse box diagram

Isuzu Oasis (1998 – 1999) – fuse box diagram

Year of production: 1998, 1999

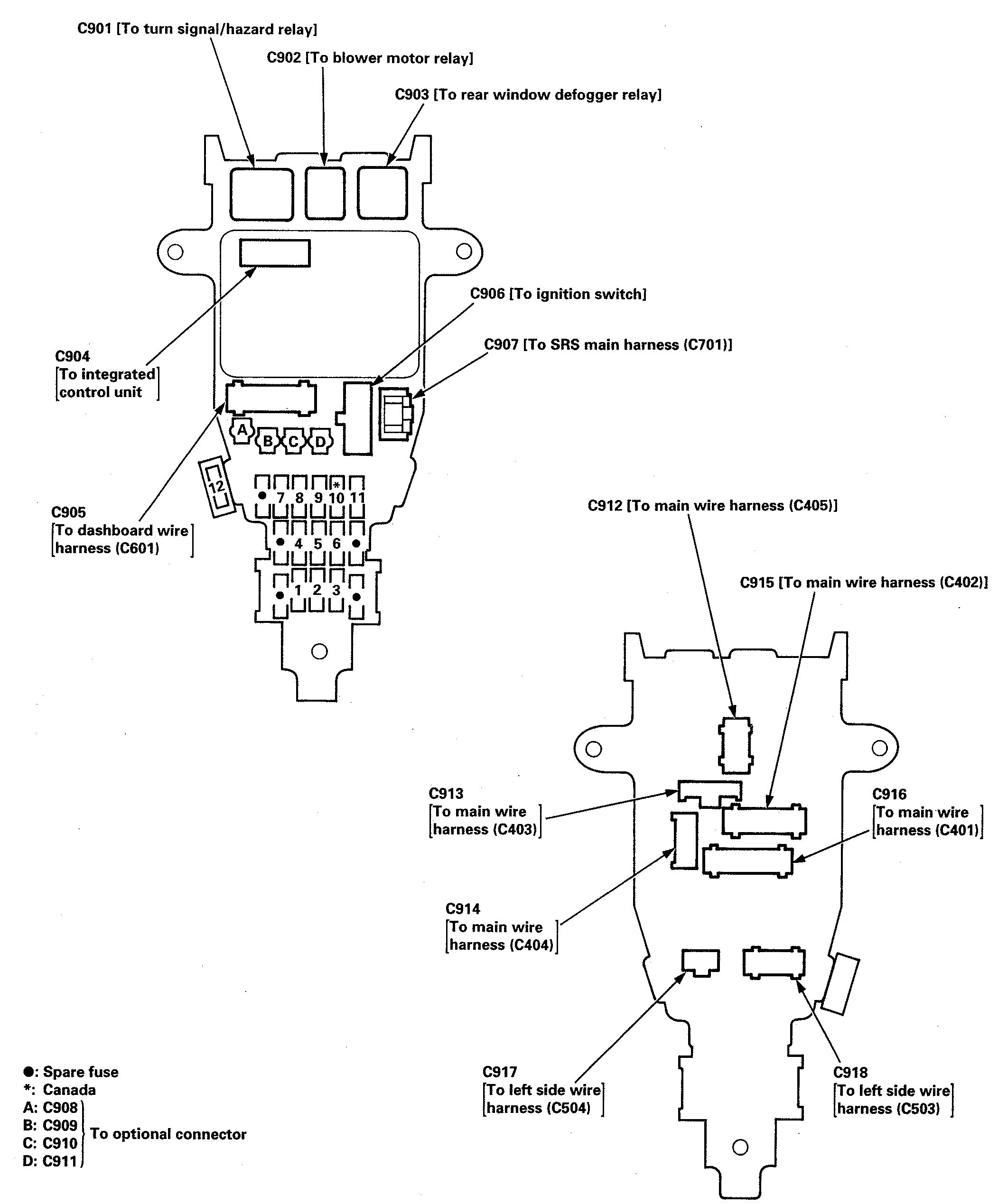

Fuse	A	Wire Color	Component or Circit Protected
1	10	YEL	Gauge assembly, turn signal/hazard relay, clock, NT reverse relay, shift lock solenoid
1	10	Fuse/relay box socket	Integrated control unit
2	15	RED/WHT	PGM-FI main relay
2	15	GRN (or RED)	SRS unit (VA)
3	10	GRN (or PNK)	SRS unit (VB)
4	15	BLK/YEL	Alternator, ELD unit, cruise control system, PCM
5	15	BLK/YEL	Distributor
6	10	GRN/BLK	Windshield wiper/washer motors, windshield wiper motor relay, intermittent wiper relay, windshield wiper high/low relays
6	10	Fuse/relay box socket	Integrated control unit
7	7,5	YEL/RED	Power mirror actuator, ABS control unit
7	7,5	Fuse/relay box socket	Optional connector (C909)
8	7,5	BLK/YEL	Heater control panel, recirculation control motor, mode control motor, A/C compressor clutch relay, A/C thermostat, rear A/C unit switch, rear A/C unit blower motor
9	7,5	BLU/RED	PGM-FI main relay, PCM
10	7,5	VEL/RED	Daytime running lights control unit (Canada) .
11	7,5	VEL/RED	Cigarette lighter relay
11	7,5	Fuse/relay box socket	Optional connector (C908)
12*	10	YEL/GRN	Sunroof relays (USA), rear window wiper/washer motors, power window relay

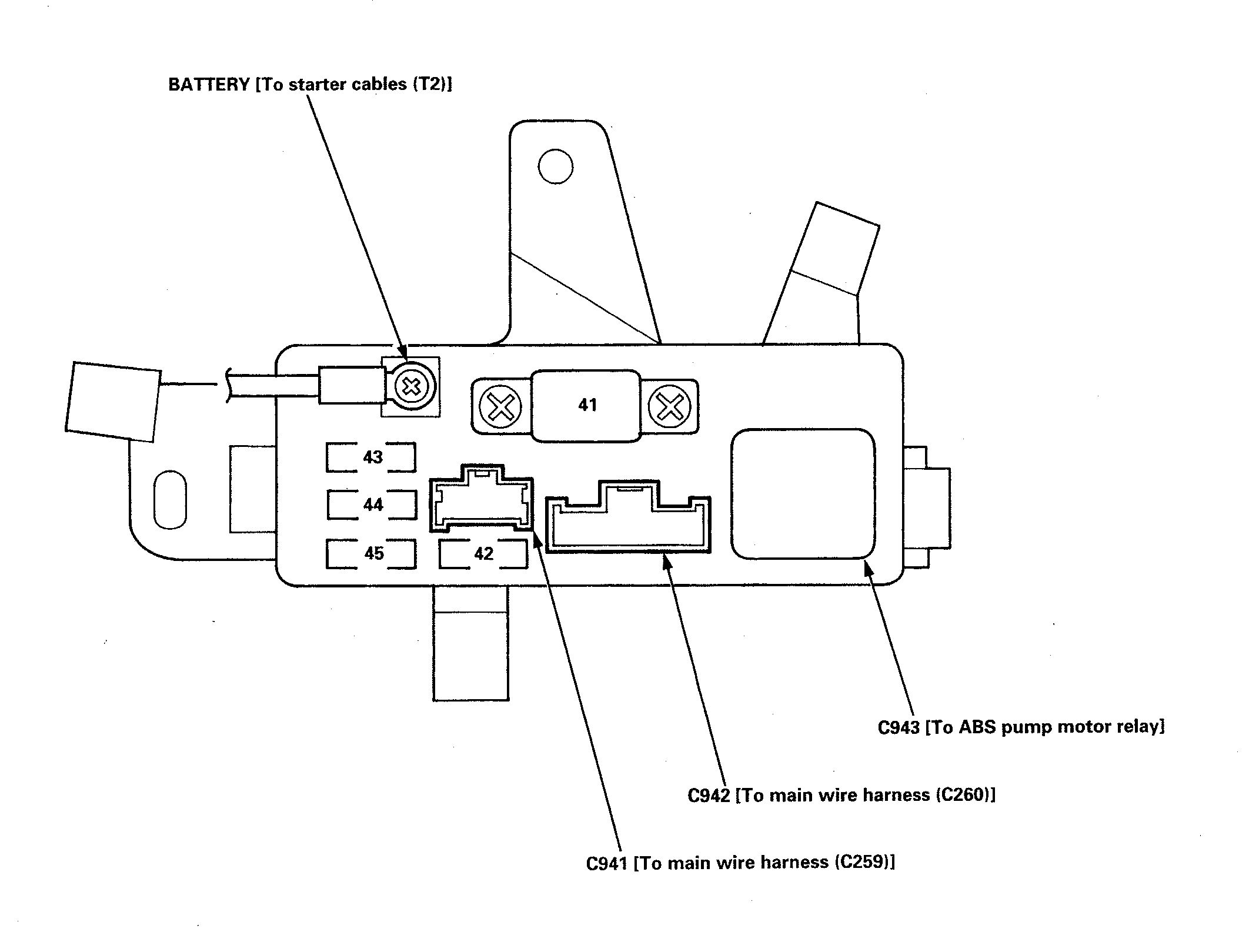

*:AUXILIARY FUSE HOLDER

Fuse	A	Wire Color	Component or Circit Protected
41	30	—	ABS pump motor
42	7,5	GRN	ABS control unit
43	20	WHT/GRN	ABS pump motor relay, ABS modulator unit
44	—	—	—
45	—	—	—

Fuse	A	Wire Color	Component or Circit Protected
15	100	—	Battery, power distribution
16	50	WHT	Ignition switch (BAT)
17	40	WHT	Blower motor
18	40	WHT/BLU	Windshield wiper motor
19	15	RED/YEL	Left headlight, high beam indicator light
20	15	RED/GRN	Right headlight
21	20	BLU/BLK	Radiator-fan motor
22	30	WHT/GRN	Rear window defogger
23	—	—	—
24	20	WHT/YEL	Right rear power window motor
25	20	WHT/BLK	Left rear power window motor
26	20	BLU/BLK	Front passenger’s power window motor
27	10	RED/BLU	Daytime running lights control unit (Canada)
28	20	GRN/WHT	Driver’s power window motor, power window control unit
29	30	GRN	Sunroof motor (USA)
30	15	WHT/YEL	Horns, key interlock solenoid, brake lights
31	20	WHT/RED	Driver’s power seat up-down motor (USA)
32	15	RED/GRN	Dash lights, parking lights, taillights, license plate lights
33	15	WHT/GRN	PGM-FI main relay
34	20	WHT	A/C compressor clutch, condenser fan, radiator fan control module
35	10	WHT/GRN	Turn signal/hazard relay
36	15	RED/WHT	Cigarette lighter, data link connector
37	7,5	WHT/BLU	Integrated control unit, cargo area lights, ceiling lights, courtesy lights, spotlights
38	20	WHT	Keyless/power door lock control unit
39	7,5	WHT/YEL	PCM, clock, audio unit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
