IKCO Samand Soren – fuse box diagram

IKCO Samand Soren – fuse box diagram

Year of production:

Fuse box on the dashboard

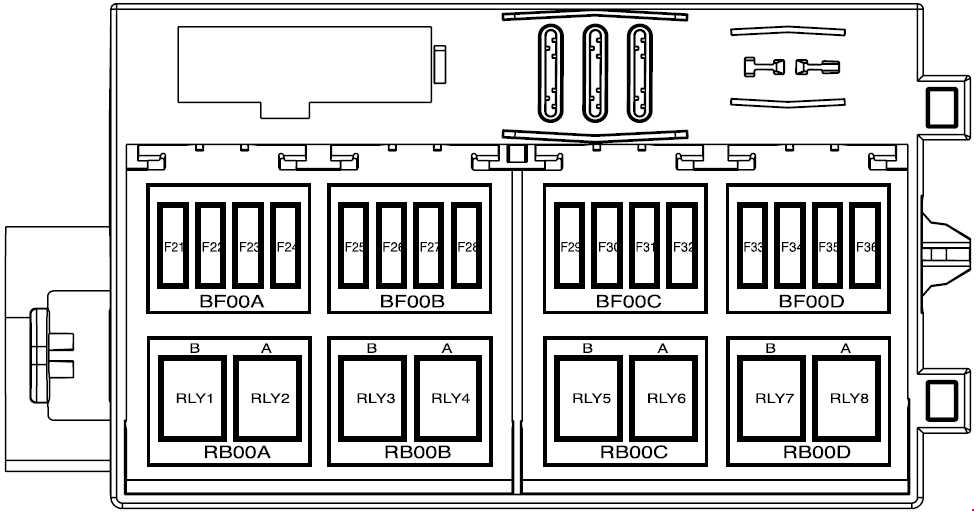

IKCO Samand Soren - fuse box diagram - dashboard
IKCO Samand Soren – fuse box diagram – dashboard
Fuse Fuse rating [A] Description
F1 20 Front seat electricity
F2 10 Ignition switch 1, 2 Radio electricity
F3 20 Lighter electricity
F5 30 Ventilation fan
F6 20 Starter
F7 Reserve
F8 5 CCN electricity
Immobilizer electricity
F9 15 Left rear fog lamp
Right rear gear lamp
Left brake lamp
Plate lamp
Right rear night warning lamp
Rear window key regulator lamp
RN electricity
F10 15 Left rear indicator
Right rear fog lamp Left rear gear lamp
Right brake lamp
Rear & front roof lamp controlled by doors
Left rear night warning lamp
RN electricity
F11 30 Electrical motivator of boot
Electrical motivator of rear doors
Electrical motivator of petrol tank
Rear door & boot lamp
Rear & front roof lamp in permanent position
F12 20 Reserve
F13 30 Rear window & mirror heater
Left rear electrical window regulator
Right rear electrical window regulator
F14 15 Radio & memory of radio
Diagnostic connector electricity
F15 5 Instrument panel light & central consul
Map reading lamp, Glove box lamp vanity mirror & electrical mirror
CCN electricity
Rear window heater &mirror heater key lamp
Flasher key lamp
Central lock key lamp
Electrical motivator of boot key lamp
FN electricity
ICN electricity
ICN memory
F16 5 Diagnostic connector electricity after switch
Ignition switch 2,3
ABS electricity
F17 10 Air bag
F21 20 Power Seat feeding
F22 30 Power switch feeding (position two) Airbag unit and ventilation system
F23 30 Power switch feeding (first position) Lighters
F24 30 Power switch feeding – the first situation (excitation heater relay, radio, brake lights, front node, central node, and instrument cluster), (irritation of glass heater relay
F25 30 Permanent feeding of radio
F26 30 Feeding of central node
F27 30 Feeding of central node
F28 30 Feeding of central node and stimulation of motivating relay of rear door
F29 30 Rear window regulator
F30 30 Feeding of central node(front glass regulator)
F31 30 Rear glass Heater
F32 30 Feeding heater fan
F33 30 Engine Start
F34 30 Main switch feeding (position two) Power switch (position two) Immobilizer, troubleshoot connectors, instrument cluster, cooler gas pressure sensor,
F35 30 Main switch feeding (position two) – Anti-lock brake system
F36 30 Feeding of Immobilizer battery power. Troubleshoot connectors, instrument cluster
R2 Electrical motivator in boot
R3 Rear glass Heater and mirrors
R4 Ventilation Relay fan
R5 Window Left rear regulator
R6 Window Left rear regulator
R7 Window Right rear regulator
R8 Window Right rear regulator

Fuse box in engine compartment

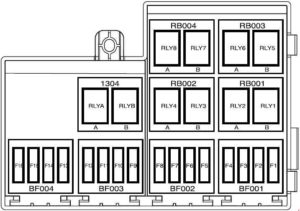

IKCO Samand Soren - fuse box diagram - engine compartment

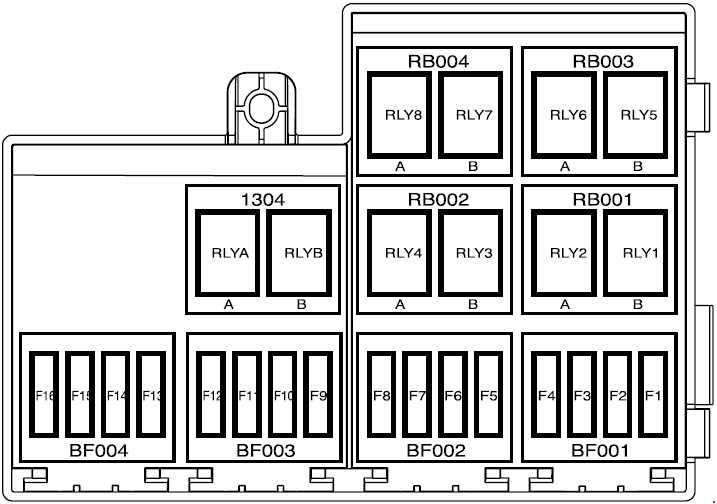

IKCO Samand Soren – fuse box diagram – engine compartment
Fuse Ampere ratting [A] Description
1 40 Power Start switch feeding
2 30 Front fog relay / horn
3 40 Internal power supply system
4 30 Internal power supply system
5 40 High speed fan
6 30 Low speed fan relay
7 30 Brake
8 30 Brake
9 40 Internal power supply system
10 20 Forward node supply
11 15 Forward node supply
12 30 Front /Rear Wiper Relay and Washer pump relay
13 Forward node supply
14 30 Double power supply relay
15 10 Feeding fuel pump
16 10 Engine unit supply
17 Reserve
18 Reserve
19 Reserve
20 Reserve
Ra Engine control relay
Rb Petrol pump Relay
R1 Fog Relay
R2 Horn Relay
R3 Windscreen wiper relay
R4 Windscreen wiper relay
R5 High speed fan relay
R6 High speed fan relay
R7 Fan relay
R8 Window Washer Pump Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
