Hyundai XG 250 – fuse box diagram

Hyundai XG 250 – fuse box diagram

Year of production:

Engine compartment

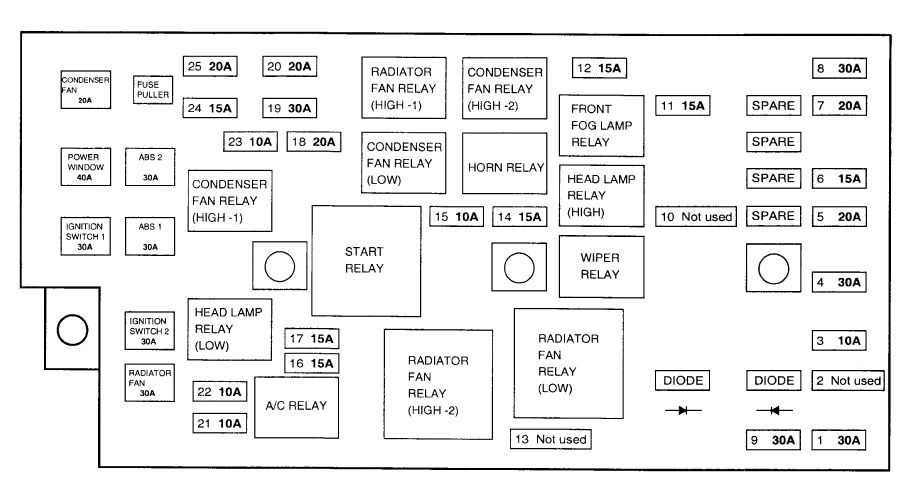

Hyundai XG 250 – fuse box diagram – engine compartment
Hyundai XG 250 – fuse box diagram – engine compartment
Description A Protected component
CONDENSER 20 Condenser fan motor
POWER WINDOW 40 Power window
IGNITION SWITCH 1 30 Ignition switch (ACC, IG 1)
ABS 1 30 ABS control
ABS 2 30 ABS control
IGNITION SWITCH 2 30 Ignition switch (IG2, Start)
RADIATOR 30 Radiator fan motor
1 REAR DEFOGGER 30 Defogger relay
2
3 ECM 10 Generator, ECM
4 PASSENGER COMPARTMENT JUNCTION BLOCK 1 30 Passenger compartment junction block (Fuse 1, 7, 17, 18, 19)
5 TAIL LAMP 20 Tail lamp relay
6 SUNROOF 15 Sunroof, Data link connector
7 POWER AMP 20 Speaker amp
8 PASSENGER COMPARTMENT JUNCTION BLOCK 2 30 Passenger compartment junction block (Fuse 4, 20, 24, 25)
9 BLOWER 30 Blower control
10
11 FRONT FOG LAMP 15 Front fog lamps
12 DRL 15 DRL control, Siren
13
14 HEAD LAMP (High) 15 Head lamps (High)
15 HORN 10 Horn
16 EGR 15 ECM, Fuel pump relay, PCV, ISA, CKP
17 OXYGEN SENSOR 15 Oxygen sensor, CCV
18 IGNITION COIL 20 Ignition coil, Ignition failure sensor
19 MAIN 30 Engine control relay
20 A/T 20 AfT control relay, TCM
21 A/C COMPRESSOR 10 A/C control
22 INJECTOR 10 Injector
23 ABS 10 ABS, Cruise
24 HEAD LAMP (Low) 15 Head lamps (Low)
25 FUEL PUMP 20 Fuel pump relay – motor

Passenger compartment

Front side

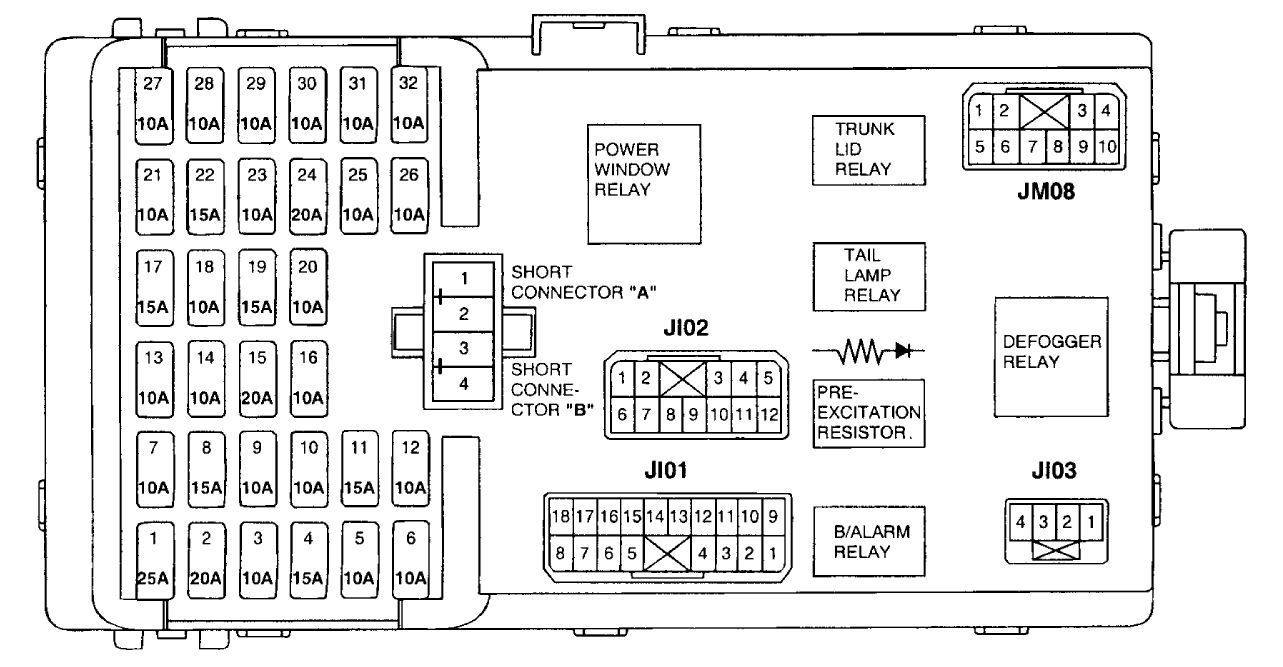

Hyundai XG 250 – fuse box diagram – passenger compartment (front side)
Hyundai XG 250 – fuse box diagram – passenger compartment (front side)

Backside

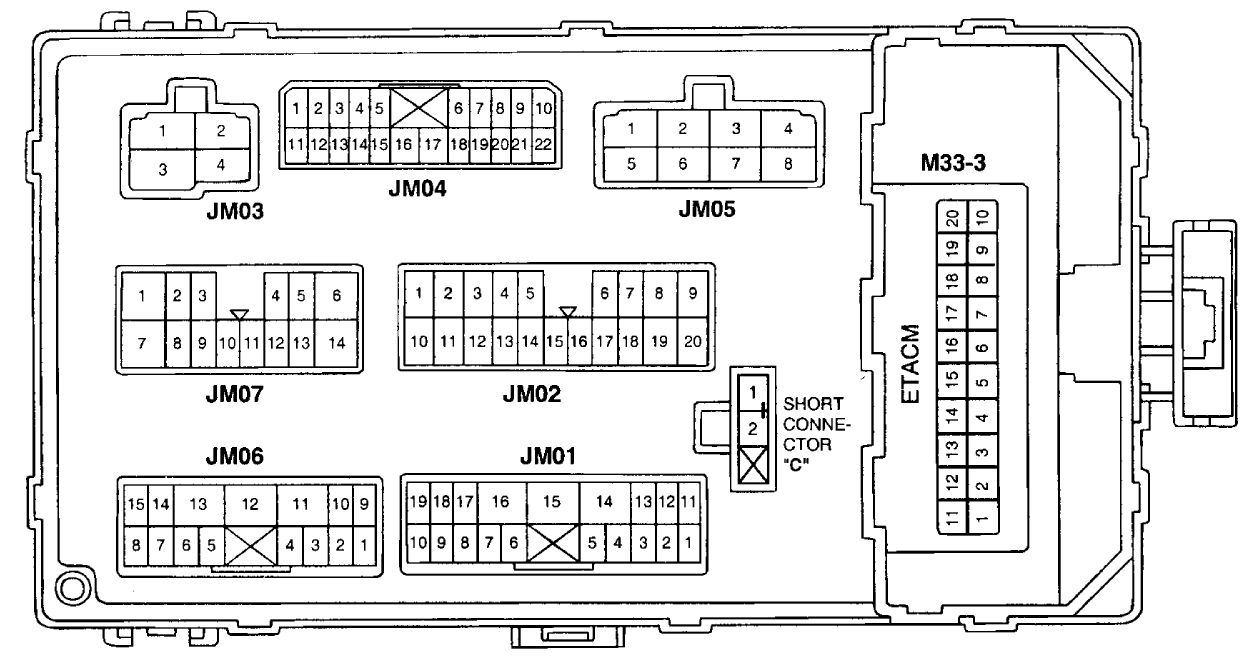

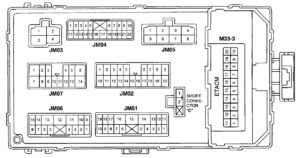

Hyundai XG 250 – fuse box diagram – passenger compartment (backide)
Hyundai XG 250 – fuse box diagram – passenger compartment (backide)
Fuse A Protected components
1 25 Power seat
2 20 Seat warmer
3 10 Power steering control module
4 15 ETS relay
5 10 Head lamp, DRL, AQS sensor, Left(Right) head lamp leveling actuator
6 10 A/C switch, High blower relay
7 10 Hazard switch, Hazard relay
8
9 10 Cruise control, HLLD, Stop lamp
10 10 IMS control
11 15 Wiper & Washer
12 10 ETACM, Blower relay, sunroof, mirror, NC control
13
14 10 Audio
15 20 Cigarette lighter, Accessory socket
16 10 IMS switch, Driver door module
17 15
18 10 Rear fog lamp relay
19 15 Stop lamp switch
20 10 Room lamp, Trunk room lamp, Door lamp
21 10 Instrument cluster
22 15 SRS, PPD
23 10 TCM, Back-up lamps, Speed sensor, Transaxle range switch
24 20 Fuel filler door & Trunk lid opener, Driver(Assister) door module
25 10 ETACM, NC control, Audio, Clock, Cluster, Trip computer, Immobilizer
26 10 Front fog lamps, Tail, parking & license lamps, Short connector “C”
27 10 Stop lamp failure sensor
28 10 Clock, Instrument cluster, Immobilizer, Trip computer, TCS
29 10 ETACM, Hazard switch, Auto light
30 10 Rear defogger glass, NC control, Left(Right) outside mirror & Folding motor
31 10 Tail, Parking & license lamps, Left(Right) vanity lamp
32 10 Burglar alarm relay

Relay box

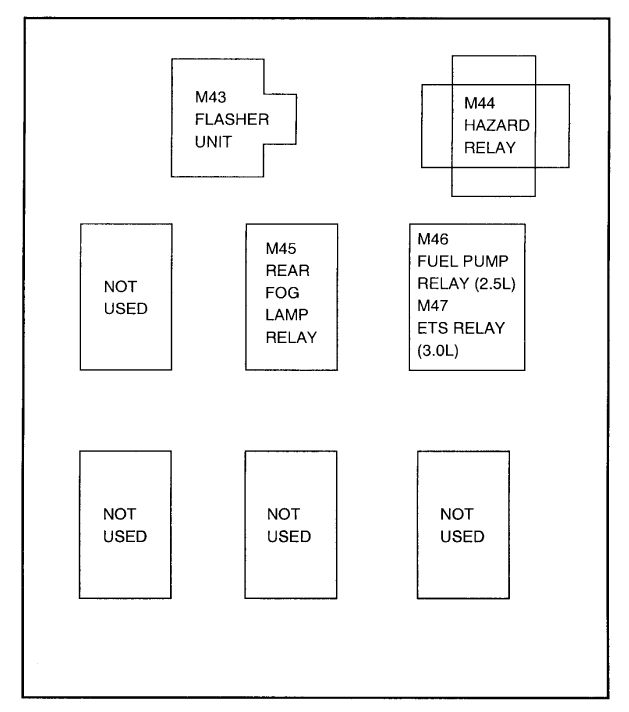

Hyundai XG 250 – fuse box diagram – relay box
Hyundai XG 250 – fuse box diagram – relay box

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
