Hyundai Terracan (2005 – 2007) – fuse box diagram
Year of production: 2005, 2006, 2007

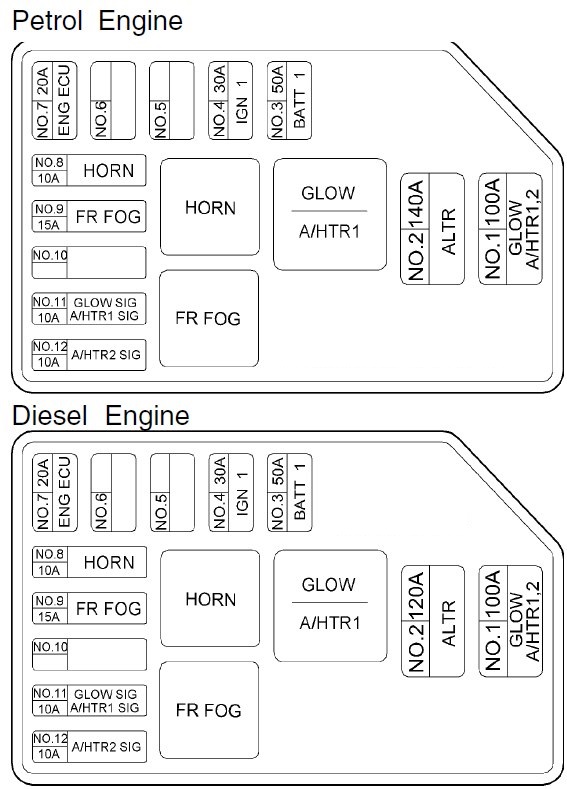

Engine compartment (#1)
| Description | Ampere rating [A] | Protected component | |
| FUSIBLE LINK | NO.1 | 100 | Glow Relay (COVEC-F/EGR), Air Heater Relay (Diesel Engine) |
| NO.2 | 120A (DIESEL) | Engine Compartment Fuse & Relay Box #2, | |
| 140A (PETROL) | Generator | ||
| NO. 3 | 50 | Inner Panel Fuse Box (Fuse 1,2,3,4,5) | |
| Engine Compartment Fuse & Relay Box #1 (Fuse 8,9) | |||
| Fuel Heater Control Module (COVEC-F/EGR) | |||
| NO.4 | 30 | Generator, Ignition Switch | |
| NO.5 | — | — | |
| NO.6 | — | — | |
| FUSE | NO. 8 | 10 | Horn Relay |
| NO. 9 | 15 | Front Fog Lamp Relay | |
| NO. 10 | — | — | |
| NO. 11 | 10 | ECM (Diesel Engine), EGR Control Module | |
| NO. 12 | 10 | ECM (Diesel Engine) | |

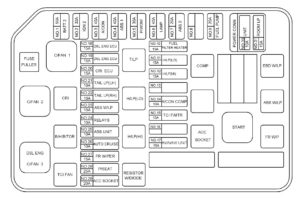

Engine compartment (#2)
| Description | Ampere rating [A] | Protected component | |
| FUSE | NO. 10 | 15 | Fuel Heater and Sensor(Diesel Engine) |
| NO. 11 | 15 | Headlamp(Low beam) | |
| NO. 12 | 15 | Headlamp(High beam) | |
| NO. 13 | — | — | |
| NO. 14 | 10 | A/C Compressor Relay, Triple Switch | |
| NO. 15 | 10 | TCI Fan Relay(COVEC-F/EGR) | |
| NO. 16 | — | — | |
| NO. 17 | 15 | — | |
| NO. 18 | 15 | ECM(Diesel Engine) | |
| NO. 19 | 15 | ECM(Diesel Engine) | |
| NO. 20 | 15 | ECM(Diesel Engine), Air Heater Relay(Diesel Engine), EGR Solenoid(Diesel Engine) | |
| NO. 21 | 10 | Illuminations, Combination Lamp | |
| NO. 22 | 10 | License Lamp, Combination Lamp | |
| NO. 23 | 10 | ABS Control Module, ABS Relay, EBD Relay | |
| NO. 24 | 10 | ECM(Diesel Engine), Headlamp Relay, Condenser Fan Relay (Petrol/COVEC-F), EGR Solenoid(COVEC-F) | |
| NO. 25 | 10 | ABS Control Module | |
| NO. 26 | 10 | Cruise Control Module | |
| NO. 27 | 15 | Front Wiper and Washer | |
| NO. 28 | 25 | Power Seat Switch | |
| NO. 29 | 20 | Power Outlet Relay | |
| FUSIBLE LINK | NO. 1 | 50 | Power Connector(A,B), Engine Compartment Fuse and Relay #2 (Fuse 28,29), Inner Panel Fuse Box(Fuse 6,7,8, 9) |
| NO. 2 | 30 | Start Relay, Ignition Switch | |
| NO. 3 | 40 | Condenser Fan Relay, Engine Compartment Fuse and Relay Box #2 (Fuse 14,15) | |
| NO. 4 | 40 | ABS Control Module | |
| NO. 5 | 30 | Power Window Relay | |
| NO. 6 | 40 | Tail Lamp Relay, Engine Compartment Fuse and Relay Box #2 (Fuse 11,12) | |
| NO. 7 | 20 | ABS Control Module | |
| NO. 8 | — | — | |
| NO. 9 | 20 | Fuel Pump Relay, ECM, Ignition Failure Sensor | |
| NO. 30 | 10 | A/CON, TCM, ETACM, Data Link Connector, Siren, Immobiliser Control Module | |
| NO. 31 | 15 | Interior Lamp, Map Lamp, Audio, Instrument Cluster, Front Door Edge Warning Lamp | |

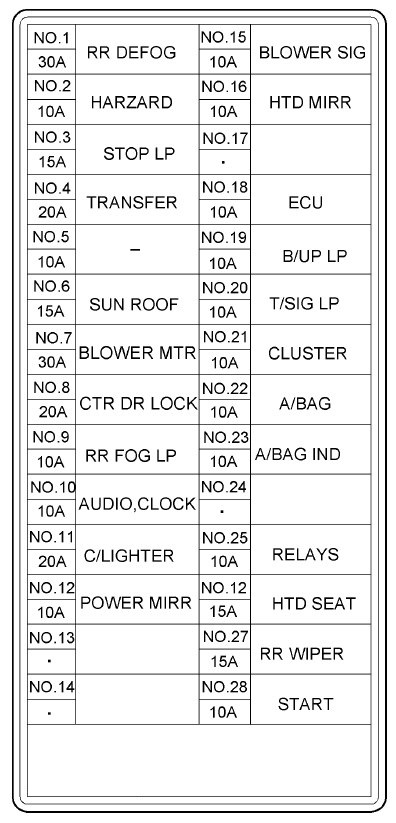

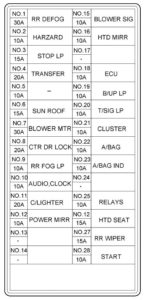

Inner Panel
| Number | Ampere rating [A] | Protected component |
| 1 | 30 | Defogger Relay |
| 2 | 10 | Hazard Relay, Hazard Switch |
| 3 | 15 | Stop Lamp Switch |
| 4 | 20 | TOD, EST Control Module |
| 5 | 10 | — |
| 6 | 15 | Sunroof Controller |
| 7 | 30 | Blower Relay |
| 8 | 20 | Power Door Locks |
| 9 | 10 | Rear Fog Lamp Relay |
| 10 | 10 | Audio, Map Lamp |
| 11 | 20 | Cigar Lighter, Power Outlet relay, ACC Socket |
| 12 | 10 | Power Outside Mirror Switch |
| 13 | — | — |
| 14 | — | — |
| 15 | 10 | A/C Switch |
| 16 | 10 | Left/Right Outside Mirror & Defogger |
| 17 | — | — |
| 18 | 10 | TCM, ECM(COVEC-F), TCCS(TOD, EST), Immobiliser |
| 19 | 10 | Back-up Lamp Switch, Inside Rearview Mirror, Transmission Range Switch |
| 20 | 10 | Hazard Switch |
| 21 | 10 | Instrument Cluster, ETACM, Vehicle Speed Sensor, DRL Control Module |
| 22 | 10 | Airbag |
| 23 | 10 | Airbag Indicator |
| 24 | — | — |
| 25 | 10 | Blower & A/C, ETACM, Defogger Relay |
| 26 | 15 | Seat Warmer |
| 27 | 15 | Sunroof, Rear Wiper & Washer, Cruise Switch, Rear Intermittent Wiper Relay |
| 28 | 10 | Start Relay, Theft-Alarm Relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
