Hyundai Trajet (2004 – 2008) – fuse box diagram

Hyundai Trajet (2004 – 2008) – fuse box diagram

Year of production: 2004, 2005, 2006, 2007, 2008

Passenger compartment fuse box

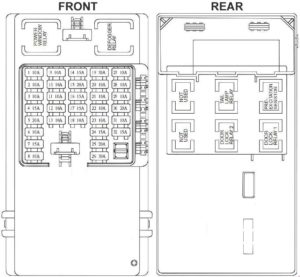

Hyundai Trajet – fuse box diagram – passenger compartment
Hyundai Trajet – fuse box diagram – passenger compartment
No.
A
Function/component
1 10 Immobilizer, Instrument cluster, Overhead console lamp, ECM, Mass air flow sensor, Engine oil level sensor unit
2 10 Instrument cluster
3 10 Hazard switch
4 15 SRS control
5 20 Power outlet
6 10 Audio, Outside mirror & folding
7 15 Cigarette lighter
8 10 Seat belt tension reducer
9 10 A/С control, Outside mirror & folding
10 10 A/С control
11 10 Auto light, TCM, A/T pulse generator, Back-up lamp, Transaxle range switch
12 10 A/С control, Audio, Overhead console lamp
13 10 Room lamps, Instrument cluster
14 15 Door lock relay
15 20 AMP speaker
16 15 Sunroof, Overhead console lamp
17 15 Immobilizer, Fuel filler opener
18 10 Rear fog lamp
19 30 Defogger relay, Fuse 9
20 10 Short connector “B”, Illumination lamps, Rear fog lamp, Exterior lamps
21 10 А/С control, Sunroof, Rain sensor
22 15 Rear A/C
23 10 Hazard relay, Check connector, Data link connector
24 15 Stop lamp switch
25 20 Front wiper & washer, Rain sensor
26 30 Fuse (Ignition coil, ABS), Engine control relay, ECM
27 10 В/Alarm relay, Cruise control, Transaxle range switch, Starting (M/T), ECM, PCM
28 10 Head lamp, License lamp, Exterior lamps
29 10 Stop lamp switch, Cruise control, Front wiper, Fuel filter
30 20 Seat warmer
31 10 AQS sensor, Head lamp leveling, Head lamp, DRL control
32 15 Rear wiper & Washer

Engine compartment fuse box

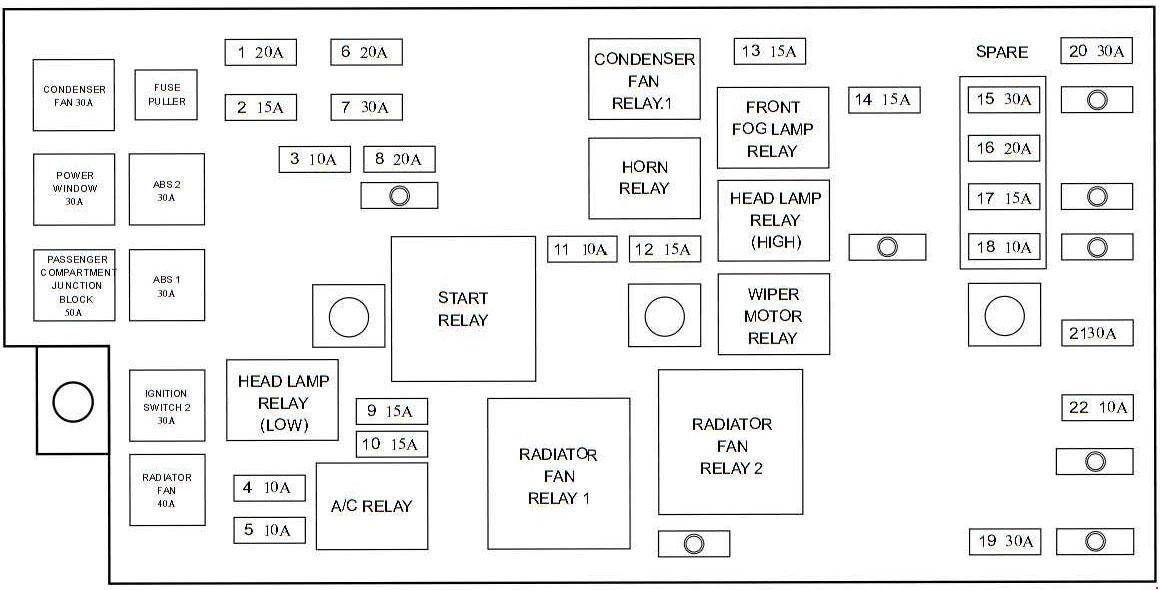

Hyundai Trajet – fuse box diagram – engine compartment
Hyundai Trajet – fuse box diagram – engine compartment
No.
A
Label
Function/component
1 20 FUEL PUMP Fuel pump relay
2 15 HEAD LAMP (LOW) Head lamp relay (LOW)
3 10 ABS ABS control module
4 10 INJECTOR Injector, SMATRA, Stop lamps
5 10 A/С COMPRESSOR A/С relay
6 20 ATM A/T control relay, TCM
7 30 MAIN Engine control relay
8 20 IGNITION COIL Ignition failure sensor, Ignition coil
9 15 OXYGEN SENSOR Oxygen sensor
10 15 EGR Fuel pump relay, Glow relay, Camshaft position sensor, Crankshaft position sensor, EGR actuator, Purge control solenoid valve
11 10 HORN Horn relay
12 15 HEAD LAMP (HIGH) Head lamp relay (HIGH)
13 15 DRL DRL control module, Siren
14 15 FRONT FOG LAMP Front fog lamp relay
14 15 FRONT FOG LAMP Front fog lamp relay
15 30 SPARE Spare
16 20 SPARE Spare
17 15 SPARE Spare
18 10 SPARE Spare
19 30 BLOWER Blower relay
20 30 IGNITION SWITCH 1 Ignition switch (ACC, IG1)
21 30 PASSENGER COMPARTMENT JUNCTION BLOCK 1 Passenger compartment junction block (Fuse 22-24)
22 10 ECM Generator, ECM, TCM
FUSIBLE LINK 30 CONDENSER FAN Condenser fan relay #1
30 POWER WINDOW Power window relay
30 IGNITION SWITCH 2 Ignition switch (IG2, START), Start relay
30 ABS 1 ABS control
30 ABS 2 ABS control
50 PASSENGER COMPARTMENT JUNCTION BLOCK 2 Passenger compartment junction block (Short connector “A”, Fuse 12-19, Tail lamp relay)
40 RADIATOR FAN Radiator fan relay

Relay box

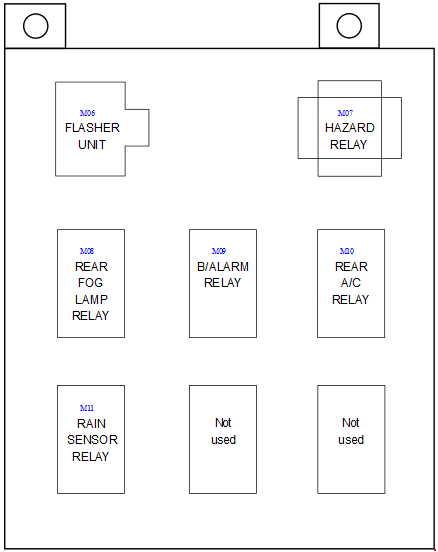

Hyundai Trajet – fuse box diagram – relay box
Hyundai Trajet – fuse box diagram – relay box

Diesel

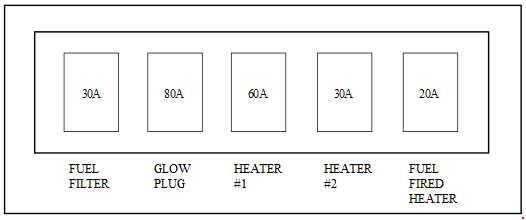

Hyundai Trajet – fuse box diagram – diesel
Hyundai Trajet – fuse box diagram – diesel

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
