Hyundai Sonata (2014) – fuse box diagram

Hyundai Sonata (2014) – fuse box diagram

Year of production: 2014

Instrument panel (Driver’s side fuse panel)

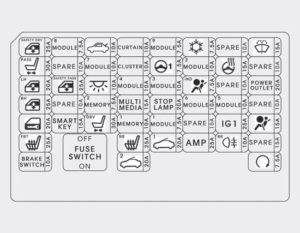

Hyundai Sonata – fuse box – instrument panel (driver’s side fuse panel)
Hyundai Sonata – fuse box – instrument panel (driver’s side fuse panel)
Fuse name Symbol Ampere rating [A] Protected component
SAFETY WINDOW LH 25 Driver Safety Power Window Module
P/SEAT PASS 30 Passenger Seat Manual Switch
P/WDW LH 20 Power Window Main Switch, Rear Power Window Module LH
P/WDW RH 25 Power Window Main Switch, Rear Power Window Module RH Passenger Door Module, Passenger Power Window Switch
S/HEATER FRT 25 Front Air Ventilation Seat Module, Front Seat Warmer Module
BRAKE SWITCH 10 Stop Lamp Switch, Immobilizer Module Smart Key Control Module
MODULE 8 7,5 BCM, Smart Key Control Module
SAFETY POWER WINDOW RH 25 Passenger Safety Power Window Module
SMART KEY 15 Smart Key Control Module
TRUNK 10 Trunk Lid Relay, Fuel Filler Door & Trunk Lid Switch
MODULE 7 10 Digital Clock, Driver/Passenger Door Module
INTERIOR LAMP 10 Glove Box Lamp, Ignition Key Ill. & Door Warning Switch, Front Vanity Lamp Switch LH/RH, Overhead Console Lamp, Room Lamp, Rear Personal Lamp LH/RH, Trunk Room Lamp, Driver/Passenger Smart Key Outside Handle Driver/Passenger Door Lamp
MEMORY 2 7,5 UIP Sensor
P/SEAT DRV 30 Driver Seat Manual Switch, Driver IMS Module
CURTAIN 10 Rear Curtain Module
CLUSTER 10 Instrument Cluster
MODULE 4 10 Immobilizer Module, Smart Key Control Module
MULTI MEDIA 15 Audio, A/V & Navigation Head Unit
MEMORY 1 10 Driver/passenger Door Module, Instrument Cluster, Digital Clock, Driver IMS Module, Rain Sensor, Auto Light & Photo Sensor, ICM Relay Box(Outside Mirror Folding/Unfolding Mirror Relay), A/C Control Module, Rear Curtain Module, Data Link Connector, BCM
S/HEATER RR 25 Rear Seat Warmer Module
SUN ROOF 2 20 Panorama Sunroof Motor
MODULE 9 7,5 Front Air Ventilation Seat Module, Front Seat Warmer Module Rear Seat Warmer Module, Rear Curtain Module

Driver’s side fuse panel

Fuse name Symbol Ampere rating [A] Protected component
MDPS 7,5 MDPS Unit
MODULE 3 10 BCM, Sport Mode Switch, Stop Lamp Switch
STOP LAMP 20 Stop Signal Electronic Module
MODULE 1 7,5 Key Solenoid, Driver/Passenger Door Module
SUN ROOF 1 20 Panorama Sunroof Motor
A/CON 7,5 A/C Control Module, E/R Junction Block (RLY. 3 – Blower Relay)
2 MODULE 10 AMP, Power Outside Mirror Switch, Digital Clock, Audio, A/V & Navigation Head Unit, Smart Key Control Module, Overhead Console Lamp, BCM, E/R Junction Block (RLY. 5 – Power Outlet Relay)
A/BAG IND 7,5 Instrument Cluster
6
MODULE
10 Multipurpose Check Connector, A/C Control Module, A/V & Navigation Head Unit, Electro Chromic Mirror, Front Air Ventilation Seat Module, Front Seat Warmer Module, Rear Seat Warmer Module, Driver IMS Module, A/T Shift Lever IND, Auto Head Lamp Leveling Device Module, Head Lamp Leveling Device Actuator LH/RH
AMP 25 AMP (JBL/MOBIS)
HTD STRG 15 BCM
5
MODULE
10 Front Console Switch, Blind Spot Detection Radar, Fuel Filler Door & Trunk Lid Switch, Front Parking Assist Sensor, Rear Parking Assist Sensor,
IG1 25 PCB Block (Fuse – F1/F2/F7/F8)
Rear Fog Lamp 10 ICM Relay Box (Rear Fog Lamp Relay)
WASHER 15 Multifunction Switch (Wiper Low & Washer Switch)
POWER OUTLET 20 Cigarette Lighter
A/BAG 15 SRS Control Module
START 7,5 [W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay)
[With Smart Key / IMMO.-A/T]
Transaxle Range Switch, PCM (G4KJ/G4KH)
[With Smart Key / IMMO.-M/T]
Ignition Lock & Clutch

Engine compartment fuse panel

Hyundai Sonata – fuse box – engine compartment
Hyundai Sonata – fuse box – engine compartment
Fuse name Symbol Ampere rating [A] Protected component
IG2 30 [W/O Smart Key] RLY. 8 (Start Relay), Ignition Switch, [With Smart Key] RLY. 8 (Start Relay), PCB Block (IG2 Relay)
BLOWER 40 RLY. 3 (Blower Relay)
ABS 1 40 ABS Control Module, ESP Control Module
REAR HEATED 50 RLY. 1 (Rear Heated Relay)
B+ 3 50 Smart Junction Block (IPS2 (4CH), IPS3 (4CH), Fuse – F28/F29)
COOLING FAN 1 50 [W/O G4KE / Middle East] RLY.11 (Cooling Fan Relay), RLY.12 (Cooling Fan Relay)
COOLING FAN 2 60 [With G4KE / Middle East] RLY.11 (Cooling Fan Relay), RLY.12 (Cooling Fan Relay)
MDPS 1 80 MDPS Unit
ABS 2 30 ABS Control Module, ESP Control Module, Multipurpose Check Connector
IG1 40 [W/O Smart Key] Ignition Switch, [With Smart Key] PCB Block (IG1/ACC Relay)
POWER
OUTLET 3
40 RLY. 5 (Power Outlet Relay)
B+ 2 50 Smart Junction Block (IPS1 (4CH), IPS4 (4CH), IPS5 (4CH), Fuse – F36/F42)
B+ 5 60 PCB Block (Engine Control Relay, Fuse – F4/F5/F6/F13/F14/F22)
B+ 1 60 Smart Junction Block
(Power Window Relay, Fuse -F1/F2/F3/F4/F10/F13/F17/F18/F23/F24/F30)
E-CVVT 3 20 [G4KJ/G4KH] PCM
E-CVVT 2 20 [G4KJ/G4KH] PCM
DEICER 20 RLY. 7 (Deicer Relay)
DRL Lamp 20 RLY. 2 (DRL Lamp Relay)
H/LAMP HI 20 [With HID] RLY. 4 (Head Lamp High Relay)
VACUUM
PUMP 1
20 [G4KH/G4FJ] Vacuum Pump
E-CVVT 1 40 [G4KJ/G4KH] RLY. 9 (E-CVVT Relay)
H/Lamp
Washer
40 RLY. 6 (H/Lamp Washer)
B+ 4 40 Smart Junction Block (Leak Current Autocut Device Fuse – F15/F16/F21/F22, Fuse – F5/F6/F7/F12)
A/CON 10 A/C Control Module
HEATED MIRROR 10 A/C Control Module, Drover/Passenger Power Outside Mirror

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
