Hyundai i40 (2015 – 2016) – fuse box diagram

Year of production: 2015, 2016

Instrument panel (Driver’s side fuse panel)

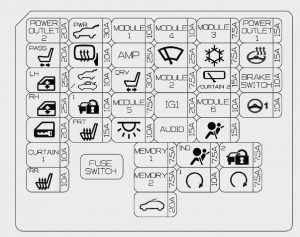

Hyundai i40 – fuse box – instrument panel
Hyundai i40 – fuse box – instrument panel
Number Fuse rating Symbol Fuse name Protected component
1 20 POWER
OUTLET 2		 Console Power Outlet, Rear Power Outlet
2 30 POWER
TAIL GATE		 Power Tail Gate
3 10 MODULE 1 Smart Key Control Module, BCM, Audio, AMP, JBL AMP, A/V & Navigation Head Unit, DC-DC Converter (Audio/AMP), Over Head Console Lamp, Parking Guide System, Power Outside Mirror Switch
4 10 MODULE 4 E/R Fuse & Relay Box (RLY. 12), Stop Lamp Switch, Multipurpose Check Connector, Active Air Flap Unit, Fuel Filter Warning Sensor (D4FD)
5 7,5 MODULE 3 Smart Key Control Module, BCM, Panorama Sunroof, Rain Sensor, Driver/Passenger CCS Control Module, ICM Relay Box (Headlamp Washer Relay)
6 15 POWER
OUTLET 1		 Front Power Outlet
7 20 P/SEAT PASS Passenger Manual Switch
8 10 HTD MIRR Driver/Passenger Power Outside Mirror, ECM/PCM, A/C Control Module
9 25 AMP AMP, JBL AMP, DC-DC Converter (AMP)
10 25 WIPER FRT ICM Relay Box (Rain Sensor Relay), Multifunction Switch, E/R Fuse & Relay Box (RLY. 7), Front Wiper Motor
11 7,5 A/CON E/R Fuse & Relay Box (RLY. 4), EMS Box (Fuel Heater Relay), Diesel Box (PTC Heater Relay #2/#3), A/C Control Module
12 15 STEERING
WHEEL HEATER		 Steering Wheel Heater
13 25 P/WDW LH Power Window LH Relay, Power Window Main Switch, Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module LH, Rear Power Window Switch LH
14 10 PDM 1 Tail Gate Open Relay, Trunk Lid Latch (SEDAN), Power Tail Gate Latch/Tail Gate Latch (WAGON), ICM Relay Box (Fuel Filler Lock/Unlock Relay)
15 30 P/SEAT DRV Driver IMS Module, Driver Manual Switch
16 7,5 MODULE 2 BCM, Immobilizer Module, DC-DC Converter (Audio/AMP), Audio, Electro Chromic Mirror, Lane Keeping Assist Module, A/C Control Module, Head Lamp LH/RH, Driver IMS Module, Auto Head Lamp Leveling Device Module, Portable Lamp, Head Lamp Leveling Device Actuator LH/RH, Rear Seat Warmer LH/RH, Tire Pressure Monitoring Module, Driver/Passenger CCS Control Module, ATM Shift Lever IND., Console Switch, Driver/Passenger Seat Warmer Modul
17 15 WIPER RR Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch, Rear Curtain Module
18 10 BRAKE SWITCH Stop Lamp Switch, Smart Key Control Module
19 25 P/WDW RH Power Window RH Relay, Power Window Main Switch, Passenger Power Window Switch, Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module RH, Rear Power Window Switch RH
20 10 PDM 2 Smart Key Control Module, Start/Stop Button Switch, Immobilizer Module
21 7,5 MODULE 5 Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Mirror, Active Air Flap Unit, Rear Seat Warmer Switch LH/RH, Auto Light & Photo Sensor, Sport Mode Switch, Key Solenoid
22 20 IG1 E/R Fuse & Relay Box (Fuse – F27, F28, F29, F30, F31)
23 10 MODULE 6 Instrument Cluster, Front Seat Warmer Switch LH/RH, Adaptive Front Lighting Module, Electric Parking Brake Module
24 10 MDPS EPS Control Module
25 20 DR LOCK Door Lock/Unlock Relay, ICM Relay Box (Dead Lock Relay), Driver/Passenger Door Lock Actuator, Rear Door Lock Actuator LH/RH
26 15 S/HEATER FRT Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Modul
27 10 INTERIOR LAMP Driver/Passenger Door Lamp, Overhead Console Lamp, Portable Lamp, Room Lamp, Glove Box Lamp, Luggage Lamp, Driver/Passenger Foot Lamp, Trunk Room Lamp, Rear Personal Lamp LH/RH, Vanity Lamp LH/RH
28 15 MULTI MEDIA Audio, A/V & Navigation Head Unit, DC-DC Converter (Audio)
29 15 A/BAG SRS Control Module
30 10 CURTAIN Rear Curtain Module
31 7,5 MEMORY 1 Instrument Cluster, Tire Pressure Monitoring Module, Rear Curtain Module, Tilt Sensor, A/C Control Module, BCM, Ultrasonic Instrusion Protection Sensor, Siren, Driver IMS Module, Power Outside Mirror Switch
32 7,5 A/BAG IND Instrument Cluster
33 7,5 PDM 3 Smart Key Control Module
34 10 S/HEATER RR Rear Seat Warmer Module LH/RH
35 7,5 MEMORY 2 RF Receiver
36 10 PDM 1 Smart Key Control Module
37 7,5 START W/O Button Start : E/R Fuse & Relay Box (RLY. 8),
Ignition Lock Switch, Transaxle Range Switch
With Button Start : ECM/PCM, Transaxle Range Switch
38 20 SUNROOF Panorama Sunroof

Engine compartment

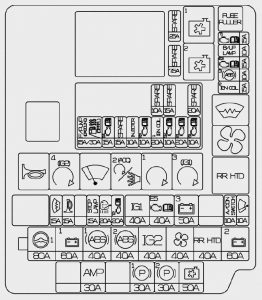

Hyundai i40 – fuse box – engine compartment
Hyundai i40 – fuse box – engine compartment
Number Fuse rating Symbol Fuse name Circuit protected
MULTI FUSE 1 80 MDPS EPS Control Module
2 60 B+ 1 I/P Junction Box (IPS 0 (4CH), IPS 1 (4CH), IPS 2 (2CH), Fuse – F13/F14/F19/F20/F21/F26/F36)
3 40 ABS 1 ESP Control Module, Multipurpose Check Connector
4 40 ABS 2 ESP Control Module, Multipurpose Check Connector
5 40 IG 2 RLY. 9 (Start Relay), Ignition Switch (W/O Button Start), RLY. 6 (PDM 4 (IG2) Relay, With Button Start)
6 40 BLOWER RLY. 4 (Blower Relay)
7 40 RR HTD RLY. 11 (Rear Defogger Relay)
8 60 B+ 2 I/P Junction Box (IPS 3 (4CH), IPS 4 (4CH), Fuse – F2/F7/F9/F15)
FUSE 9 30 AMP DC-DC Converter (AMP)
10 30 EPB 1 Electric Parking Brake Module
11 30 EPB 2 Electric Parking Brake Module
12 50 C/FAN RLY. 1 (C/FAN LO Relay), RLY. 2 (C/FAN HI Relay)
13 15 FRONT
DEICER		 ICM Relay Box (Front Deicer Relay)
14 15 HORN RLY. 5 (Horn Relay), ICM Relay Box (Front Deicer Relay)
15 15 STOP LAMP RLY. 12 (HAC Relay), Stop Signal Relay
16 20 HEAD LAMP WAHSER ICM Relay Box (Head Lamp Washer Relay)
17 20 TCU 2 D4FD & A/T : TCM
18 40 IG 1 W/O Button Start : Ignition Switch,
With Button Start : RLY. 8 (PDM 2 (ACC) Relay)/RLY. 10 (PDM 3 (IG1) Relay
19 40 EMS BOX EMS Box
20 50 B+ 3 I/P Junction Box (Leak Current Autocut Device, Fuse – F18/F25/F30/F34/F38)
21 10 A/CON SW A/C Control Module
22 10 WIPER PCM/ECM
23 15 TCU 1 A/T – TCM (D4FD), Transaxle Range Switch
24 10 B/UP LP M/T – Back-Up Lamp Switch, A/T – Rear Combination Lamp (IN) LH/RH, Rear Curtain Module, A/V & Navigation Head Unit, Electro Chromic Mirror, IPS Control Module
25 15 ECU 3 RLY. 9 (D4FD, Start Relay), ECM/PCM, Air Flow Sensor (D4FD)
26 10 ABS 3 ESP Control Module
27 15 IGN COIL 2 G4FD/G4NC – Ignition Coil #1/ #2/ #3/ #4, Condenser
28 15  – (GSL) F/PUMP (GSL) Fuel Pump Relay, Fuel Filter Heater Relay
30  – (DSL) FUEL HTR (DSL)
29 15 FUEL HTR (DSL) G4FD : ECM
G4NA/G4NC : PCM (A/T), ECM (M/T)
30 10 ECU 4 SPARE
31 10 SPARE G4NA – Injector #1/#2/#3/#4
32 10 INJECTOR G4FD : ECM
G4NA : Fuel Pump Relay
G4NC : Fuel Pump Relay, PCM (A/T), ECM (M/T)
D4FD : Oil Level Sensor, Fuel Pressure Regulating Valve
33 20 ECU 2 G4NA : Ignition Coil #1/#2/#3/#4, Condenser
34 20 IGN COIL 1 G4FD/D4FD : ECM
G4NA/G4NC : PCM (A/T), ECM (M/T)
35 10 ECU 1 G4FD : Oil Control Valve #1/ #2, Oil Level Sensor, E/R Fuse & Relay Box (RLY. 1)
G4NA/G4NC : Oil Control Valve #1/ #2, Camshaft Position Sensor
(Intake/Exhaust), E/R Fuse & Relay Box (RLY. 1)
D4FD : E/R Fuse & Relay Box (RLY. 1), Diesel Box (PTC Heater Relay#1),
Lambda Sensor, VGT Control Solenoid Valve
36 10 SENSOR 2 G4FD : Oil Control Valve #1/ #2, Oil Level Sensor, E/R Fuse & Relay Box (RLY. 1)
G4NA/G4NC : Oil Control Valve #1/ #2, Camshaft Position Sensor (Intake/Exhaust),
E/R Fuse & Relay Box (RLY. 1)
D4FD : E/R Fuse & Relay Box (RLY. 1), Diesel Box (PTC Heater Relay#1),
Lambda Sensor, VGT Control Solenoid Valve

Number Symbol Fuse name Type
37 C/FAN LO RELAY PLUG MICRO
38 C/FAN HI RELAY PLUG MICRO
39 ESS ESS RELAY PLUG MICRO
40 BLOWER RELAY PLUG MICRO
41 HORN RELAY PLUG MICRO
42 PDM 4 (IG2) RELAY PLUG MICRO
43 FRONT WIPER RELAY PLUG MICRO
44 PDM 2 (ACC) RELAY PLUG MICRO
BURGLAR ALARM, HORN RELAY PLUG MICRO
45 START RELAY PLUG MICRO
46 PDM 3 (IG1) RELAY PLUG MICRO
47 RR HTD RELAY PLUG MINI

Engine compartment sub fuse panel (Diesel Engine)

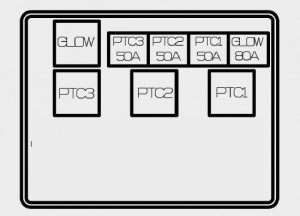

Hyundai i40 – fuse box – engine compartment (diesel engine)
Hyundai i40 – fuse box – engine compartment (diesel engine)

Circuit

Number Fuse name Fuse rating Circuit protected
1 GLOWA 80 Glow Relay
2 PTC HEATER #1 50 PTC HEATER #1
3 PTC HEATER #2 50 PTC HEATER #2
4 PTC HEATER #3 50 PTC HEATER #3

Relay Type

Number Relay name Relay type
1 Glow Relay MINI PLUG
2 PTC Heater Relay #1 MINI PLUG
3 PTC Heater Relay #2 MINI PLUG
4 PTC Heater Relay #3 MINI PLUG

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
