Hyundai Genesis Coupe (2013 – 2016) – fuse box diagram

Hyundai Genesis Coupe (2013 – 2016) – fuse box diagram

Year of production: 2013, 2014, 2015, 2016

(Variant 1)

Instrument panel

Hyundai Genesis Coupe - fuse box diagram - instrument (variant 1)
Hyundai Genesis Coupe – fuse box diagram – instrument (variant 1)
Description Fuse rating Protected component
AUDIO 15A Audio, A/V & Navigation Head Unit, Multi Gauge, Multi Monitor Front Monitor, MTS Module
DRV P/SEAT 30A Driver Seat Manual Switch, Driver Lumbar Support Switch
HAZARD 15A BCM, Flasher Sound Relay
PDM1 25A PDM
ROOM LP 10A Driver/Passenger Door Lamp, Trunk Room Lamp Driver/Passenger Door Scuff Lamp, Vanity Lamp LH/RH Map Lamp
C/LIGHTER 15A Front Power Outlet
MEMORY1 10A BCM, Data Link Connector, Auto Light & Photo Sensor Ignition Key ILL. & Door Warning Switch, Electro Chromic Mirror Instrument Cluster (IND. MICOM), A/C Control Module Tire Pressure Monitoring Module
MEMORY2 7.5A RF Receiver
ABS 7.5A E/R Junction Box LH (Multipurpose Check Connector) ESC Module, ESC & PAS Switch, Steering Angle Sensor
A/BAG IND 7.5A Instrument Cluster (Air Bag IND.)
A/BAG 15A SRS Control Module, A/C Control Module, PODS Module
B/UP LP 15A Back-Up Lamp Switch, TCM, Transmission Range Switch
MODULE3 10A ECM, PDM, Smart Key Control Module, Injector Drive Box (G6DJ)
MODULE1 7.5A AMP, Audio, A/V & Navigation Head Unit, Multi Monitor, MTS Module Front Monitor, Map Lamp, Power Outside Mirror Switch
POWER OUTLET 15A Console Power Outlet
MODULE6 10A BCM, PDM, Smart Key Control Module
MODULE2 7.5A IPS Control Module, Instrument Cluster (IND, MICOM), BCM, ATM Shift Lever IND., Multifunction Switch (Remote Control), Multi Gauge, Cruise Clutch Pedal Position Switch, A/C Control Module, Auto Head Lamp Leveling Device Unit, Stop Lamp Switch, Driver/Passenger Seat Warmer Module, Electro Chromic Mirror, MTS Module, Tire Pressure Monitoring Module, Head Lamp Leveling Device Actuator LH/RH, Front Parking Assist Sensor LH/RH Rear Parking Assist Sensor Side LH/RH Rear Parking Assist Sensor Center LH/RH
MODULE5 7.5A Sport Mode Switch (A/T), Key Solenoid
STOP LP 15A Stop Signal Relay
MODULE7 7.5A Blower Relay, Sunroof Control Module, A/C Control Module, Cluster Ionizer (Auto A/C)
MODULE4 7.5A BCM, PDM, IPS Control Module, Vacuum Switch E/R Junction Box LH (Vacuum Pump Relay)
WIPER FRT 25A MultiFunction Switch (Wiper), Front Wiper Motor E/R Junction Box LH (Wiper FRT Relay)
START 10A E/R Junction Box LH (Start Relay), Ignition Lock Switch, PDM Transmission Range Switch, ECM (G6DJ), B/Alarm Relay
BLOWER 7.5A A/C Control Module
HTD MIRR 7.5A A/C Control Module, Driver/Passenger Power Outside Mirror
TRUNK 10A Trunk Lid & Fuel Filler Door Switch, ICM Relay Box (Trunk Lid Relay)
PDM2 10A PDM, Smart Key Control Module, Start Stop Button Switch, FOB Holder
SAFETY POWER WINDOW RH 25A Passenger Safety Power Window Module
FOG LP RR 10A (Not Used)
S/HEATER 15A Driver/Passenger Seat Warmer Module
AMP 25A AMP (JBL)
SAFETY POWER WINDOW LH 25A Driver Safety Power Window Module

Engine compartment main fuse

Type 1

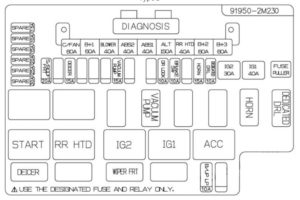

Hyundai Genesis Coupe - fuse box diagram - engine compartment - type 1 (variant 1)
Hyundai Genesis Coupe – fuse box diagram – engine compartment – type 1 (variant 1)

Type 2

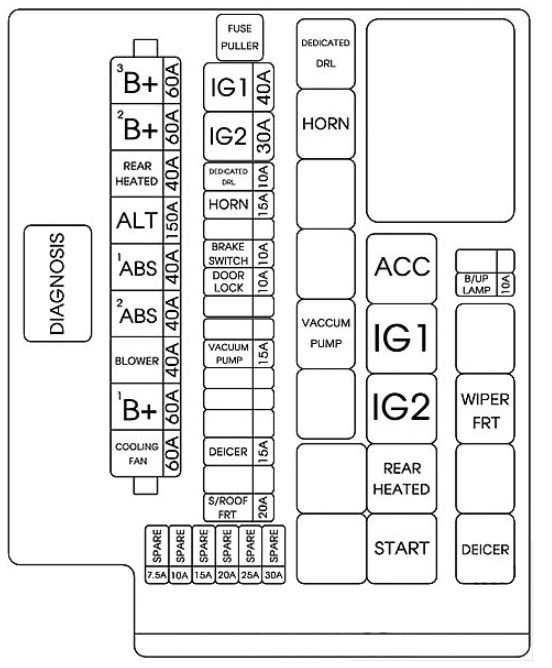

Hyundai Genesis Coupe - fuse box diagram - engine compartment - type 2 (variant 1)
Hyundai Genesis Coupe – fuse box diagram – engine compartment – type 2 (variant 1)
Description Fuse ratting [A] Protected component
MULTI FUSE
C/FAN 60A Cooling Fan (High) Relay, Cooling Fan (Low) Relay
B+1 60A Smart Junction Box ((Fuse : S/HEATER, AMP, SAFETY POWER WINDOW LH/RH), IPS 2, IPS Control Module)
BLOWER 40A Smart Junction Box (Blower Relay)
ABS2 40A Multipurpose Check Connector, ESC Module
ABS1 40A Multipurpose Check Connector, ESC Module
ALT 150A Alternator, Multi Fuse (ABS1, ABS2, BLOWER, B+1, C/FAN), Fuse (S/ROOF FRT, DEICER, VACUUM PUMP)
RR HTD 40A RR HTD Relay
B+2 60A Smart Junction Box ((Fuse : HAZARD, PDM1, MODULE5, STOP LP, TRUNK, PDM2), IPS 1, ARISU 2, IPS Control Module)
B+3 60A Smart Junction Box ((Fuse : AUDIO, DRV P/SEAT, ROOM LP, MEMORY1, MEMORY2), ARISU 1, IPS Control Module, Leak Current Autocut Device Switch, Leak Current Autocut Device Relay)
FUSE
IG2 30A Start Relay, IG2 Relay, Ignition Switch
IG1 40A IG1 Relay, ACC Relay, Ignition Switch
S/ROOF FRT 20A Sunroof Control Module
DEICER 15A Deicer Relay
VACUUM PUMP 15A Vacuum Pump Relay (G4KF A/T)
DR LOCK 10A Smart Junction Box (Door Lock Relay, Door Unlock Relay), ICM Relay Box (Two Turn Unlock Relay)
BRAKE SW 10A Stop Lamp Switch
HORN 15A Horn Relay
DEDICATED DRL 10A Dedicated DRL Relay
B/UP LP 10A M/T – Back-Up Lamp Switch
A/T – Rear Combination Lamp LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit

Engine compartment sub fuse panel

Type 1

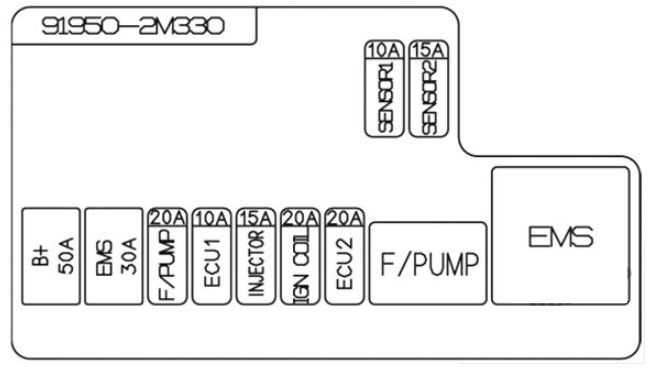

Hyundai Genesis Coupe - fuse box diagram - engine compartment sub fuse box - type 1 (variant 1)
Hyundai Genesis Coupe – fuse box diagram – engine compartment sub fuse box – type 1 (variant 1)

Type 2

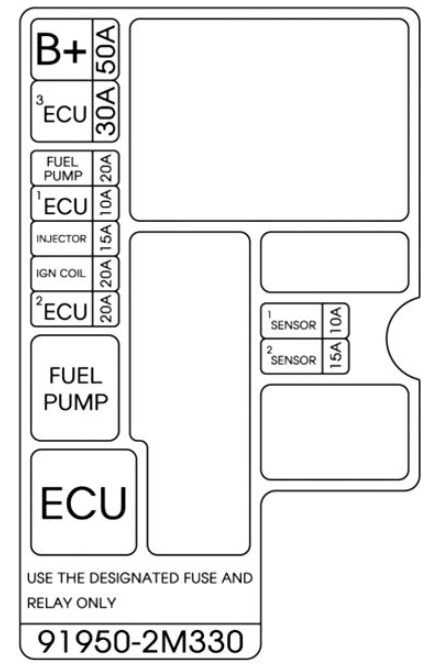

Hyundai Genesis Coupe - fuse box diagram - engine compartment sub fuse box - type 2 (variant 1)
Hyundai Genesis Coupe – fuse box diagram – engine compartment sub fuse box – type 2 (variant 1)
Description Fuse rating [A] Protected component
B+ 50A Fuse (EMS 30A, ECU1 10A, F/PUMP 20A)
EMS 30A Engine Control Relay
F/PUMP 20A F/Pump Relay
ECU 1 (G4KF) 10A ECM, TCM
ECU 1 (G6DJ) 10A ECM, TCM, Injector Drive Box
INJECTOR (G4KF) 15A F/Pump Relay, Injector #1/#2/#3/#4
INJECTOR (G6DJ) 15A F/Pump Relay, Fuel Pump Relay (Low), ECM
IGN COIL (G4KF) 20A Ignition Coil #1/#2/#3/#4, Condenser
IGN COIL (G6DJ) 20A Ignition Coil #1/#2/#3/#4/#5/#6, Condenser #1/#2
ECU 2 (G4KF) 20A ECM
ECU 2 (G6DJ) 20A Injector Drive Box
SENSOR 1 (G4KF) 10A Cooling Fan (High)/(Low) Relay, Oxygen Sensor (Up)/(Down)
SENSOR 1 (G6DJ) 10A Cooling Fan (High)/(Low) Relay, ECM, Oxygen Sensor #1/#2/#3/#4
SENSOR 2 (G4KF) 15A Camshaft Position Sensor #1/#2, RCV Control Solenoid Valve, Immobilizer Module, Canister Close Valve, Purge Control Solenoid Valve, Crankshaft Position Sensor, Oil Control Valve #1/#2
SENSOR 2 (G6DJ) 15A ECM, Oil Control Valve #1/#2/#3/#4, Purge Control Solenoid Valve, Immobilizer Module, Canister Close Valve

(Variant 2)

Instrument panel

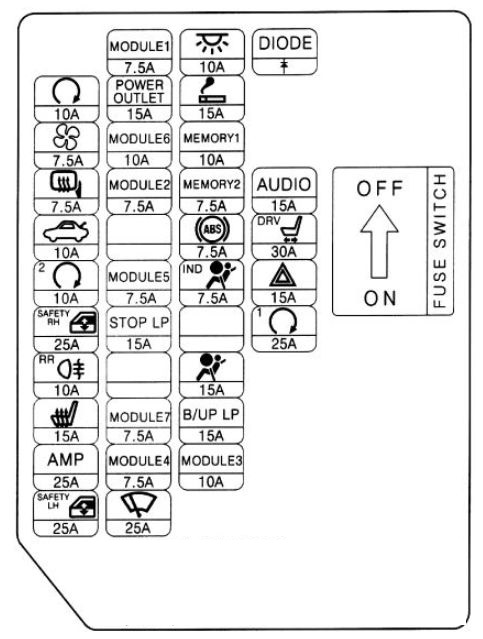

Hyundai Genesis Coupe - fuse box diagram - instrument (variant 2)
Hyundai Genesis Coupe – fuse box diagram – instrument (variant 2)
Description Symbol Fuse rating Protected component
AUDIO 15A Audio, Multi Gauge, Multi Monitor
DRV P/SEAT 30A Driver Seat Manual Switch, Driver Lumbar Support Switch
HAZARD 15A BCM
PDM1 25A PDM
ROOM LP 10A Driver/Passenger Door Lamp, Trunk Room Lamp Driver/Passenger Door Scuff Lamp, Vanity Lamp LH/RH Map Lamp
C/LIGHTER 15A Front Power Outlet
MEMORY1 10A BCM, Data Link Connector, Auto Light & Photo Sensor Ignition Key ILL. & Door Warning Switch, Instrument Cluster (IND. MICOM), A/C Control Module, Power Outside Mirror Switch
MEMORY2 7.5A RF Receiver
ABS 7.5A E/R Junction Box LH (Multipurpose Check Connector) ESC Module, ESC & PAS/Rear Lamp Switch, Steering Angle Sensor
A/BAG IND 7.5A Instrument Cluster (Air Bag IND.)
A/BAG 15A SRS Control Module
B/UP LP 15A Back-Up Lamp Switch, TCM, Transmission Range Switch
MODULE3 10A ECM, PDM, Smart Key Control Module, Injector Drive Box (G6DJ)
MODULE1 7.5A AMP, Audio,  Multi Monitor, Map Lamp, Power Outside Mirror Switch
POWER OUTLET 15A Console Power Outlet
MODULE6 10A BCM, PDM, Smart Key Control Module
MODULE2 7.5A IPS Control Module, Instrument Cluster (IND, MICOM), BCM, ATM Shift Lever IND., Multifunction Switch (Remote Control), Multi Gauge, Cruise Clutch Pedal Position Switch, Auto Head Lamp Leveling Device Unit, A/C Control Module, Driver/Passenger Seat Warmer Module, Stop Lamp Switch, Head Lamp Leveling Device Switch & Actuator LH/RH, Front Parking Assist Sensor LH/RH, Rear Parking Assist Sensor Side & Center LH/RH
MODULE5 7.5A Sport Mode Switch (A/T), Key Solenoid
STOP LP 15A Stop Signal Relay
MODULE7 7.5A Blower Relay, Sunroof Control Module, A/C Control Module, Cluster Ionizer (Auto A/C), Electro Chromic Mirror
MODULE4 7.5A BCM, PDM, IPS Control Module, Vacuum Switch E/R Junction Box LH (Vacuum Pump Relay), Head Lamp Washer Relay
WIPER FRT 25A MultiFunction Switch (Wiper), Front Wiper Motor E/R Junction Box LH (Wiper FRT Relay)
START 10A E/R Junction Box LH (Start Relay), Ignition Lock Switch, Transaxle Range Switch, ECM (G6DJ), B/Alarm Relay
BLOWER 7.5A A/C Control Module
HTD MIRR 7.5A A/C Control Module, Driver/Passenger Power Outside Mirror
TRUNK 10A Trunk Lid & Fuel Filler Door Switch, ICM Relay Box (Trunk Lid Relay)
PDM2 10A PDM, Smart Key Control Module, Start/Stop Button Switch, FOB Holder
SAFETY POWER WINDOW RH 25A Passenger Safety Power Window Module
FOG LP RR 10A ICM Relay Box (Rear Fog Lamp Relay)
S/HEATER 15A Driver/Passenger Seat Warmer Module
AMP 25A AMP
SAFETY POWER WINDOW LH 25A Driver Safety Power Window Module

Engine compartment main fuse

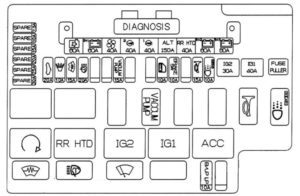

Hyundai Genesis Coupe - fuse box diagram - engine compartment - main fuse box (variant 2)
Hyundai Genesis Coupe – fuse box diagram – engine compartment – main fuse box (variant 2)
Description Symbol Fuse ratting [A] Protected component
MULTI FUSE
C/FAN 60A Cooling Fan (High) Relay, Cooling Fan (Low) Relay
B+1 60A Smart Junction Box ((Fuse : S/HEATER, AMP, SAFETY POWER WINDOW LH/RH), IPS 2, IPS Control Module)
BLOWER 40A Smart Junction Box (Blower Relay)
ABS2 40A Multipurpose Check Connector, ESC Module
ABS1 40A Multipurpose Check Connector, ESC Module
ALT 150A Alternator, MULTI FUSE (Fuse – F3/F2/F3/F4/F5, Fuse – F12/F13/F14/F15/F18
RR HTD 40A RR HTD Relay
B+2 60A Smart Junction Box (Fuse – F3/F4/F20/F29/F30, IPS 1, ARISU 2, IPS Control Module)
B+3 60A Smart Junction Box (Leak Current Autocut Device Switch, Leak Current Autocut Device Relay, Fuse – F1/F2/F5/F7/F8, ARISU 1, IPS Control Module)
FUSE
IG2 30A Start Relay, IG2 Relay, Ignition Switch
IG1 40A IG1 Relay, ACC Relay, Ignition Switch
S/ROOF FRT 20A Sunroof Control Module
B/ALARM 10 ICM Relay, ACC Relay. Ignition Switch
DEICER 15A Front Deicer Relay
VACUUM PUMP 15A Vacuum Pump Relay (G4KF A/T)
DR LOCK 10A Smart Junction Box (Door Lock Relay, Door Unlock Relay)
BRAKE SW 10A Stop Lamp Switch
HORN 15A Horn Relay
DEDICATED DRL 10A Dedicated DRL Relay
B/UP LP 10A M/T – Back-Up Lamp Switch
A/T – Rear Combination Lamp LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit

Engine compartment sub fuse panel

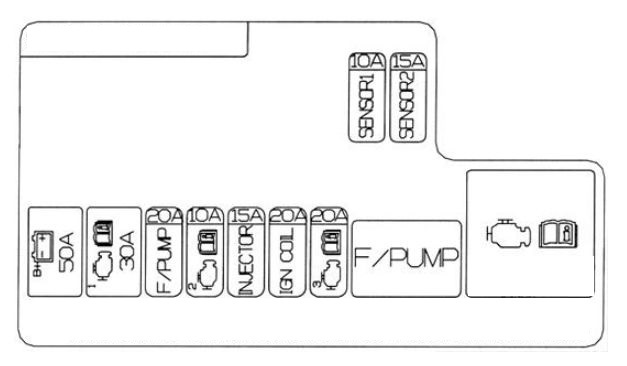

Hyundai Genesis Coupe - fuse box diagram - engine compartment - sub fuse box (variant 2)
Hyundai Genesis Coupe – fuse box diagram – engine compartment – sub fuse box (variant 2)
Description Symbol Fuse rating [A] Protected component
B+ 50A Fuse – F2/F3/F4
EMS 30A RLY.1 (Engine Control Relay)
F/PUMP 20A RLY.2 (Fuel Pump Relay
ECU 1 10A G4KF/G6DA – ECM, TCM
G6DJ – ECM, TCM, Injector Drive Box
INJECTOR 15A G4KF – RLY.2 (Fuel Pump Relay), Injector #1/#2/#3/#4
G6DA – RLY. 2 (Fuel Pump Relay), Injector #1/#2/#3/#4/#5/#6, ECM
G6DJ – RLY. 2 (Fuel Pump Relay), Fuel Pump Relay (Low), ECM
IGN COIL 20A G4KF – Ignition Coil #1/#2/#3/#4, Condenser
G6DA/G6DJ – Ignition Coil #1/#2/#3/#4/#5/#6, Condenser #1/#2
ECU 2 20A G4KF – ECM
G6DJ – Injector Drive Box
SENSOR 1 10A G4KF – Cooling Fan (High)/(Low) Relay, Oxygen Sensor (Up)/(Down)
G6DA – Cooling Fan (High)/(Low) Relay, ECM, Oxygen Sensor #1/#2/#3/#4
SENSOR 2 15A G4KF – Camshaft Position Sensor #1/#2, RCV Control Solenoid Valve, Immobilizer Module, Canister Close Valve, Purge Control Solenoid Valve, Crankshaft Position Sensor, Oil Control Valve #1/#2
15A G6DA/G6DJ – ECM, Oil Control Valve #1/#2/#3/#4, Purge Control Solenoid Valve, Immobilizer Module, Canister Close Valve

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
