Hyundai Elantra (2006) – fuse box diagram
Year of production: 2006

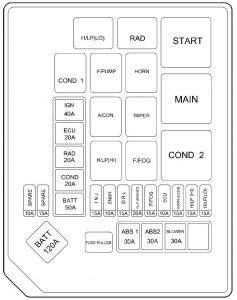

Engine compartment
(Gasoline Engine)
| Description | Fuse rating | Protected component | |
| FUSIBLE LINK | BATT | 120 | Generator |
| BATT | 50 | Fusible link (P/WDW), Tail lamp relay, Power connector | |
| COND | 20 | Condenser fan relay.1 | |
| RAD | 20 | Radiator fan relay | |
| ECU | 20 | Generator, Engine control relay, Fuel pump relay, PCM | |
| IGN | 40 | Ignition switch, Start relay | |
| ABS.1 | 30 | ABS control (Motor) | |
| ABS.2 | 30 | ABS control (Solenoid) | |
| BLOWER | 30 | Blower relay | |
| FUSE | INJ. | 15 | Injectors |
| SNSR | 10 | PCM, Heated oxygen sensor, SMATRA, Heater relay, Glow plug relay | |
| DRL | 15 | DRL control | |
| H/LP WASHER | 20 | Head lamp washer | |
| F/FOG | 15 | Front fog lamp relay | |
| ECU | 10 | Siren, PCM | |
| HORN & A/C | 15 | A/C relay, Horn relay | |
| H/LP (HI) | 15 | Head lamp (Hight) | |
| H/LP (LO) | 15 | Head lamp (Low) | |

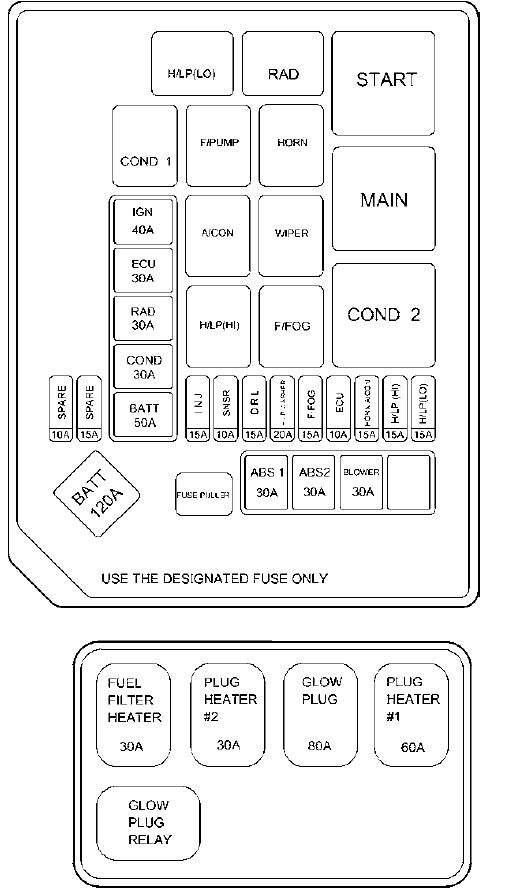

(Diesel Engine)
| Description | Fuse rating | Protected component | |
| FUSIBLE LINK | BATT | 120 | Generator |
| BATT | 50 | Fusible link (P/WDW), Tail lamp relay, Power connector | |
| COND | 20 | Condenser fan relay.1 | |
| RAD | 20 | Radiator fan relay | |
| ECU | 20 | Generator, Engine control relay, Fuel pump relay, PCM | |
| IGN | 40 | Ignition switch, Start relay | |
| ABS.1 | 30 | ABS control (Motor) | |
| ABS.2 | 30 | ABS control (Solenoid) | |
| BLOWER | 30 | Blower relay | |
| GLOW PLUG | 80 | Grow plug relay | |
| HEATER #1 | 60 | Heater relay #1 | |
| HEATER #2 | 30 | Heater relay #2 | |
| FUEL FILTER | 30 | Fuel filter relay | |
| FUSE | INJ. | 15 | Injectors |
| SNSR | 10 | PCM, Heated oxygen sensor, SMATRA, Heater relay, Glow plug relay | |
| DRL | 15 | DRL control | |
| H/LP WASHER | 20 | Head lamp washer | |
| F/FOG | 15 | Front fog lamp relay | |
| ECU | 10 | Siren, PCM | |
| HORN & A/C | 15 | A/C relay, Horn relay | |
| H/LP (HI) | 15 | Head lamp (Hight) | |
| H/LP (LO) | 15 | Head lamp (Low) | |
Inner Panel
| Description | Fuse rating | Protected component | |
| FUSE | T/SIG | 10 | Turn signal lamps, Back-up lamp |
| CLUSTER | 10 | Pre-excitation resistor, Instrument cluster (IND) | |
| A/BAG | 15 | SRS control | |
| HAZARD | 10 | Hazard relay, Hazard lamps | |
| A/C SW | 10 | A/C Control | |
| TAIL-RH | 10 | Short connector, Illumination lamps, Tail lamp (RH), Head lamp washer | |
| TAIL-LH | 10 | Tail lamp (LH), Exterior lamps | |
| START | 10 | B/Alarm relay | |
| AUDIO | 10 | Digital clock, Power outside mirror & mirror folding, Audio | |
| E C U | 10 | Cruise control, PCM, Vehicle speed sensor, Ignition coil | |
| A B S | 10 | ABS control | |
| A/BAG IND | 10 | Instrument cluster (Air bag IND) | |
| RR HTR | 30 | Defogger relay | |
| A M P | 20 | Power antenna | |
| S/ROOF | 15 | Power door lock control, Sunroof | |
| STOP | 15 | Stop lamps, Power window, Power outside mirror folding | |
| HTD MIR | 10 | Rear window & outside mirror defogger, A/C control | |
| C/LIGHT | 15 | Cigarette lighter, Power outlet | |
| RR FOG | 10 | Rear fog lamps | |
| I G N | 10 | Head lamp, Head lamp washer, Fuel filter heating | |
| R/WIPER | 15 | Rear wiper & washer | |
| F/WIPER | 20 | Front wiper & washer | |
| S/HTR | 20 | Seat warmer | |
| A/CON | 10 | Blower & A/C control, ETACM, Sunroof controller, Electronic chrome mirror | |
| ROOM LP | 15 | Door lamps, Instrument cluster, Data link connector, Multipurpose check connector, Room lamps, ETACM, Audio, Power connector | |
| FUSIBLE LINK | P/WINDOW | 30 | Power window |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
